Comfion Wireless-Security-System

For your home: EN grade 2-certified wireless security system for 160 devices, with smart home function & memory for security cameras. Easy to operate via app, hand-held transmitter and at the door.

Description

FUAA80000 ABUS Comfion is the wireless security system for your smart home.

Easy to install and intelligently networked with the home automation system. So that you feel safe and secure.

Reliable all-round protection
The Comfion security system reacts immediately in the event of an intrusion, emergency or water leakage. There is a choice of 160 devices such as control panel, motion detector, PIR camera and siren. Each component is easy and wireless to install. The securely encrypted radio reliably covers the house and garden. In the event of an emergency, an instant alarm is triggered - via a loud siren, in the app and to the connected security service.

Security in the smart home
Comfion uses sensors and actuators to control the home automation system. For lighting control, presence simulation or coming/leaving home scenarios.

Easy to operate: intuitive, convenient, secure
The system is operated simply via app, hand-held transmitter, stationary control panel or extra conveniently and securely at the front door via e-locking cylinder or face recognition.

Alarm control panel with video security

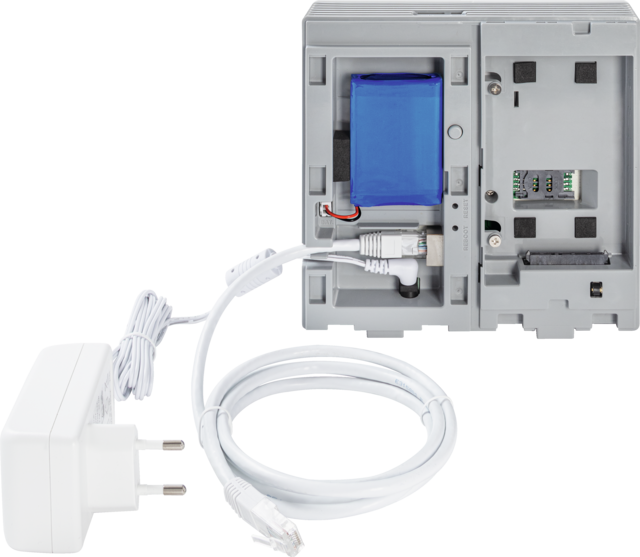

The compact box fits discreetly into the living room or a utility room. It only needs to be connected to the power supply and router. The integrated video memory manages and stores the recordings from four LAN cameras with alarm function and displays them in the app.

Installation by specialists
Your specialist dealer will set up the system professionally. Updates are simply installed on the control panel and components via remote access.

Product advantages

Radio security system for reliable burglary protection & all-round protection. Secures all rooms, windows & doors; alerts locally, via app and security service, creates a high level of living comfort via smart home automation
Very easy to operate for up to 50 people via app, remote control and control panel (wall panel); directly on the front door or garage door with e-locking cylinder (convenient and false alarm-proof), optionally with face recognition
Comprehensive protection and convenience with up to 160 wireless components: including control panel, alarm detector (PIR motion detector, opening detector), siren, smart sensors/actuators.
The alarm system and the smart home are always with you: Operate and control everything from anywhere via the smartphone app, receive video insights and instant alarms
100 smart home scenarios configurable: for example, light control / roller shutters for presence simulation, saving heating costs (motion detector), coming home sequence (system off, heating and home entertainment on)
Secure radio connection to the Comfion alarm control panel, with a long range of up to 1,000 m (free field) and high tamper/data protection as in online banking (AES128 encryption)
Reliable immediate alarm via push message, telephone call or direct connection to an emergency call control center (security service). With redundant communication (mobile radio/4G) for error-free, fail-safe alerting
Video surveillance with up to 4 security cameras (model types in the list of compatible devices). With video memory for event-controlled recording (motion detection) or 24/7 continuous recording
Compatible with ABUS access control / locking system wAppLoxx Pro and FaceXess (via Hybrid module)
Very safe and reliable thanks to EN50131 Grade-2 certification

Downloads

General downloads:

Declarations of conformity:

CE Declaration of Comformity (2024)

Certificates:

VSÖ Certificate

Additional information:

Compatibility List

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

AC power supply:	100 - 240 V
Battery - quantity:	1
Battery type:	Lithium Ion
Certifications:	EN 50131 Grade 2; VSÖ
Colour:	white
Communication/ Alarm:	Monitoring station, voice, SMS, email, push notification
Compatible with wAppLoxx:	Yes
Connections:	9 V DC-Jack, RJ45 (LAN), SATA-Connector, SIM-Card-Slot, MicroSD-Card-Slot
Decoding performance (local live view & playback):	4x 1080p @2048kbps
Depth:	61 mm
Dimensions:	165 x 165 x 61 mm
EN:	Level 2
Emergency power supply:	LiIon 7.4V 2500mAh
Environmental class:	II
Event memory:	Yes
Expandable (hybrid):	Yes
Expandable (radio):	Yes
External interface:	Yes
Gross weight:	0.596 kg
Height:	165 mm
Housing material:	ABS
Integrated siren:	No
Length:	61 mm
Max. Air humidity:	85 %
Max. Emergency power runtime:	12 h
Max. Max. number of detector groups:	160
Max. Operating temperature:	40 °C
Max. Receive range (free field):	1,000 m
Max. Transmit range (free field):	1,000 m
Min. operating temperature:	-10 °C
Modulation:	2FSK

Net weight:	0.75 kg
Network connection:	Ethernet
Network protocols:	HTTPS
Number of components:	160
Number of events:	10,000
Number of sabotage detector groups:	160
Number of users:	50
Number of wire zones:	0
Operating mode:	App
PSTI conformity given:	No
PSTI conformity needed:	Yes
Power supply unit:	9V / 2A
Product group:	Alarm panel
Programming 1:	via Web Server or App
Protocols:	NSL: SIA-DC09
Radio frequency:	868 MHz
Radio networked:	Yes
Radio power:	25 mW
Rechargeable battery:	Yes
Remote maintenance:	Yes
Security gradient:	2
Sub-areas/monitoring areas:	40
Tamper monitoring:	Yes
VdS class:	ohne
Video channels IP:	4
Video verification:	NVR (24/7 Recording - Harddrive required), event-related recording (Mirco SD card)
Voltage monitoring:	Yes
WEEE group:	09
standard:	EN 50131-1+A3:2020, EN 50131-3:2009, EN 50131-5-3:2017
width:	165 mm
