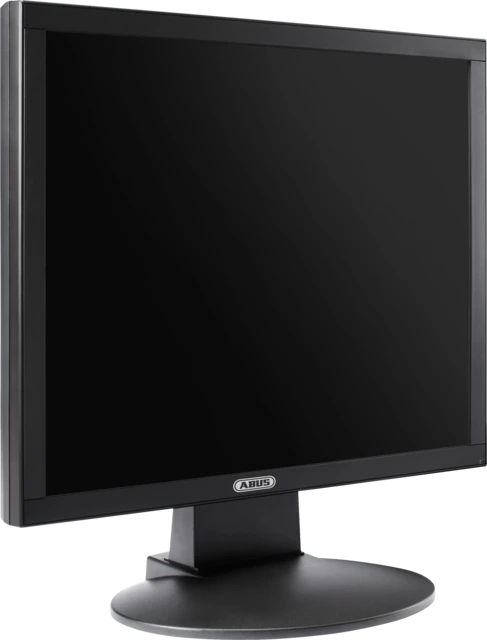

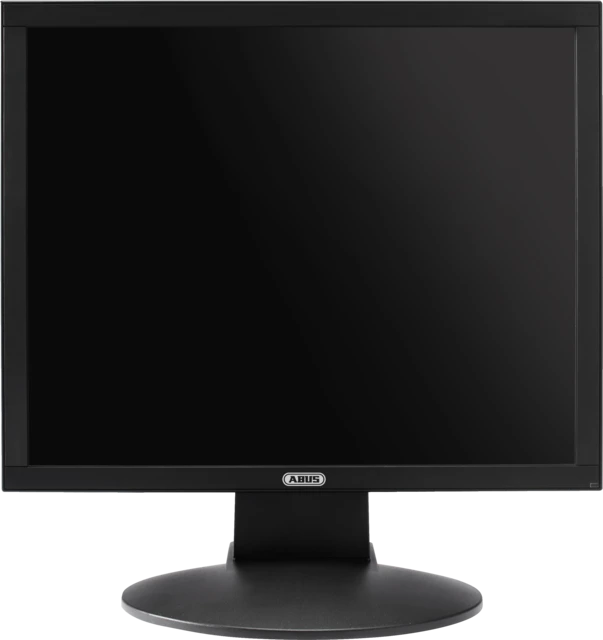

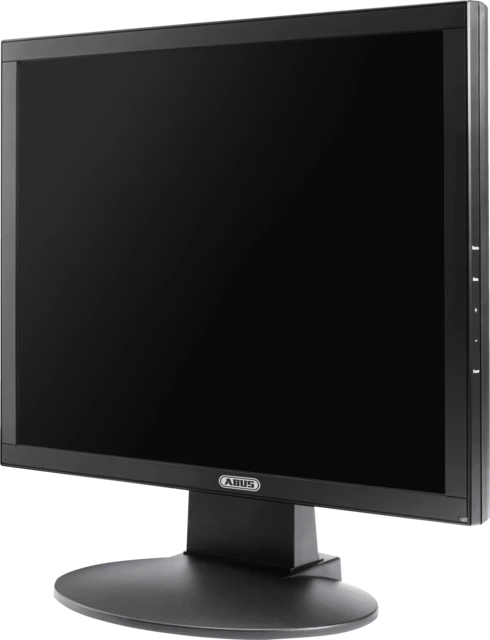

    17" LED Monitor

    Description


    Detailed surveillance pictures
    With its high resolution, outstanding picture fidelity and fast reaction time, the monitor produces accurate surveillance pictures. The LED backlighting ensures optimum contrast and an extremely realistic color display.
    Versatile connections
    The video inputs as HDMI, VGA and BNC offer flexibility for connecting the monitor to a recorder, live-cameras or a computer. Integrated loudspeaker and audio inputs also allow soundtracks to be played. Therefore the monitor is a cost-effective component for versatile surveillance and IT systems.
    Efficient uninterrupted 24/7 use
    Thanks to high-quality industry components, the monitor is suitable for uninterrupted 24/7 use. The energy-efficient LED display ensures very low power consumption.
    Easy installation
    VESA standard mounts can be used to fix it to a wall or ceiling. This makes installation fast and easy.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Resolution: 1280 × 1024 pixels
    • Fast response time (5 ms)
    • LED background illumination: Superior colour display and contrast
    • Graphical on-screen display (OSD)

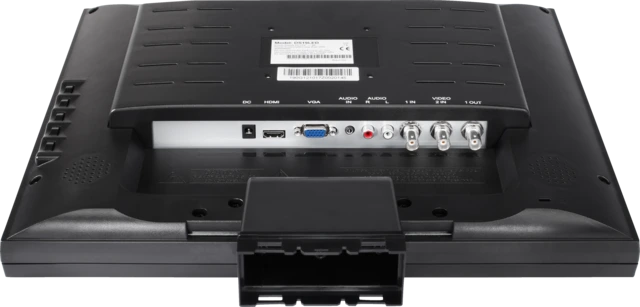

    • Connections: HDMI, VGA, 2 × BNC, cinch (audio), PC audio
    • Integrated loudspeakers
    • Low power consumption (LED technology)
    • For wall and ceiling installation (with VESA mount)

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Brightness: 250
    Color levels: 16.7
    Comb filter: 3D
    Connections: 1 x HDMI, 1 x VGA, 2 x BNC, 1 x audio (3.5 mm jack), 2 x chinch audio, 1 x BNC-Out
    Contrast ratio: 1.000:1
    Current consumption: 3,000 mA
    DC power supply: 12 V
    Dimensions: 372 x 310 x 50 mm
    Display surface: matte
    Frequency range: 30 − 80KHz (H) / 50 − 75Hz (V) GHz
    Gross weight: 4.6 kg
    Height: 310 mm
    Housing material: Plastic
    Image format: 4:3
    Input: 1 x HDMI, 1 x VGA, 2 x BNC, 1 x audio (3.5mm jack), 2 x chinch audio
    Loudspeaker: 2 x 2,5 W
    Max. Air humidity: 70 %
    Max. Operating temperature: 40 °C
    Min. operating temperature: 0 °C
    Monitor type: LED
    Net weight: 3.4 kg
    Power consumption: 25 W
    Product group: Accessories
    Response time: 5 ms
    Screen diagonal: 17 in
    Signal detection: Automatic
    Video output: 1 x BNC
    Video system: PAL / NTSC
    Viewing angle horizontal/vertical: 170° x 160°
    WEEE group: 09
    width: 372 mm
