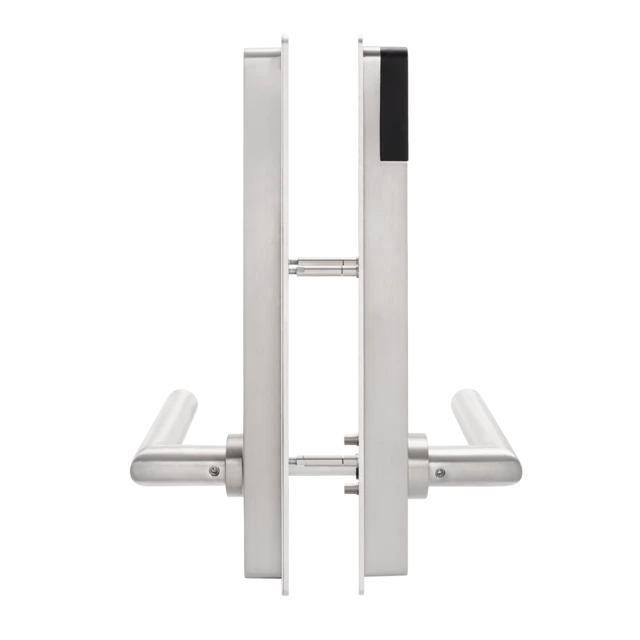

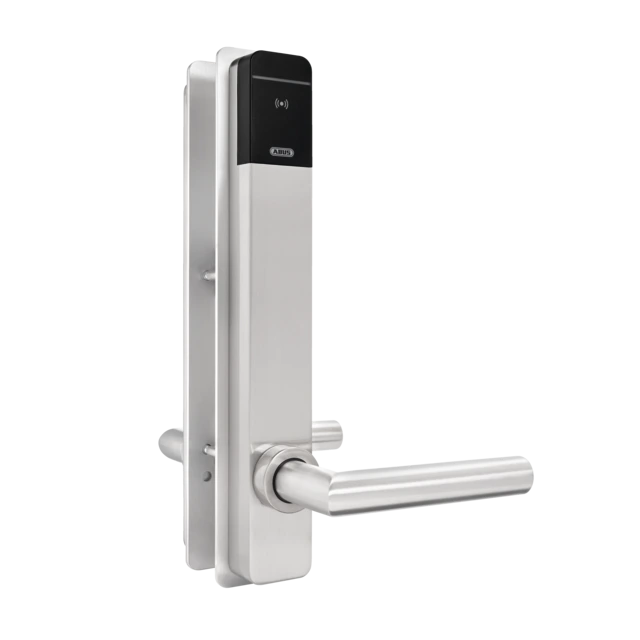

TECTIQ narrow frame fitting Scandinavia FIX-wide

TECTIQ narrow frame fitting Scandinavia FIX-wide

Mechatronic TECTIQ door fitting with RFID reader. The flexible all-rounder in a variety of designs, for all standard doors. Robust fitting in high-quality stainless steel look.

Description


With the digital TECTIQ locking system.

The electronic fitting with RFID reader wirelessly integrates the mortise lock of your door into the TECTIQ access control system. It grants people access according to their authorisation on the locking medium (transponder, card). Data exchange is encrypted and protected against read-out (MIFARE® DESFire®). The battery-operated door component requires no external cabling or wireless connection.

Validation/update
ABUS TECTIQ stores authorisations and events on the RFID locking medium (data-on-card) and exchanges the data wirelessly with the fitting and system. The status LED signals to users whether they are authorised to access the door.

Attractive design, top quality
The high-quality narrow-frame fitting in stainless steel look blends into any environment with its clear design language. There is a choice of 7 handle shapes, giving the fitting its individual character.

Wide range of variants
The robust narrow frame fitting is suitable for all standard external and internal doors, and with the fire-resistant option also for fire and smoke protection doors (T90). Incl. panic function for panic doors (only with mortise lock in accordance with EN 179). Each version has a steel base plate. For maximum security, e.g. on external doors, we recommend the security fitting version.

Made-to-measure installation: on timber, aluminium and steel doors
The door fitting is suitable for all door thicknesses from 32 to 121 mm, whether with Euro profile cylinder, round profile cylinder, oval cylinder or without cylinder. Renovation plates are available for the seamless replacement of old fittings.

Product advantages

  • Electronic TECTIQ fitting with adapter plate for flexible installation on all standard doors (timber, aluminium, steel) with round rosette holes, wirelessly networked with the TECTIQ system, ideal for fitting in new and existing buildings
  • TECTIQ fitting with RFID reader for contactless presentation of TECTIQ locking media. Secure, readout-protected RFID procedure via MIFARE® DESFire® with Bluetooth interface for TECTIQ Admin App
  • High-quality fitting (54 mm wide) in stainless steel look. The discreet, purist design line blends timelessly into the style of any building. Lever handles available in various shapes for even more individualisation
  • High level of convenience and secure, intuitive access using the usual door handle operation; fitting with RFID reader on the outside allows the door to be opened from the inside at any time (without locking medium)
  • TECTIQ fittings for complete building equipment on doors with or without mechanical locking cylinder, suitable for fire and smoke protection doors (T90) as well as escape and rescue routes (EN 179)
  • High-quality burglary protection with precisely fitting steel base plate for every fitting variant
  • Intuitive office mode: access by simply pressing the push-button in "permanently open" mode during office/opening hours according to the schedule; activation and deactivation of office mode with the first entry or exit by an authorised user
  • Adapter plate for the visually harmonious replacement of wide escutcheon fittings (54 mm) or round escutcheon sets as well as renovation plates to cover the drill holes or imprint marks of old fittings (e.g. on office doors)
  • Tested, certified quality: EN 16867 class 4, EN 179, abZ, EN 1634-1, 2
  • Colour of fitting body and lever handle: stainless steel; RFID reader unit: black

Downloads

General downloads:

Declarations of conformity:

Additional information:

Software:
Auxiliary programs:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Administration: AccessManager Software & Control Centre
Area of application: Electronically controlled outside handle, inside handle always engaged (no RFID reader on the inside), Suitable for doors with high frequency of use and heavy loads, Service class 4 in accordance with EN 16867
Backset: 25
Backup power supply: Yes, USB
Battery - runtime: At 20 °C (room temperature): up to 85,000 cycles or 3.5 years if not actuated or up to 3 years with approx. 10 accesses per day
Battery - type: 3 x Varta Ultra Lithium L92 Micro AAA
Battery compartment: In the interior fitting
Battery warning stages: 2 levels (optical/delayed access)
Bluetooth version: 5.1
Certifications: DIN EN 16867 Class 4 (in preparation), EN 179 (in preparation), IP54 (IP55 optional)
Colour: Black / Silver
Core pulling protection cover: No
Corrosion protection: Corrosion protection in accordance with DIN EN 1670 class 4 (salt spray test, 240 hours), class 4 in accordance with EN16867
Design: Narrow frame fitting with adapter plate
Dimensions: 289 x 54 x 27 mm
Distance measure: without profile cylinder perforation, Oval profile: 105 mm
Drill protection: No
Encryption: AES-128 bit
Extension steps: Graduated in 10 mm steps
Factory reset: Yes
Fatigue strength: > 200,000 cycles (in accordance with EN 16867, EN 179)
Fire protection class: T90 for steel, timber and tubular frame doors
Fixing points: Scandinavian wide shield bolting
Functional principle: Can be electronically coupled on the outside, coupled on the inside
Handle travel: Max: 45°, upward movement possible
Height: 301 mm
Humidity: Rel. humidity: 20% to 99%, non-condensing %
Inside depth without handle: 23 mm
Item abbreviation: TEC-B-SK-LA-FIX-W
Locking cylinder profile recess: Scandinavian oval profile cylinder
Material: Fitting: steel / lever handle: stainless steel / RFID reader cover: plastic
Max. blacklist number: 120
Max. operating temperature: 65 °C
Maximum door thickness: 121 mm
Min. operating temperature: -25 °C
Minimum door thickness: 32 mm
Number of events: 890
Opening time can be set: 6 sec. or 12 sec.
Outside depth with handle: 100 mm
Outside depth without handle: 28 mm
Programming: Admin app, system cards
Programming technology: BLE 2.4 GHz, RFID 13.56 MHz
RFID conformity: ETSI EN 300 330
RFID frequency: 13,56 MHz
RFID range: < 1 cm
RFID technology: MIFARE DESFire EV1, EV2, EV3
Real-time clock (RTC): Yes
Security features: Freely operable external handle to prevent tampering, engagement only when an authorised locking medium is presented
Selection of handle forms: L-shaped, mitre, U-shaped, double mitre, U-shaped offset, double mitre offset, ball lever handle
Signalling: Optical
Special functions: Yes, via software and app
Square side lengths: 8mm, 8.5mm, 9mm, 10mm
Transmission power: - 4 dBm
Transponder conformity: Passive transponder ISO 14443 A (MIFARE DESFire EVx)
Transponder encryption: AES 128-bit
Update capability: yes, via app & USB cable
Use on escape and rescue routes: Yes, in accordance with EN 179, see compatibility list (must be observed)
Width: 54 mm
Wireless conformity: ETSI EN 300 328
Wireless encryption: AES 128-bit
Wireless standard: Bluetooth Low Energie 2.4 GHz
