    WLX Pro Nordic Access Standard black

    Description

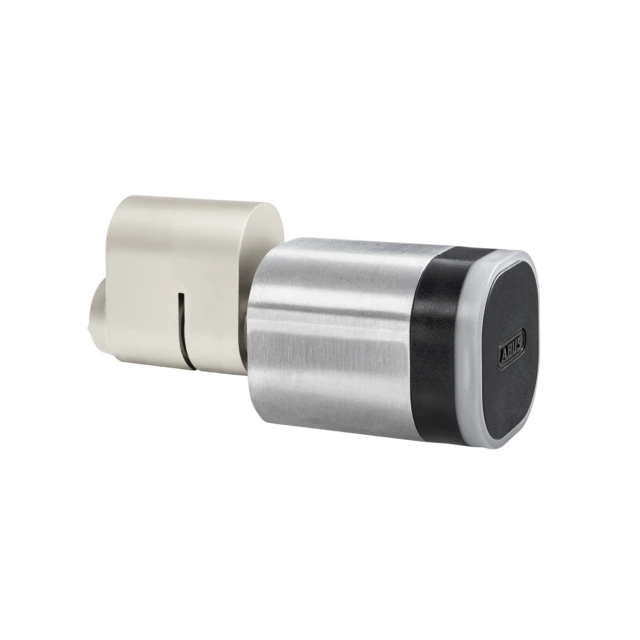

    wAppLoxx Pro digital locking cylinder The digital locking cylinder from ABUS enables convenient access to your building. It is also compatible for online use and can be operated via app. As well as the standard version, there is also the Rokoko version available The colour of the wAppLoxx Pro cylinder can be adjusted for any door and surface with its white, grey or black covers. High protection against manipulation with extra-reinforced drilling and pulling protection as well as a read-protected wireless connection highlight the security of the wAppLoxx Pro Cylinder. The weather-resistant finish with protection class IP67 makes it particularly robust.

    Product advantages

    • Electronic double knob cylinder with Mifare reader: Read protected wireless connection between transponder and cylinder (Mifare Desfire EV1 in secure mode)
    • Encrypted AES 128 bit data transfer between all components
    • Logging of cylinder operation
    • Weather-resistant as per IP 67
    • The status of the cylinder battery can be checked at any time via web or app
    • Activation/deactivation of connected alarm systems

    Downloads

    General downloads:

    Software:
    Auxiliary programs:

    Firmware:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Additional functions: Opening time can be set between 6 and 12 sec, remote access
    Alarm connection: No
    Battery type: Varta CR2 / CR17355 3V lithium battery
    Closing media: ABUS Mifare DESfire EV1
    Construction type of device: Half-cylinder
    Degree of protection IP Outdoor: 67
    Dimensions: Knob: L = 48 mm, Ø = 38 mm
    Drill protection: Standard
    Electronics: Access, Intrusion
    Encryption: AES 128-Bit
    Environmental conditions: Min./max. temperature: -25/+65, max. air humidity: 80%
    Language Manual: DE, EN, DK, SE
    Language OSD: DE, EN, DK, SE
    Language Packaging: DE, EN, DK, SE
    Material: Knob: stainless steel Reader: plastic
    Max. Max. number of locking media: 500 authorisations, 10 fallback transponders
    Net weight: 0.577 kg
    Number of cycles/battery: 45,000
    Opening time adjustable: Yes
    Panic door: No
    Protocol and time function: Yes
    Radio frequency: 868.3 MHz
    Radio range: Indoors: 30 m, outdoors: 100 m m
    Reader type: Outdoor Mifare reader
    Reading distance: < 1 cm
    Variants: oval profile
    signaling: Optical
