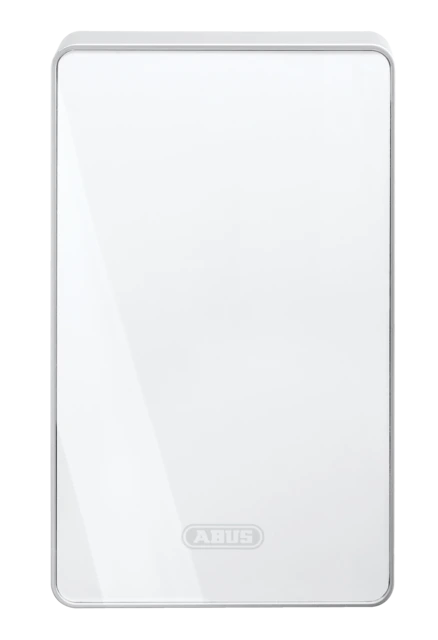

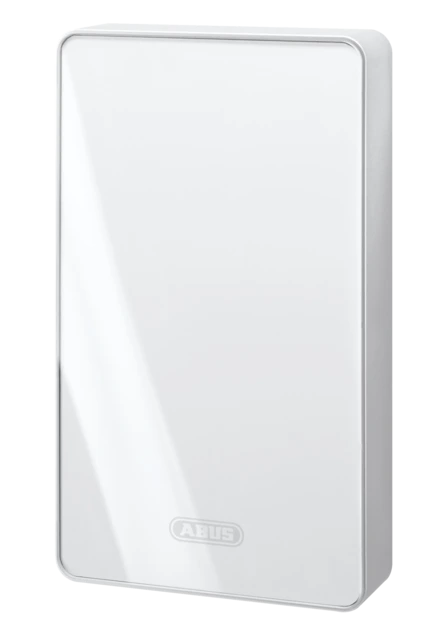

    Terxon LX 8-Zone Wired Extension

    Product advantages

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Wired Extension
    Wired Extension
    Specifications
    Connections: 5-wire bus
    Current consumption: 60 mA
    DC power supply: 12 V
    Dimensions: (WxHxD) 128x183x35 mm
    Height: 183 mm
    Housing material: ABS
    Length: 35 mm
    Max. Air humidity: 96 %
    Max. Operating temperature: 55 °C
    Mechanical protection: No
    Min. operating temperature: -10 °C
    Mounting type: Surface mounted
    Net weight: 0.4 kg
    Number of wire zones: 8
    PSTI conformity needed: No
    Power consumption: 60 W
    Switching outputs: 2 Transistor-outputs (1 positive/negative switching output each, 100mA)
    Tamper monitoring: Yes
    VdS class: without
    WEEE group: 09
    Zone closure: NC, DEOL (FSL)
    width: 128 mm
