Magtec

Magtec gives you strong protection against illegal key copying—thanks to integrated magnetic technology, standard SKG*** security features, extensive technical safeguards and patent and trademark protection.

All variants for Magtec

Description

Magtec SECURITY AT A VERY HIGH LEVEL

The independent SKG testing institute confirms that ABUS meets this requirement with the Magtec locking system with the highest security class SKG***.

The innovative magnetic technology in the cylinder and on the key offers you particularly effective protection against illegal key copying and manipulation of the locking system. This includes, for example, picking and forcible breaking open by drilling or pulling the cylinder core.

Technologies

Strong, multi-paracentric key made of nickel silver
Patent protection
Trademark protection: Unlimited
High-quality locking system with up to 32 spring-loaded tumblers and 4 tumbler levels
Copy protection: Magnetic technology in key and cylinder, with security card (original ABUS replacement keys and cylinders are only produced if the security card is presented)
Modular construction: standard for double, half and knob cylinders
Key related security: Class 6 according to DIN EN 1303
Attack resistance: Class D for Euro profile cylinders
Fire resistance: Class B, T90
Product certification: Certified according to DIN 18252 and DIN EN 1303, SKG*** as standard for Euro profile cylinders, other cylinders on request
Manufacturer certification: ISO 9001
Made in Germany
Open all doors with one key
Assign individual locking permissions

Operation and use

From apartment buildings to large building complexes

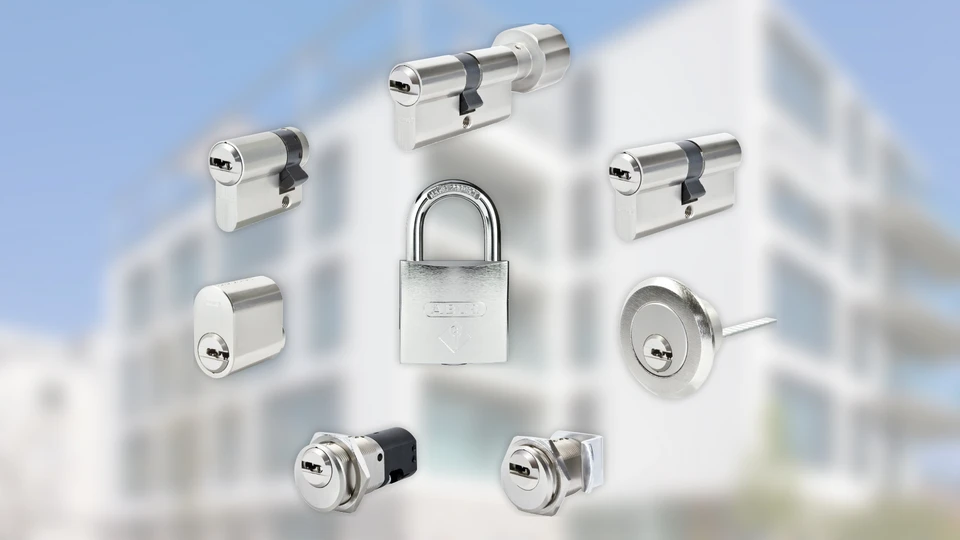

The right cylinder for every door: Variety of cylinder types to choose from
Individual/ keyed alike locking system
Small to very large, complex key systems

Variants

Cylinders available in various versions and lengths, tailored to your door

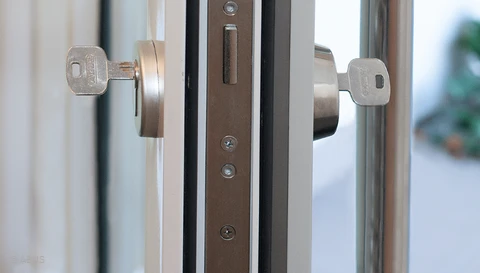

Optional special features: Emergency function, freewheel

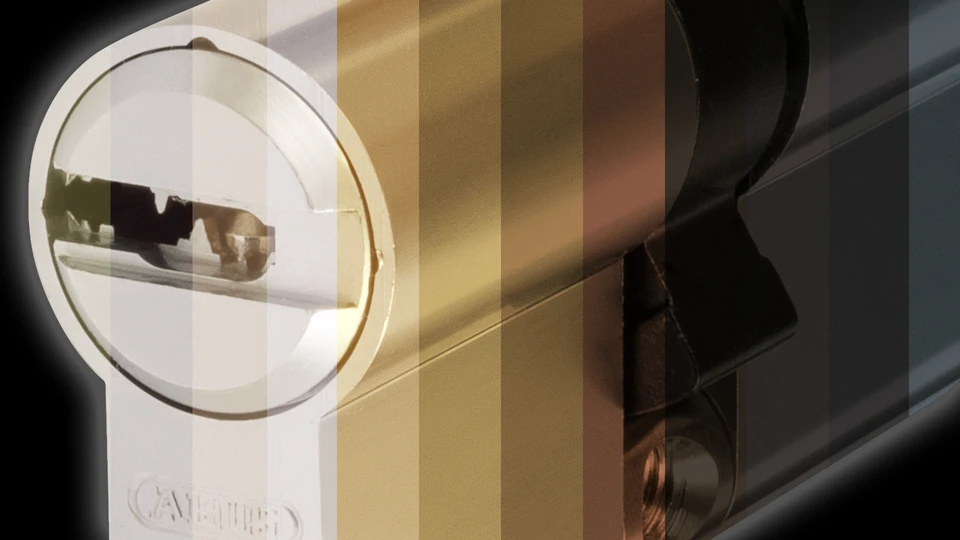

Cylinder colours: Nickel (standard)

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Magtec System – Powerful magnetisation

The magnet embedded in the Magtec key provides reliable protection against unauthorised key duplicates, which can be produced using 3D printers and smart key-copying machines.

To meet your particularly high security requirements, Magtec achieves the highest security level in each of the categories of locking security, durability, corrosion resistance, fire resistance and tamper resistance, in accordance with the European standard DIN EN 1303. Furthermore, SKG*** certification is proof of the highest level of security – certified by an independent testing institute.

Maximum flexibility
Are you moving house? Replacing your door? Has your organisational structure changed?

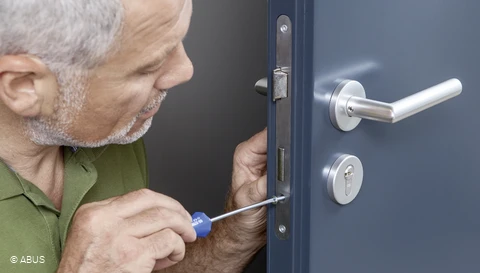

No problem! For maximum flexibility, the cylinder is fitted with modular ME technology. The cylinder’s length can be quickly adjusted to suit your new door at any time. This means you can respond quickly and flexibly to changes whenever they arise.

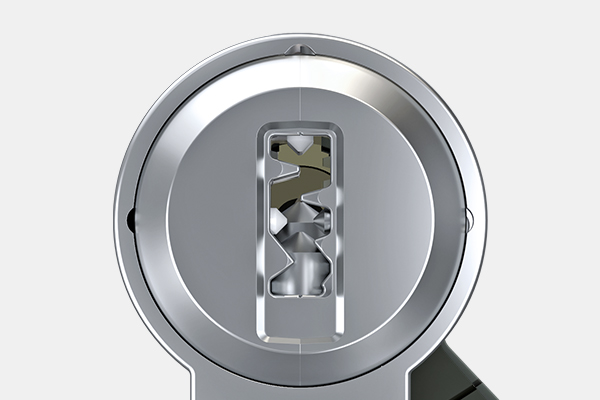

Magtec Conventional System © ABUS — The conventional Magtec locking system with vertical key insertion allows you to open the door with ease. The high-quality precision profile ensures that the key slides in smoothly.

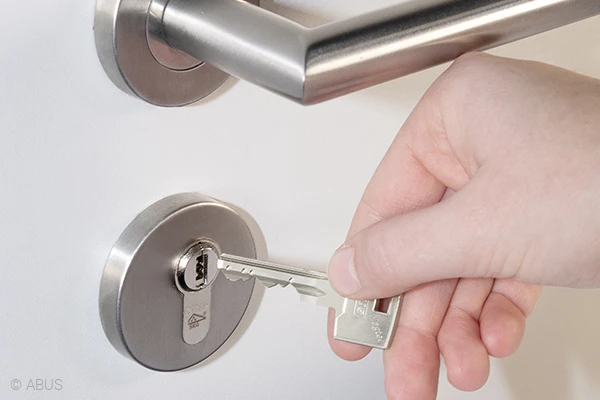

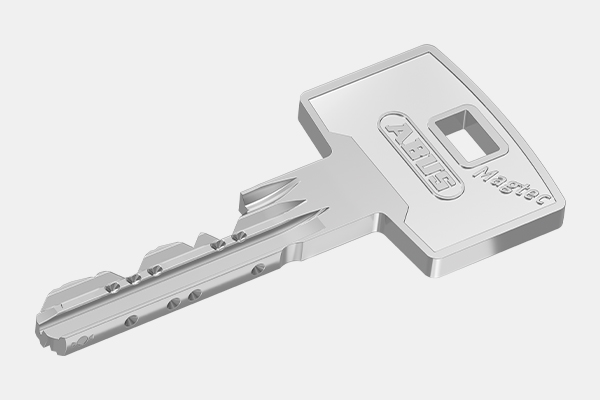

Magtec key © ABUS — This high-quality, sturdy nickel silver key is made from a wear-resistant material – so you can enjoy your locking system for many years to come.

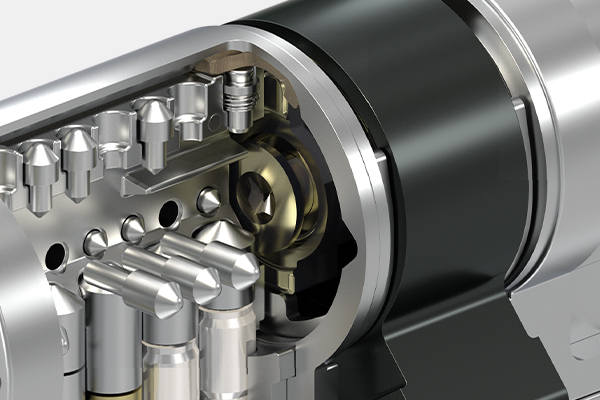

Magtec Magnet System © ABUS — The Magtec locking system is fitted with innovative magnetic technology in the cylinder and key.

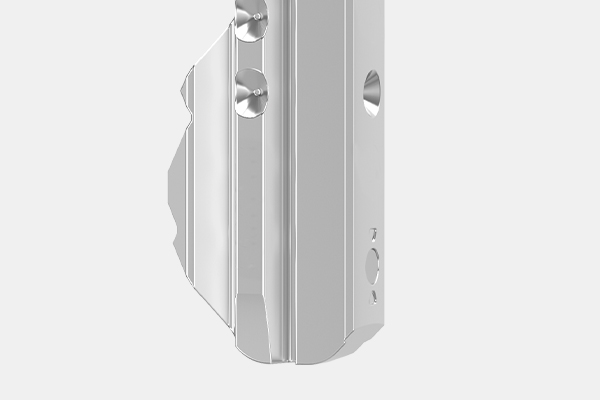

Magtec Magnet © ABUS — Thanks to its multi-dimensional authorisation check, it offers extremely effective protection against unauthorised key copies and tampering with the lock cylinder.

Targeted further development

Magtec combines innovative locking technology with clear progress throughout the product lifecycle – from raw materials and manufacturing, through to delivery to the customer and disposal at the end of the product’s life. Compared with a conventional ABUS Vitess profile cylinder, the functionally comparable ABUS Magtec profile cylinder generates 46 per cent** fewer greenhouse gas emissions, calculated in CO₂ equivalents, based on a ‘cradle-to-customer plus end-of-life’ assessment*. The difference is primarily attributable to the areas of raw materials and production. Furthermore, we do not use lead in the manufacture of Magtec cylinders.

*Emissions were taken into account across the following life cycle phases: extraction and pre-processing of raw materials and packaging, production, delivery of the product to the factory gates of ABUS specialist retail partners, as well as relevant disposal emissions from the product and packaging. The use phase was not included in the calculation.
**Calculation of emissions in CO₂ equivalents by ClimatePartner Deutschland GmbH for November and December 2022, based on the ‘Greenhouse Gas Protocol Product Life Cycle Accounting and Reporting Standard’ (GHG Protocol), reference unit: 1 unit in each case

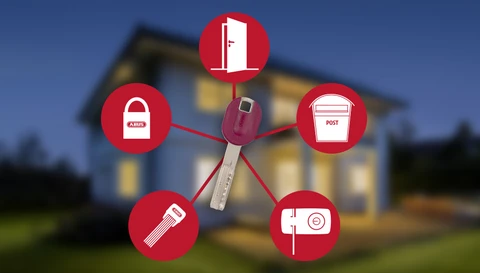

One key for everything
How about if you only needed one key for all locks with a lock cylinder?
So that you can use one and the same key for your front door, letterbox, cellar door or even the padlock on the garden shed and your garage? With the Magtec locking system, this is possible. And you can set up access permissions for each family member or other people who are to be given a key. For example, someone could be granted access to the garage and the house, but not to the cellar or the letterbox. These individual permissions can be set up for every user of your private locking systems.

Your locking system—as unique as you are

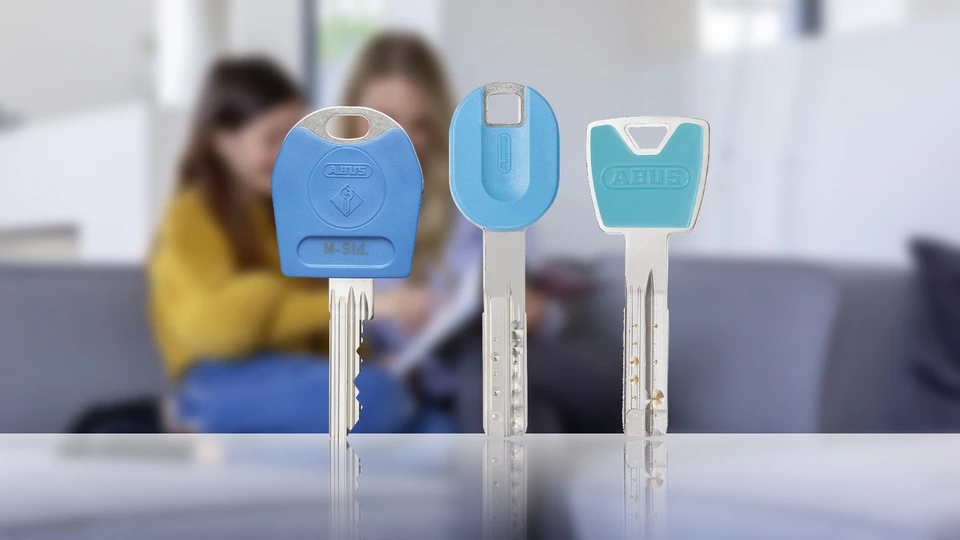

Thanks to our wide selection, we offer the right type of cylinder for every door. Colored key caps and a variety of cylinder colors provide you with plenty of options to highlight your individuality.
