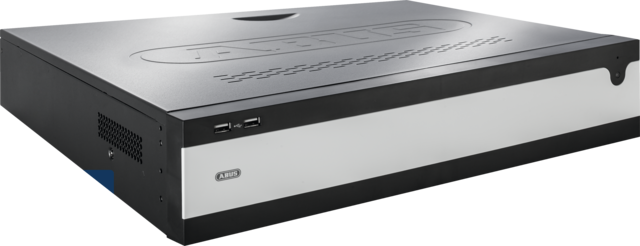

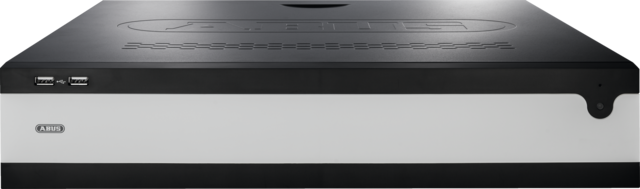

16-Channel Network Video Recorder (NVR)

Description

NVR10030 Stream, operate and record up to 16 cameras

The ABUS Network Video Recorder (NVR) reliably records video streams from up to 16 cameras. The ABUS NVRs stand out thanks to their simple and flexible operation and can be integrated into any project as a scalable recording solution.

Convenient operation
The cameras can be set up in the recorder in the blink of an eye thanks to the intuitive installation assistant, while the clear menu enables quick and easy programming. All ABUS cameras are deeply integrated via protocol and therefore offer full functionality.

Free choice when operating
The local menu in the live view is easy to navigate and structured in a self-explanatory way. The recorder can also be accessed via web browser, ABUS CMS software or app if preferred.

ABUS Link Station
The ABUS NVRs support the ABUS Link Station service. This allows easy set-up in the app; the NVR can be accessed from the Internet without cumbersome port forwarding. The service also offers a solution if the location only has an IPv6 Internet address.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

Live view and recording of up to 16 IP cameras @ 8 MPx (4K)
High-performance network data throughput with up to 416 MBit/s (160 MBit/s in / 256 MBit/s out)
Easy operation locally on the device, via web browser, ABUS CMS software or app
Local monitor output supports up to 8 MPx (4K) resolution
Manual or controlled recording according to time plan, motion detection, alarm input or VCA
Supports H.264 and H.265 (incl. dynamic GOP)
Recording on up to 4 SATA hard drives

Downloads

General downloads:

Additional information:

Software:
Auxiliary programs:

Installation software:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

AC voltage supply:	100 – 240 V
Alarm inputs (NO/NC):	16
Alarming:	Acoustic warning signal, on screen display signal, email, CMS, Alarm output
Analogue video channels:	0
Audio:	Line in: 1 x cinch (2.0 V s-s, 1000 Ω) – only for network transmission, Audio Out: 2 x cinch (600 Ω)
Compatible with ABUS Link Station:	Yes
Control:	USB mouse
Dimensions:	450 x 95 x 440 mm
HD-SDI video channels:	0
HD-TVI video channels:	0
Height:	95 mm
IP video channels:	16
Length:	440 mm
Loi Sarkozy compliant (only valid for FR):	Yes
Max. humidity:	90 %
Max. operating temperature:	55 °C
Min. operating temperature:	-10 °C
Mobile access:	ABUS Link Station Lite / Pro (Apple iOS & Android)
Monitor outputs:	1 x VGA, 1 x HDMI
Multi-monitor function:	Yes
Net weight:	1 kg
Network access:	2 x RJ45 10/100 /1000 Mbps
Network cameras:	ABUS network cameras, 3rd party (abus.com), RTSP
Network functions:	Live view, playback, data export, settings
Number of HDDs:	4
Number of channels:	16
Number of users:	31
OSD language:	English, German, French, Dutch, Danish
PSTI conformity given:	Yes

PSTI conformity required:	Yes
PTZ control:	Over the network, RS-485 interface, control panel interface
Performance decoding (local live view & playback):	4 x 6 MPx / 8 x 3MPx / 16 x 1080p / 32 x 720p
Power consumption:	20 W
Power consumption incl. HDD:	80 W
RAID:	No
RS-485 interface:	1
Recording duration at 1080p @ 2 Mbit/s:	74 hours/TB
Recording duration at 6 MPx @ 8 Mbit/s:	18 hours/TB
Recording modes:	Manual, time schedule, motion detection, alarm input, VCA
Recording resolution @ frame rate per camera:	12 MPx, 8 MPx, 6 MPx, 5 MPx, 4 MPx, 3 MPx, 2 MPx, 1080p, 720p, VGA @ 25 fps
Relay output:	4 (Max. load: 12 V DC/1 A)
Resolution HDMI output:	4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60 Hz, 1024x768/60 Hz
Resolution VGA output:	1920x1080p/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Search modes:	Event, date and time, Smart Search, VCA
Simultaneous network access:	128 camera connections
Software:	ABUS CMS software, integrated web server
Storage:	2 x USB 2.0, 1 x USB 3.0
Storage medium:	4 x S-ATA HDD (up to 16 TB per HDD)
Technology:	IP
Total frame rate (PAL):	400 fps
Total network throughput (input/output):	416 MBit/s (160 MBits/256 MBits)
Total video channels:	16
User levels:	3
Video compression:	H.264, H.265 (incl. dynamic GOP)
Views:	1 / 4 / 6 / 8 / 9 / 16
Watchdog hardware:	Yes
Width:	450 mm
