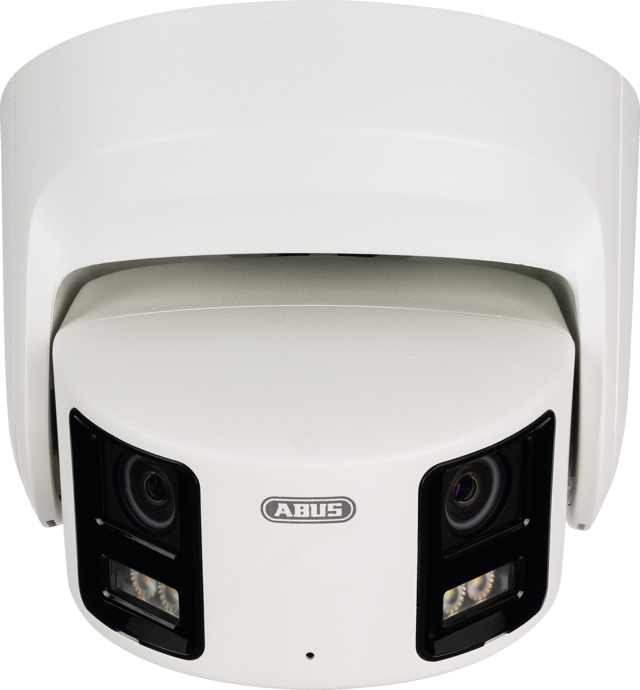

IP Panorama Dome 8 MPx (180°, WL)
IP Panorama Dome 8 MPx (180°, WL)
IP Panorama Dome 8 MPx (18IP Panorama Dome 8 MPx (180°, WL)0°, WL)

IP Panorama Dome 8 MPx (180°, WL)

Description



The multi-imager overview camera for your company premises: with 4K resolution, colour night vision and white light LEDs, the panoramic camera delivers crystal-clear images even in difficult lighting situations.

180° panoramic field of view
The surveillance camera composes a complete 180° panoramic image from the viewing angles of two camera modules. For the best overview without blind spots, also suitable for ultra widescreen display. The LAN camera can be swivelled downwards during installation to capture the area directly in front of/below the camera.

Colour night vision & contrast
See what is happening in total darkness in high-contrast colour images. Even overexposed areas (e.g. with backlighting) are optimally displayed thanks to WDR contrast equalisation.

Fully automatic: person/vehicle object detection
The security camera precisely distinguishes relevant objects (people, vehicles) from disruptive influences and reduces unnecessary motion alarms. For example, person detection triggers an alarm event (app, recorder, software, local alarm) and recording (memory card, ABUS recorder, VMS software).

Alarm camera
Visible, loud alarm with flashing light and warning tone. Perpetrators can also be addressed acoustically via loudspeaker.

ABUS Link Station app
Mobile access with live view, playback and push alarm.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 8 MPx resolution (5,120 x 1,440 @ 20 fps) to cover large surveillance areas (terrain, open-air surveillance)
  • 180° panoramic surveillance camera with dual lens technology (2 camera modules with 4 mm lens focal length each) for the optimal overview of large areas, squares and terrain with just one camera
  • Video stream with panoramic view (180° horizontal viewing angle) with the combined field of view of both lenses; alignment of the tilt angle (vertical) on the mount: view into the distance or tilted including the area in front of the camera
  • Detailed color images in the dark (24/7) thanks to full-color day/night technology; effectively amplifies minimal ambient light using a special lens and very light-sensitive image sensor
  • Discreet illumination of the field of view with white light LEDs (up to 30 m range) for accurate color images in total darkness (e.g. interior), as additional lighting for the image sensor (barely visible to the eye)
  • Object detection (human & vehicle) for high real alarm precision: Video content analysis with person and vehicle detection for automatic differentiation of people/vehicles from disruptive influences (branches, light fluctuations, etc.)
  • 130 dB WDR function for effective compensation of image contrasts, strong backlight, etc.
  • Alarm camera function: with active flashlight and acoustic alarm output (audio alarm/warning tone/voice announcement from integrated loudspeaker), the camera issues a local alarm or speaks to the perpetrator
  • Weatherproof IP67 housing & internal data storage (Micro SD card)
  • Supports H.264, H.265, MJPEG (including dynamic GOP); Power supply: 12 V DC & PoE (802.3af)

Downloads

General downloads:

Additional information:

Software:
Auxiliary programs:

Installation software:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

IP Panorama Dome 8 MPx (180°, WL)
IP Panorama Dome 8 MPx (180°, WL)
Specifications
Aperture at minimum illumination (colour): 1.0
Audio: Integrated: Microphone, Loudspeaker; Connectable: Microphone, Loudspeaker
Backlight compensation: WDR, BLC, HLC
Camera type: Dome
Compatible with: NVR, ABUS Link Station App, ABUS CMS
Compatible with ABUS Link Station: Yes
Compatible with Comfion: No
Compatible with Secoris: No
Compatible with Secvest: No
Compatible with wAppLoxx: No
Compatible with wAppLoxx Pro: No
Connections: 1 x RJ45, 1 x DC, 1 x Alarm-in, 1 x Alarm-out, 1 x Audio-in, 1 x Audio-out
DC voltage supply: 12 (+/-25 %) V
Design: Dome
Diameter: 155 mm
Digital zoom: Yes
Dimensions: (H x D) 155 x 155 mm mm
Dynamic range (WDR): 130 dB
Electronic shutter: 1/3 - 1/50000 s
Encryption: HTTPS, TLS 1.2
Focal length: 2 x 4 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20 fps
Gross weight: 1,9 kg
Height: 155 mm
Horizontal viewing angle: 180 °
Housing material: Metal
ICR day/night function: No
IP protection class: 67
Image sensor: 2 x 1/1,8" Progressive Scan CMOS
Installation type: Ceiling, Wall
LAN network access: RJ45 10M/100M self-adaptive
Length: 155 mm
Lens: Fixed
Loudspeaker: Yes
Max. resolution @ frame rate: 5120 x 1440 @ 20 fps
Microphone: Yes
Min. operating temperature: -30 °C
Minimum illumination (colour): 0,0005 lx
Motion detection: Yes
Net weight: 1,1 kg
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, SNMP
Noise reduction: 3D DNR
ONVIF: Profile G, S, T
OSD language: DE, UK, FR, NL, DK, IT
Other functions: Object Classification Person/Vehicle
PSTI conformity given: Yes
PSTI conformity required: Yes
Pixels (effective): 5120(H) x 1440(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 900 mA
Private zones: No
Relay output: 1
Resolution: 8 MP
Resolution modes: WDR off: Stream 1: 5120 x 1440 @ 20 fps, Stream 2: 1920 x 536 @ 20 fps, WDR on: Stream 1: 5120 x 1440 @ 12.5 fps, Stream 2: 1920 x 536 @ 12.5 fps
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: MS Edge, IE11, Google Chrome
Technology: IP
Vertical viewing angle: 44 °
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection, Region Entrance, Region Exit
Video compression: Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG
Video network bandwidth: 32 kBit/s - 16 MBit/s
White balance: AWB, Manual
White-light LEDs: 4
White-light range (up to): 30 m
Width: 155 mm
