    IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm
    IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm

    IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm

    The all-in-one alarm camera: with microphone, loudspeaker and flashing light for intercom to address perpetrators and alarm (warning tone, voice, flash). Also features intelligent object recognition.

    Description

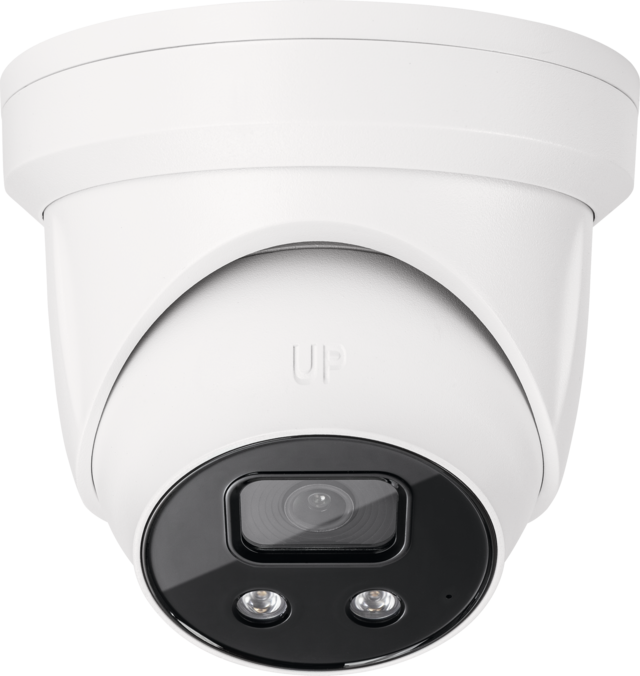

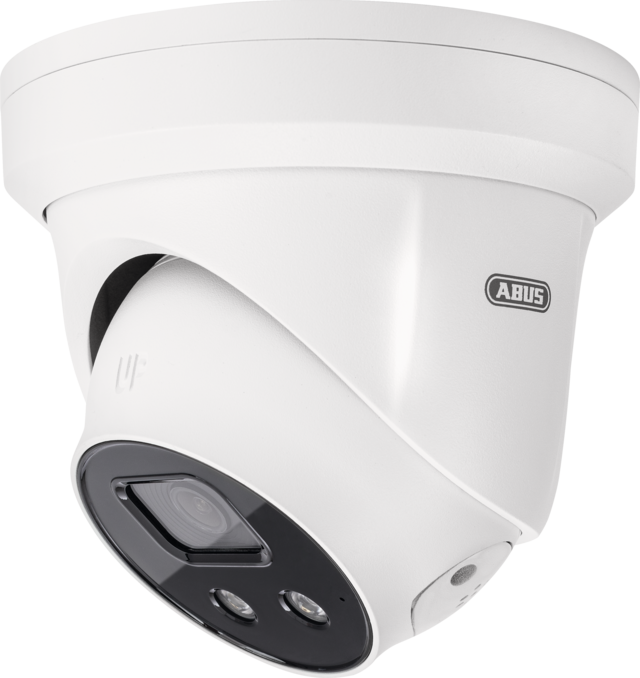

    The IP Dome is a discreet surveillance camera with 2WAY audio and alarm function.

    8 MPx (4K): detailed 24/7 monitoring
    The IP camera delivers ultra-high resolution images in 8 MPx (4K) resolution, IR LEDs ensure good image details during day and night. The IP67 housing is for outdoor use. Mobile app access possible at any time.

    Autom. Object recognition
    The security camera uses intelligent VCA object detection to distinguish relevant movements (human/vehicle) from disturbing influences (branches, light, etc.) - and minimises unnecessary motion alarms. This defines incidents (VCA events, e.g. line crossed) that trigger alarms.

    2WAY audio & alarm (siren, LED flash)
    For intercom, addressing offenders or acoustic alarm output (voice message, siren). The integrated flashing light turns the alarm camera into a signaller.

    Recording and compatibility
    Recordings are saved on microSD card, ABUS recorder or via VMS software. The dome is compatible with ABUS Secvest, Secoris, WLX Pro.

    Convenient start-up
    The IP dome is mounted on the ceiling or on the wall using a bracket (TVAC32520). Recommended: the installation box (TVAC32500). The free ABUS IP Installer software makes setup in the network faster.

    Notes: power supply unit not included, as power is supplied via PoE.
    The effective IR range will vary depending on the installation location.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • 2-way audio security camera with integrated microphone, loudspeaker and flashing light for intercom to address people and perpetrators, as well as acoustic and visual alarms
    • Integrated alarm input/output (I/O) for switching scenarios for effective alarm utilisation or optimisation of operating procedures (e.g. sales room)
    • Intelligent object detection and precise motion detection with fully automatic differentiation between people/vehicles and disturbances (branches, light, etc.)
    • 8 MPx (4K) resolution: 3,840 x 2,160 @ 25 fps for crisp, ultra-high resolution surveillance images and coverage of a large surveillance area
    • 2.8 mm fixed lens for a good overview (111° viewing angle) in a robust, weatherproof housing (IP67)
    • 120 dB WDR function to compensate for image contrasts, strong backlighting etc. for highly usable image results in all lighting situations
    • Ultra low-light performance for excellent image results in poorly lit environments
    • IR LEDs for clear images in the dark (up to 30 m range)
    • Strong image compression (Dyn. GOP, H.265, H.264, MJPEG) for low storage space requirements
    • microSD card slot for internal data storage; 12 V DC & PoE (802.3af)

    Downloads

    General downloads:

    Additional information:

    Software:
    Installation software:

    Auxiliary programs:

    Firmware:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm
    IP Spherical Dome 8 MPx (2.8 mm) with 2WAY Audio & Alarm
    Specifications
    Alarm input (NO/NC): 1
    Alarm output: 1
    Alarming: Flash, Loudspeaker, Email, App Push, FTP, CMS
    Aperture at minimum illumination (colour): F1.6
    Audio: Integrated: Microphone, Loudspeaker; Connectable: Microphone, Loudspeaker
    Backlight compensation: WDR, BLC, HLC
    Camera type: Dome
    Compatible with ABUS Link Station: Yes
    Compatible with Comfion: Yes
    Compatible with Secoris: Yes
    Compatible with Secvest: Yes
    Compatible with wAppLoxx: Yes
    Compatible with wAppLoxx Pro: Yes
    Connections: 1 x RJ45, 1 x DC, 1 x alarm input, 1 x alarm output, 1 x audio input, 1 x audio output (cable length 250 mm)
    DC voltage supply: 12 (+/-25 %) V
    Day/night switching: ICR/Color/B/W
    Design: Dome
    Digital zoom: Yes
    Dimensions: (LxBxH) 139x139x128 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/3 - 1/100000 s
    Encryption: HTTPS, TLS 1.1/1.2
    Focal length: 2,8 mm
    Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
    Functions: Scene Change Detection, Region of Interest
    Gross weight: 1,1 kg
    Height: 128 mm
    Horizontal viewing angle: 110 °
    Housing material: Metal
    ICR day/night function: Yes
    IP protection class: 67
    IR LEDs: Yes
    IR range (up to): 30 m
    Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart-Event mode)
    Image sensor: 1/1,8" Progressive Scan CMOS
    Installation type: Ceiling, Wall
    LAN network access: RJ45 10M/100M self-adaptive
    Language of instructions: DE, UK, FR, NL, DK, IT
    Length: 139 mm
    Lens: Fix
    Loudspeaker: Yes
    Max. humidity: 95 %
    Max. operating temperature: 60 °C
    Max. resolution @ frame rate: 3840 x 2160 @ 30 fps
    Microphone: Yes
    Min. operating temperature: -25 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (colour): 0,003 lx
    Motion detection: Yes
    Net weight: 0,85 kg
    Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, IGMP, Bonjour, PPPoE, SNMP
    Noise reduction: 3D DNR
    Number of IR LEDs: 1
    Number of streams: 3
    Number of users: 32
    OSD language: DE, UK, FR, NL, DK, IT
    Other functions: Object Classification Person/Vehicle
    PSTI conformity given: Yes
    PSTI conformity required: Yes
    Pixels (effective): 3840(H) x 2160(V) pixel
    PoE standard: IEEE 802.3af
    Power consumption: 800 mA
    Private zones: 4
    Relay output: 1
    Resolution: 8 MP
    Resolution modes: Stream 1: 3840 x 2160 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1920 x 1080 @ 10 fps (only in surveillance mode)
    Storage medium: microSD card, 256 GB (opt.)
    Supported browsers: MS Edge, IE11, Mozilla Firefox, Google Chrome
    Technology: IP
    Vertical viewing angle: 59 °
    Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection, Region Entrance, Region Exit
    Video compression: Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265 (only in surveillance mode)
    Video network bandwidth: 32 kBit/s - 16 MBit/s
    White balance: AWB, Manual
    White-light LEDs: 1
    Width: 139 mm
