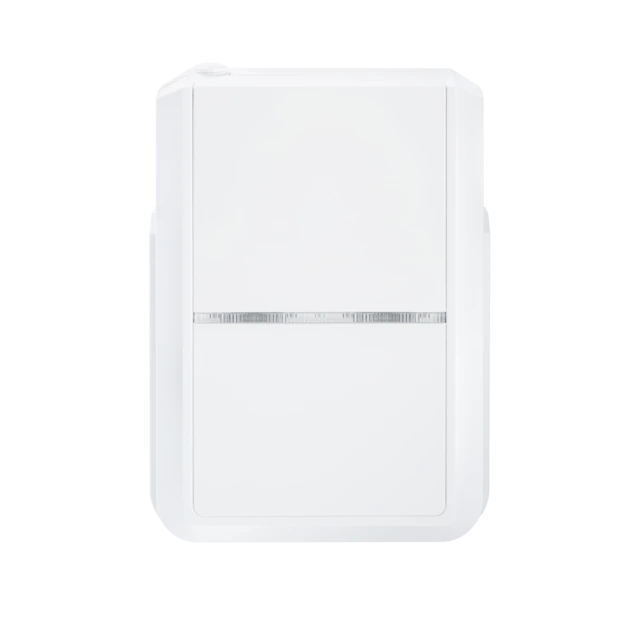

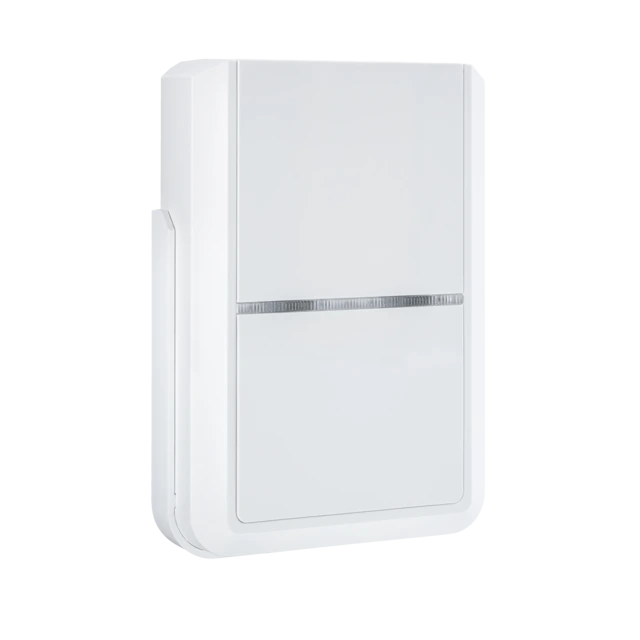

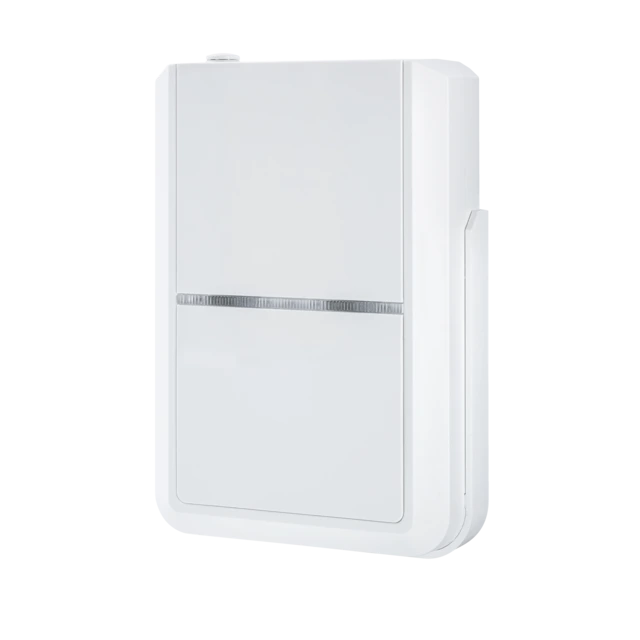

Comfion Wireless-Hybrid-Module

The hybrid module extends the Comfion security system with wire components and other solutions. In the event of a power failure, the emergency power supply ensures functionality for up to 24 hours.

Description

FUMO80000 Integrate existing wired components into the Comfion security system

Wire and radio for an integrated system
If there is already a wired security solution or home automation system in the house, these components can be combined with the radio-operated Comfion modules to form an integrated security system – via the Comfion hybrid module.

24-hour emergency power supply
The hybrid module – and thus the communication between the wired and wireless components – also works in the event of a power failure: for up to 24 hours thanks to the hybrid module's battery operation.

Home automation and access control

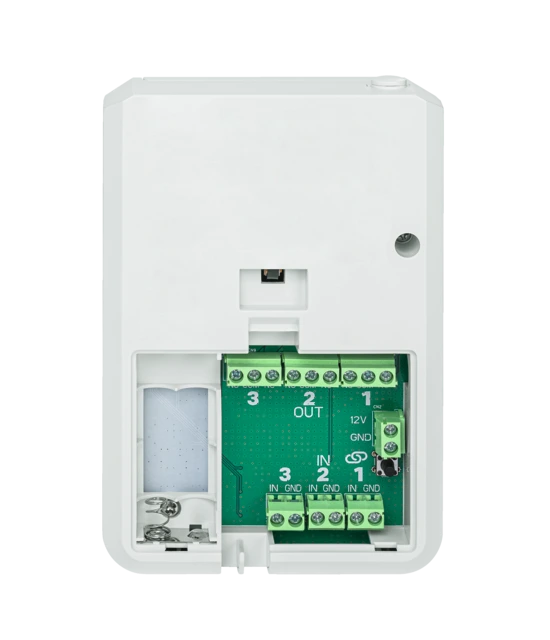

Various actuators and sensors for home automation can be connected to the Comfion hybrid module. There are 3 inputs and 3 outputs for this. The wAppLoxx Pro access control system can also be integrated, including pre-configuration.

Product advantages

Hybrid module for connecting wired devices and integrating them into the Comfion security system
In the event of a power failure, the hybrid module's battery operation ensures functionality – for up to 24 hours.
3 outputs and 3 inputs for various home automation actuators and sensors
Option to integrate the wAppLoxx Pro access control system with pre-configuration
Tamper protection via integrated wall tear-off contact
Installation by a specialist company
Secure radio connection to the Comfion alarm control panel, with a long range of up to 1,000 m (free field) and high tamper/data protection as in online banking (AES128 encryption)
Power supply primarily via mains adapter and secondarily via battery operation (24-hour battery life)

Downloads

General downloads:

Declarations of conformity:

CE Declaration of Comformity

Additional information:

Wiring Diagram WLX Pro

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Backup power supply:	Yes
Battery - quantity:	4
Battery - type:	LR03, AAA, Alcaline
Certifications:	conform according to EN 50131-1
Compatible with:	Comfion
Connections:	12V DC Terminal
Detector group termination:	3
Dimensions:	100 x 142 x 35 mm
Display:	LED
EN:	Level 2
Environmental class:	II
Gross weight:	0,26 kg
Height:	142 mm
Housing material:	Plastic
Inputs:	3 (NC/NO) 0/12V
Length:	35 mm
Max. backup power supply duration:	24 h
Max. humidity:	85 %

Max. operating temperature:	40 °C
Max. receiving range (free field):	1.000 m
Max. transmission range (free field):	1.000 m
Min. operating temperature:	-10 °C
Modulation:	2FSK
Net weight:	0,214 kg
Outputs:	3 Relay outputs (NC/COM/NO)
PSTI conformity required:	No
Programming:	Comfion App
Radio frequency:	868 MHz
Radio power:	25 mW
Sabotage monitoring:	Yes
Security level:	2
Switching outputs:	3
Voltage monitoring:	Yes
Width:	100 mm
