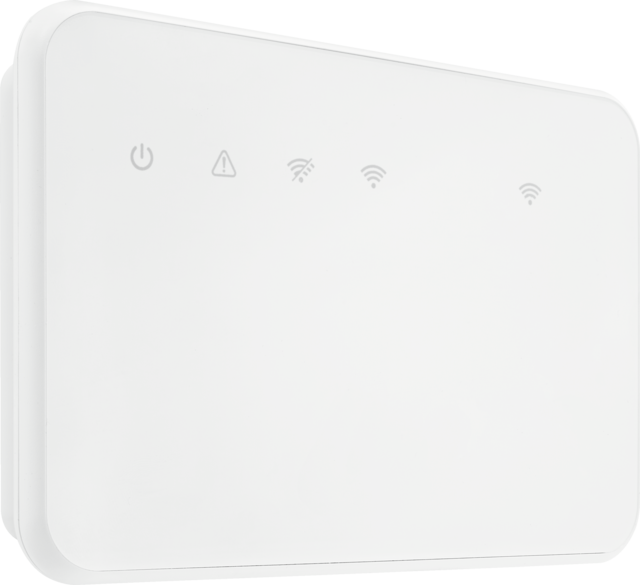

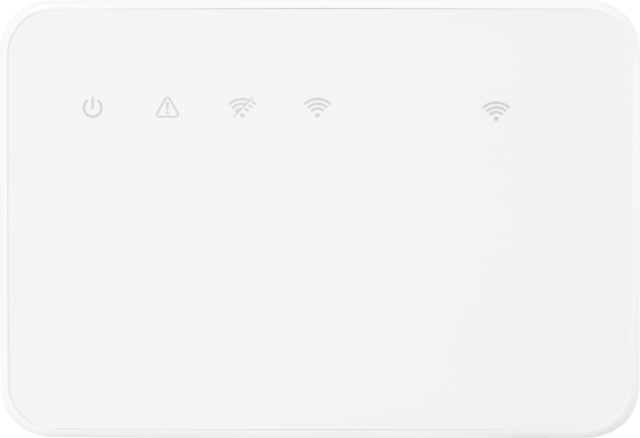

    Comfion Wireless-Repeater
    Comfion Wireless-Repeater
    Comfion Wireless-Repeater

    Comfion Wireless-Repeater

    The radio repeater amplifies the radio signal of the Comfion security system where the building structure interferes. Up to ten wireless components are amplified.

    Description



    Effectively amplify radio signals
    In some houses or apartments, the building is structured in such a way that radio signals are impaired. With the Comfion radio repeater, the radio signals of up to ten system components can be effectively amplified.

    Connecting repeaters in series
    Even in particularly large or angled buildings, sufficiently strong radio signals can be transmitted: Two radio repeaters are used in series for this purpose. For a range of up to 2,600 meters (measured in free field).

    12V power supply – emergency power buffered
    The Comfion radio repeater is powered by a 12V power supply unit. Convenient: In the event of a power failure, the repeater has an emergency power buffer so that it can continue to work for a while.

    Comfion Wireless-Repeater
    Awards & Partners
    https://c1.abus.com/asc-pim-assets-01/derivates/11/262/230223-EN50131-Grad-2_logos.jpg
    https://c1.abus.com/asc-pim-assets-01/derivates/11/262/230223-EN50131-Grad-2_logos.jpg
    The VSÖ certificate is granted by the Austrian Association of Security Corporations. This neutral, committee-based association`s certificate confirms the high security standard of alarm and video products.
    The VSÖ certificate is granted by the Austrian Association of Security Corporations. This neutral, committee-based association`s certificate confirms the high security standard of alarm and video products.
    Awards & Partners

    Product advantages

    • Radio repeater that amplifies the radio signal where the building structure interferes
    • The repeater amplifies the radio signal of up to ten wireless components
    • Up to two repeaters can be used in series – for an even greater range of up to 2,600 m (free field)
    • Secure radio connection to the Comfion alarm control panel with long range. Strong tamper protection as in online banking (AES128 encryption)
    • Power supply via a 12 V power supply unit and emergency power buffer in the event of a power failure
    • Very safe and reliable thanks to EN50131 Grade-2 certification

    Downloads

    General downloads:

    Declarations of conformity:

    Certificates:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Comfion Wireless-Repeater
    Comfion Wireless-Repeater
    Specifications
    Battery - GRS type: LiPo Battery
    Battery - quantity: 1
    Battery - type: Battery-pack (LiPo) 7.4V / 1,700mAh
    Certifications: EN 50131 Grade 2; VSÖ
    Compatible with: Comfion
    Connections: 12V DC Terminal
    DC voltage supply: 12 V
    Dimensions: 190 x 130 x 31 mm
    Display: LED
    EN: Level 2
    Environmental class: II
    Gross weight: 0,325 kg
    Height: 31 mm
    Housing material: Plastic
    Length: 130 mm
    Max. backup power supply duration: 12 h
    Max. humidity: 85 %
    Max. operating temperature: 45 °C
    Max. receiving range (free field): 1.000 m
    Max. transmission range (free field): 1.000 m
    Min. operating temperature: -10 °C
    Modulation: 2FSK
    Net weight: 0,325 kg
    Programming: Comfion App
    Protection class IK: 6
    Radio frequency: 868 MHz
    Radio power: 25 mW
    Sabotage monitoring: Yes
    Security level: 2
    Voltage monitoring: Yes
    Width: 190 mm
