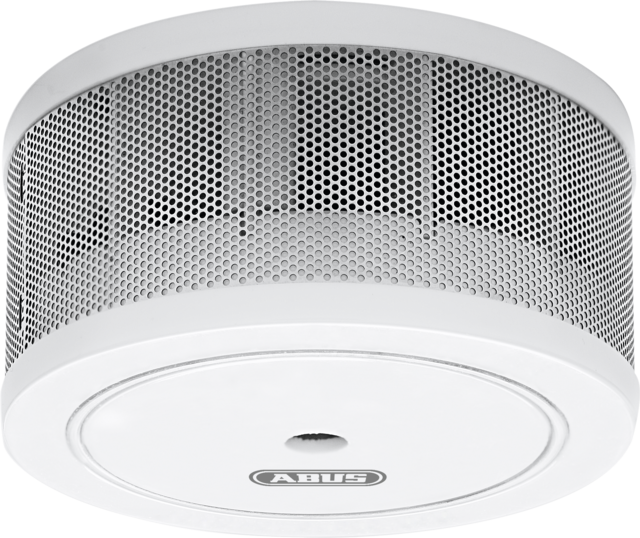

    Mini Smoke Alarm Detector
    Mini Smoke Alarm Detector

    Mini Smoke Alarm Detector 10 years

    Mini Smoke Alarm Detector 10 years Set of 3

    Description


    Over 500 people in Germany die every year as a result of a fire, 95% of them from toxic smoke.
    As the sense of smell also sleeps at night, most people only wake up when it is too late: losing their orientation in the thick smoke, hindering their ability to reach safety in time. It only takes three inhalations of the toxic fumes to cause loss of consciousness, which is swiftly followed by death. The majority of fires are not caused by negligence: technical faults, such as cable fires, are among the most common causes, and can occur at any time without warning. The 10-year mini smoke alarm was awarded the top rating of "Good" (2.2) in the Stiftung Warentest magazine smoke alarm test (issue 1/2018). The photoelectric alarm is also characterised by its very compact design. It detects the smallest smoke particles and warns residents of a developing fire early and effectively with a loud alarm. The detection range is up to 40 m² and is limited to the room in which it is installed. Unwanted alarms (e.g. caused by dust or steam) can be muted simply and easily by pressing the large test button. A permanently installed 3 V lithium battery guarantees reliable operation and a long service life. Proper function should be checked regularly by pressing the test button. If the alarm is not working properly or the battery is low, it will indicate this acoustically and visually.

    Mini Smoke Alarm Detector

    Product advantages

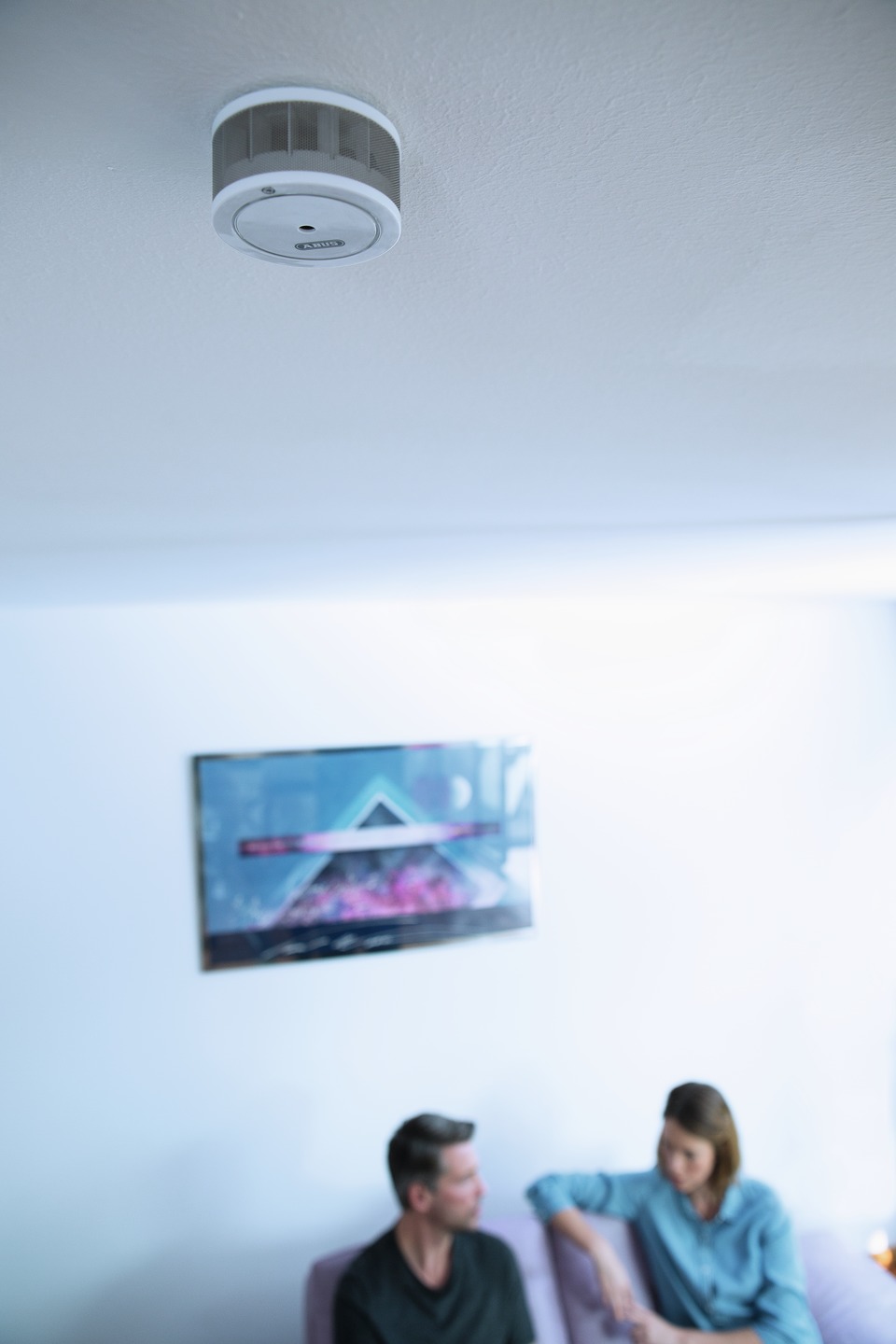

    • Recommended installation locations: bedrooms, living rooms, children's rooms and hallways

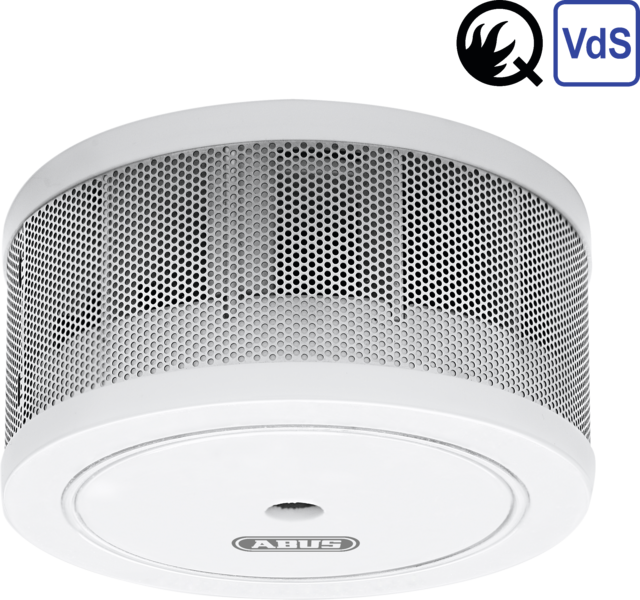

    • Q certified quality (vfdb 14/01)
    • 10-year battery life – integrated low battery warning
    • 3 V lithium battery, permanently installed
    • Reliable warning against potentially fatal smoke inhalation risk
    • Large test button for manual self-testing and test alarms
    • Compact and attractive design

    Downloads

    General downloads:

    Declarations of conformity:

    Certificates:

    Additional information:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Mini Smoke Alarm Detector
    Mini Smoke Alarm Detector
    Mini Smoke Alarm Detector
    Mini Smoke Alarm Detector
    Mini Smoke Alarm Detector
    Mini Smoke Alarm Detector
    Specifications
    Battery - max. battery life: 10 a
    Battery - permanently installed: Yes
    Battery - quantity: 1
    Battery type: 3 V lithium (built-in)
    Certifications: EN 14604; vfdb 14/01; VDS; Q
    Colour: white
    Current consumption: 70 mA
    Current consumption standby: 0.004 mA
    DC power supply: 3 V
    Detection area of detector (m2): 40 m²
    Detection method: Photoelectric reflection
    Diameter: 70 mm
    Dimensions: 33x70 mm
    Display type: LED
    Height: 33 mm
    Housing material: ABS
    Max. Air humidity: 90 %
    Max. Operating temperature: 40 °C
    Min. operating temperature: 0 °C
    Mounting location: Ceiling
    Net weight: 0.078 kg
    PSTI conformity needed: No
    Radio networked: No
    Sensor type: Photodiode
    Sound pressure: 85 dB
    Standalone: Yes
    Status display: Ja
    VdS recognized: Yes
    Voltage monitoring: Yes
    standard: EN 14604:2005 + AC:2008; vfdb 14/01:2010-05; VDS3131:2010-05; Q
    width: 70 mm
