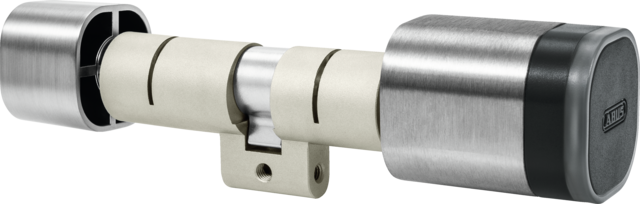

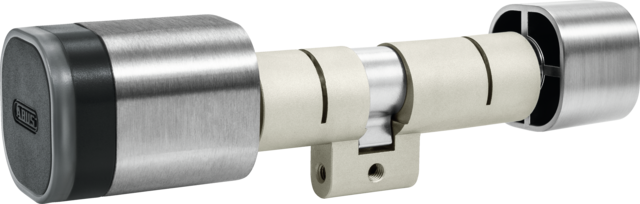

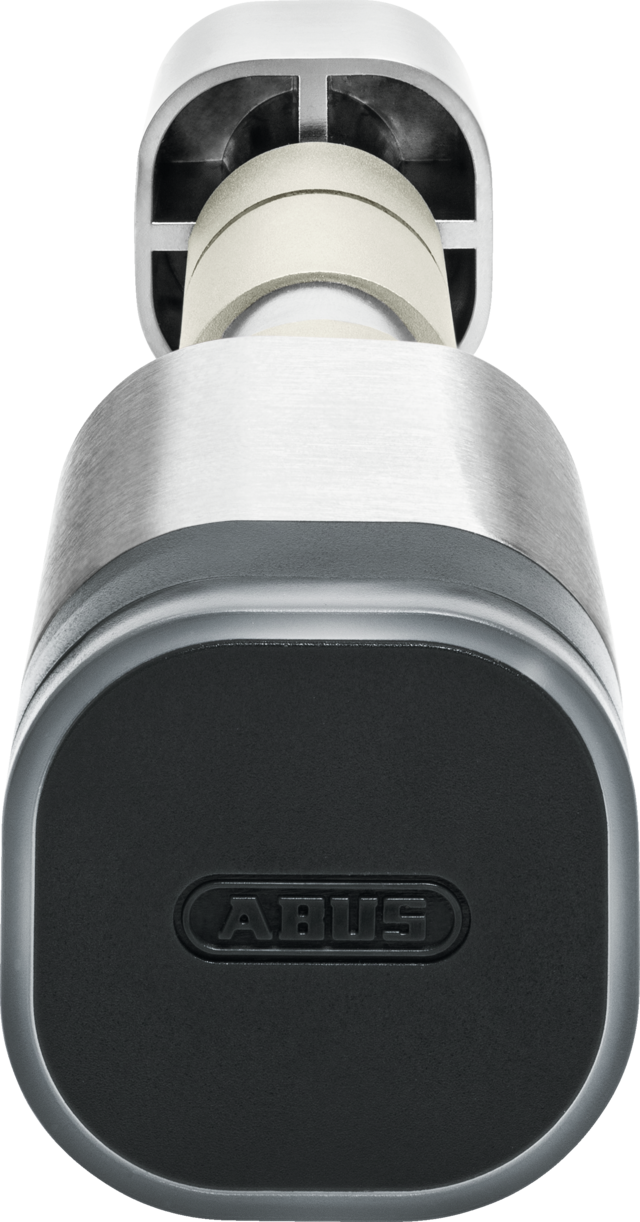

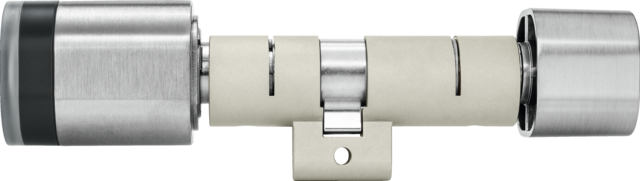

TECTIQ double knob cylinder, reader outside CH

Electronic TECTIQ round profile double knob cylinder with RFID reader. The all-rounder in a variety of designs and lengths. Ideal for interior doors and for replacing mechanical profile cylinders.

Description

TEC-Z-CH-LA SIMPLE. ACCESS. ORGANISATION.

With the digital TECTIQ locking system.

The electronic TECTIQ locking cylinder with RFID reader grants people access on the locking medium (transponder, card) according to their permission level. Data exchange is encrypted and protected against readout (MIFARE® DESFire®). The battery-operated door component requires no external cabling or radio connection.

Validation/update
ABUS TECTIQ stores permissions and events on the RFID locking medium (Data-on-Card) and exchanges data wirelessly with the cylinder or the system. The optical illuminated ring signals to users whether they are authorised to access the system.

Elegant design, top quality
With its clear design and knob caps (RFID reader unit) in black or grey, the robust, high-quality cylinder with IP67 and stainless steel look is suitable for any door and surface.

Custom cylinder length
The double knob cylinder is suitable for exterior and interior doors with door leaves 32.5 to 57.5 mm thick on each side. Can be ordered in fixed lengths in 5 mm increments to adjust length to individual conditions.

Wide range of variants
Available in different versions: with reader on the outside or on both sides (e.g. for connecting doors), as a double knob, half cylinder or padlock.

Product advantages

Electronic TECTIQ double knob cylinder (Switzerland round) for secure, simple and flexible installation on almost all doors (solid leaf, profile frame, timber, aluminium, steel, plastic)
High-quality cylinder (RFID reader outside) with stainless steel outside knob and continuous stainless steel look, in a discreet, purist design line; highly weather-resistant in the standard version (IP67)
TECTIQ cylinder with RFID reader for secure, readout-protected Data exchange with TECTIQ locking media (MIFARE® DESFire®); with free-running exterior knob: no access without authentication
The cylinder can be programmed via Bluetooth with the TECTIQ Admin app and, for example, receive a new time or the latest firmware update
Elegant design in different Design variants to match the style of your building thanks to different colours and knobs
Replace the cylinder instead of the fitting: convert a mechanical to an electronic cylinder at a favourable price and integrate the door into the TECTIQ locking system (simple cylinder replacement using a screw)
Tested, certified quality: EN 15684 and fire protection T30

Downloads

General downloads:

Declarations of conformity:

CE Declaration of Comformity (Nein)

Additional information:

Dimensioned Drawing

Software:
Auxiliary programs:

Firmware:

Firmware (V 04.06)

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Air humidity:	20-99 % non-condensing according to EN 15684 class 4
Areas of application:	Interior and exterior doors, tubular frame doors etc.
Article abbreviation:	TEC-Z-CH-LA
Article program:	TECTIQ
Battery - runtime:	At 20 °C (room temperature): up to 60,000 cycles or 3.5 years if not actuated h
Battery compartment:	In outer knob
Battery type:	VARTA Lithium battery 3V CR2/CR15H270/6206
Battery warning levels:	2 levels
Bluetooth version:	5.1
Certifications:	EN 15684:2020 1-6-B-4-x-D-3-A/D
Colour:	Outer knob: brushed stainless steel black or grey / Inner knob: brushed stainless steel / Cylinder body: brushed stainless steel
Construction type of device:	Double knob cylinder
Corrosion protection:	According to EN 1670 class 3/EN 15684 class 4
Cylinder profiles:	Swiss round
Dimensions:	External knob: L = 48 mm, Ø = 38 mm, internal knob: L = 27 mm, Ø = 33 mm
Drill protection:	Security (EN 15684 Ziffer 8 Klasse D)
Emergency power supply:	Yes, Micro USB
Extension steps:	5 mm
Factory reset:	Yes
Fatigue strength:	> 200.000 cycles (EN 15684:2020 class 6)
Internal knob variants:	Square / Slim
Management:	TECTIQ Access Manager
Material:	Outer cap: stainless steel, plastic / Inner knob: stainless steel / Cylinder body: brass
Max. External length:	57.5 mm
Max. Internal length:	57.5 mm
Max. Number of blacklists:	120
Max. Operating temperature:	65 °C
Memory type:	Ring memory: 890 events

Min. external length:	32.5 mm
Min. indoor length:	32.5 mm
Min. operating temperature:	-25 °C
Net weight:	0.558 kg
Opening time adjustable:	Yes (6/12 Sec)
Outside knob variants:	Square / Round
Power supply:	Rechargeable battery
Programming technology:	RFID (13.56 MHz) / Bluetooth (2.4 GHz)
Protection class IP:	67
RFID frequency:	13.56 MHz
RFID range:	≤ 1 cm
RFID technology:	MIFARE® DESFire® EV1, EV2, EV3
Radio conformity:	ETSI EN 300 328
Radio encryption:	AES 128-Bit
Radio networked:	Yes
Radio standard:	Bluetooth Low Energy 2,4 GHz
Real-time clock (RTC):	Yes
Security features:	Freely rotating outside knob to prevent unauthorized access, engagement only when an authorised locking medium is presented, predetermined breaking point on outside knob, drilling protection
Special functions:	Office Mode
Special lengths:	Yes, on request
Transmission power:	-4 dBm
Transponder conformity:	Passive-Transponder ISO 14443 A (MIFARE® DESFire®)
Transponder encryption:	AES 128-Bit
Update capability:	Yes (USB Updater Cable / Admin App)
WEEE group:	09
backset:	≥ 30 (round knob)/≥ 35 (square knob) mm
signaling:	Visual
