TECTIQ Reader unit indoor IP44 black

Reads locking media and transmits the permission information to the control unit in encrypted form. Validates and updates the permissions on locking media depending on the control unit.

Description

TTWL10044S

SIMPLE. ACCESS. ORGANISATION. WITH THE DIGITAL TECTIQ LOCKING SYSTEM.

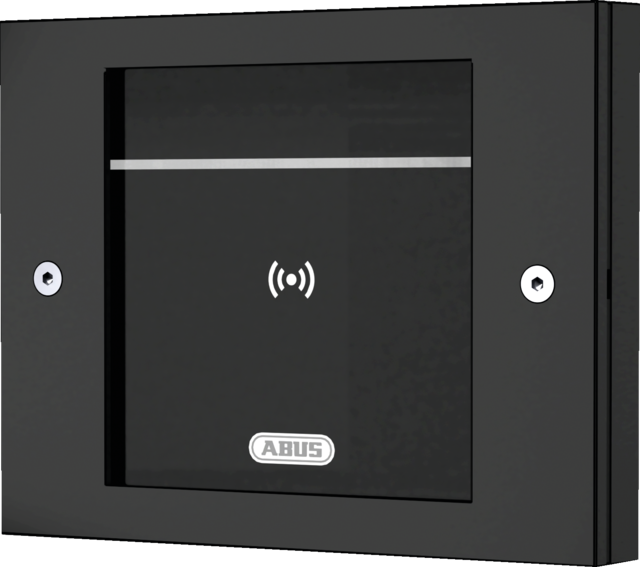

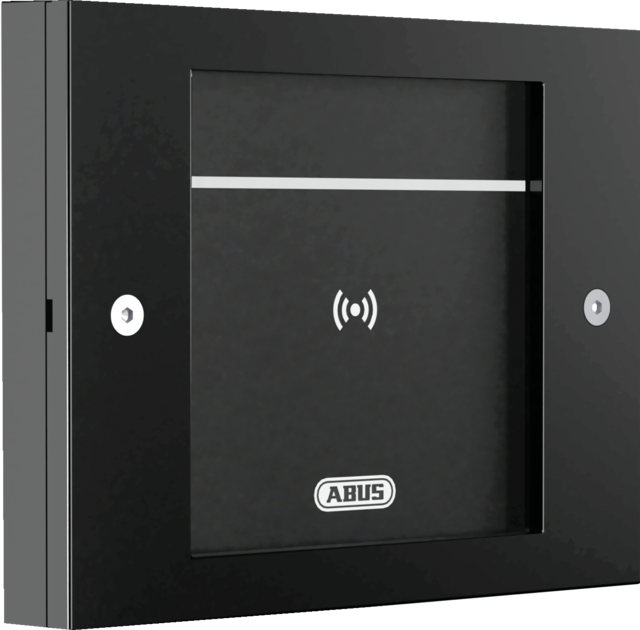

The indoor reader unit (IP44) impresses with its scratch-resistant glass surface in elegant black. Data transmission with the TECTIQ locking media (MIFARE® DESFire®) is fast and secure via RFID. The reader signals the permission and system status visually and acoustically.

TECTIQ wall reader or update terminal

In combination and depending on the control unit selected, the reader unit functions as an update terminal with optional access function or as a wall reader for controlling electronic door and gate drives and other actuators.

Update terminal: validation/updating

Together with the update terminal control unit, the reader unit forms an intelligent TECTIQ update terminal. There, users validate/update their locking medium virtually in passing when they present it. The validity of the locking medium is extended in each case, e.g. by a further 24 hours. The permission data on the locking medium is synchronised and updated with the access control panel. This means that the data on the transponders is always up-to-date and protects the system thanks to the short validity extension interval.

Flexible, secure installation

The separate installation of the reader unit and control unit via a 4-pin connecting cable (RS485 bus, up to 250 m distance) offers a high level of protection against tampering and prevents network cables from being accessible from the outside.

Efficient software administration

The TECTIQ Access Manager software makes set-up and administration easy. Data transfer to the TECTIQ wall reader (maintenance, firmware updates, etc.) is quick and easy using the TECTIQ Admin app and Bluetooth interface (BLE) as well as a system transponder.

Product advantages

Indoor reader unit as RFID reader for operation with the TECTIQ update terminal control unit or TECTIQ control unit via encrypted RS485 bus
High tamper protection with separate installation of reader unit (outside) and control unit (inside flush-mounted or in surface-mounted housing) via encrypted RS485 bus connection (up to 250 m cable, without network cable accessible from outside)
Elegant design with high-quality, scratch-resistant real glass in black (RAL 9005), in the GIRA TX44 frame
Suitable for indoor use with protection class IP44
Use in the temperature range from -10 °C to 60 °C at max. 80% humidity (non-condensing)
Clear status feedback on the authorisation status through visual and acoustic signalling
Simple installation on the control unit (PoE-capable); data transmission (RS485) and power supply via 4-pin connection cable
6 m pre-assembled, moulded cable included in the scope of delivery with the reader unit, extension up to 250 m possible (4 × 0.34 mm², shielded)
Can be administered via Bluetooth (BLE) with the TECTIQ Admin app

Downloads

General downloads:

Declarations of conformity:

Declaration of conformity

Additional information:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Area of application:	Indoors and protected outdoor area
Bluetooth version:	5.1
Cabling:	6 m cable included in scope of delivery, can be extended up to 250 m (4 x 0.34 mm², shielded)
Certifications:	-
Colour:	Frame and glass in black (RAL9005)
Connections:	RS485 (BUS A, B), 12 V DC, GND
DC voltage supply:	Via the control unit (TTSG10000, TTSG10010), 12 V
Depth:	17 mm
Factory reset:	Yes
Frame:	Compatible with GIRA System TX44
Height:	86 mm
Humidity:	Max. 80 % relative humidity, non-condensing %
IP protection class:	44
Installation type:	Surface mounted
Item abbreviation:	TEC-WL-44-S
Material:	Plastic, glass
Max. Power consumption:	100 mA (reader unit without control unit)
Max. operating temperature:	60 °C
Min. operating temperature:	-10 °C
Net weight:	0,434 kg

Number of wall readers:	One reader unit per control unit
Programming:	Admin app, system cards
Programming technology:	RFID (13,56 MHz), Bluetooth (2,4 GHz)
RFID conformity:	ETSI EN 300 330
RFID frequency:	13,56 MHz
RFID range:	≤ 3 cm
RFID technology:	MIFARE® DESFire® EV1, EV2, EV3
RS-485 interface:	Connection to the control unit terminal 2/connection 15-18: Bus A, Bus B, 12 V DC and GND. RS485 termination: via slide switch on the control unit
Security features:	Encrypted data transmission via RS485 between control unit and reader unit, separate installation of control unit and reader unit possible
Signalling:	Visual & acoustic
Special functions:	Yes, via software and app
Transmission power:	-4 dBm
Transponder conformity:	Passive transponder ISO 14443 A (MIFARE® DESFire® EVx)
Transponder encryption:	AES-128 Bit
Update capability:	Automatic via the control unit
Width:	110 mm
Wireless conformity:	ETSI EN 300 328
Wireless encryption:	AES-128 Bit
Wireless standard:	Bluetooth Low Energy 2,4 GHz
