    WLX Pro Wall Reader-Set IP67 Industrial Intrusion black

    Description

    The wAppLoxx Pro Wall Reader ideally expands the digital access system’s use cases with closing and locking technology. Electronic door openers, motorised locks, electronic barriers or gates: the wall reader reliably controls all important access points. The special added value: The Wall Reader can be accessed via app as part of the wAppLoxx Pro system – allowing electronic garage doors or already installed motorised locks, for example, to be controlled intelligently at any time through the app – even while on the go.* The high-quality, scratch-resistant glass front serves to identify access authorisations by reading in the locking medium and provides feedback to the user in the form of visual and acoustic signals.

    Individual component

    WLX Pro Bridge Box Industrial Intrusion
    Panel & Sets
    WLX Pro Bridge Box Industrial Intrusion
    • Ideal for controlling electronic door and gate drives, door openers, lifts, barriers, rolling grilles, turnstiles
    • Arming and disarming intruder alarm systems
    • External input enables the switching of a relay, e.g. for switches, push-buttons, ...
    • Other jumper settings, e.g. control of the 2nd relay in case of tampering, Wall Reader mute switching, pulse, delay, etc.
    • Available in different versions

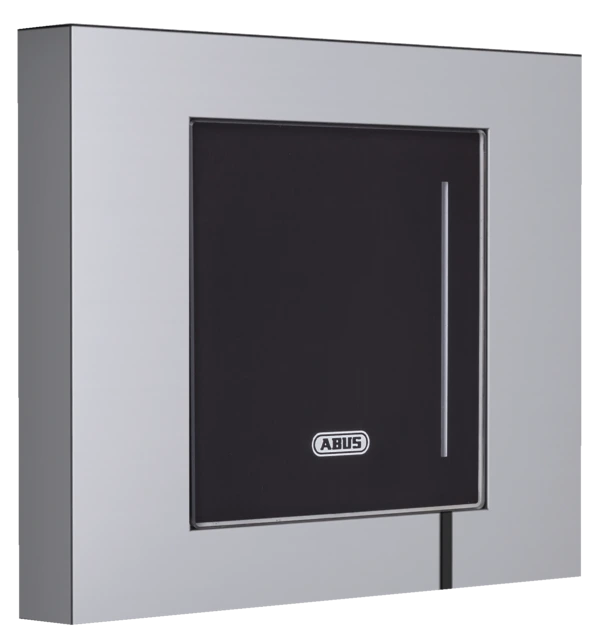

    WLX Pro Wall Reader IP67 black
    Panel & Sets
    WLX Pro Wall Reader IP67 black
    • Ideal for controlling electronic door and gate drives, door openers, lifts, barriers, rolling grilles, turnstiles
    • High manipulation resistance thanks to separation of reading and control unit
    • Different versions for indoors/outdoors
    • Optical and optional alarms
    • Bus cable (5-core) already included in the scope of delivery with the reader (6m)

    Product advantages

    • Ideal for controlling electronic door and gate drives, door openers, lifts, barriers, rolling grilles, turnstiles
    • Wall Reader RFID reader unit with encrypted bus connection to control unit (wAppLoxx Pro Bridge Box)
    • High manipulation resistance thanks to separation of reading and control unit
    • Encrypted AES 128-bit data transfer between wAppLoxx Pro Wall Reader, Bridge Box and Control
    • Wall Reader: Elegant design in black with high-quality scratch-resistant glass in a robust metal housing
    • External input on the Bridge Box allows a relay to be switched, e.g. for switches, buttons, etc.
    • Other jumper settings, e.g. control of the 2nd relay in case of tampering, Wall Reader mute switching, pulse, delay, etc.
    • Industrial Bridge Box variant (standard ELS TK PC housing) for commercial use with IP66 protection class
    • Wall reader: Weather-resistant thanks to IP 67
    • Arming and disarming intruder alarm systems

    Downloads

    General downloads:

    Declarations of conformity:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Access Control Wall Reader Set
    Access Control Wall Reader Set
    Specifications
    Article abbreviation: WLX-PRO-Set-WR-I-S-OI
    Closing media: Mifare DESfire EV1, Mifare DESfire EV2, Mifare Classic
    Colour: black
    Depth: 20 mm
    Height: 97 mm
    Max. Operating temperature: 70 °C
    Min. operating temperature: -20 °C
    Mounting type: Surface mounted
    Net weight: 1.134 kg
    PSTI conformity given: Yes
    PSTI conformity needed: Yes
    Product security update min until: 2030-12-31
    Radio networked: Yes
    Standalone: No
    VdS class: ohne
    width: 119 mm
