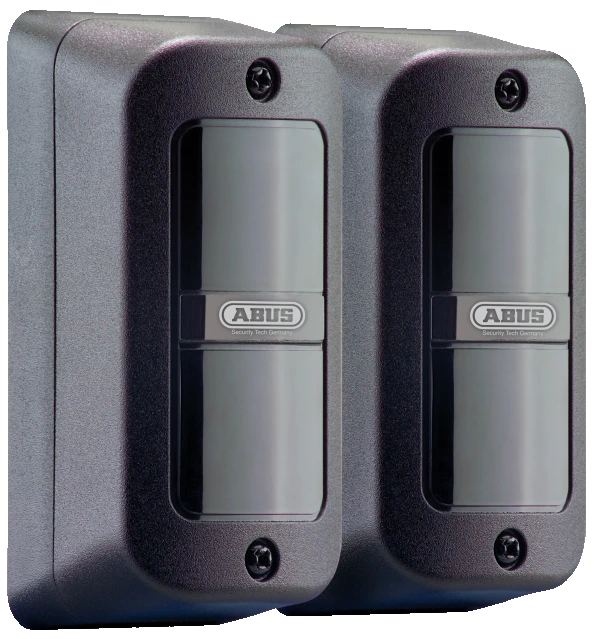

Ecoline Infrared Light Beam

Description

LS1020 Optimum operational security and a wide range of applications

The wire infrared photoelectric sensor secures a range of up to 20 m. The intelligent tamper protection of the transmitter and receiver ensures maximum operational security. In combination with the ABUS Terxon wired alarm system, the photocell can be used to monitor corridors, doors or car parks. Control of video surveillance systems or lighting can also be realised easily.

Precise detection
In contrast to passive infrared motion detectors, infrared light barriers only monitor a precisely defined line. However, movements within the area in front of and next to this line are not detected. This means that persons walking past are not detected as long as they do not cross the invisible line.

Product advantages

Suitable for interior room monitoring, passive trap systems, external shell protection, free-land monitoring
Optimal for smaller properties
IP66

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

AC power supply:	24 V
Colour:	other
Connections:	Alarm output: (Rx) relay (NO/NC) 1 A / 120 V AC, tamper output: (Tx/Rx) NC contact 1 A / 120 V AC
Current consumption:	50 mA
DC power supply:	12 V
Depth:	34 mm
Detection area detector (m):	20 m
Detection method:	Infrared radiation measurement
Dimensions:	(WxHxD) 46x95x34 mm
Display type:	Yes
Height:	95 mm
Housing material:	ABS
Length:	34 mm
Max. Detection area (indoor):	20 m
Max. Detection area (outdoor):	20 m
Max. Operating temperature:	60 °C

Mechanical protection:	No
Mounting location:	Indoors and outdoors
Mounting type:	Surface mounting
Net weight:	0.1 kg
PSTI conformity needed:	No
Power consumption:	0.24 W
Product group:	Detectors
Protection class IP:	66
Sensor type:	Infrared module
Status display:	Yes
Tamper monitoring:	Yes
Type of protection:	Intrusion protection
VdS class:	none
WEEE group:	09
width:	46 mm
