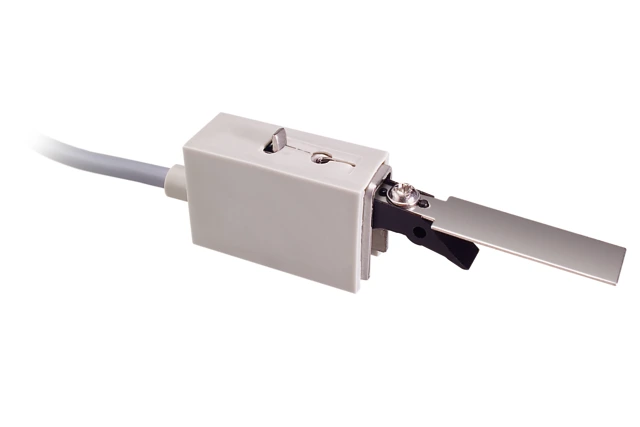

    Bar Switching Contact
    Bar switching contact left view

    Bar Switching Contact

    Description

    The VdS-certified bar switching contact monitors the latches of doors, gates, safes, etc. The electromechanical contact with a watertight micro-switch is inserted into the door frame and activates the locking bar when the door is latched. The actuating lever can be individually shaped in such a way that contact is made with a wide variety of bars. Inserting the cylinder pin into the switching lever makes it possible to install the bar switching contact to the side of the lock-bar section.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Awards & Partners
    VdS certificate
    As a company in the German Insurance Association (GDV), the VdS damage prevention center is the independent certification center for security technology. With its strict certification guidelines, the VdS ensures products, which guarantee security.
    Awards & Partners

    Product advantages

    • For monitoring the locked status of doors
    • Housing, spring and lever arm made of stainless steel (Nirosta)
    • Microswitch (changer) with gold contact

    Downloads

    General downloads:

    Certificates:

    Additional information:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Bar Switching Contact
    Bar Switching Contact
    Specifications
    Cable length: 2 m
    Cable type: LIYY
    Certifications: VdS C
    Compatible with: Secoris, Secvest, Terxon
    Connections: NC, switch capacity 1 mA to 2 A / 30 V
    Environmental class: III
    Height: 18 mm
    Housing material: Stainless steel
    IP protection class: 50
    Length: 63 mm
    Max. humidity: 95 %
    Max. operating temperature: 65 °C
    Min. operating temperature: -40 °C
    PSTI conformity required: No
    Sensor type: Micro-switch
    Switching power: 60 W
    Type of detection: Locking monitoring
    VdS approval no.: G 186105
    VdS class: C
    Width: 11,5 mm
