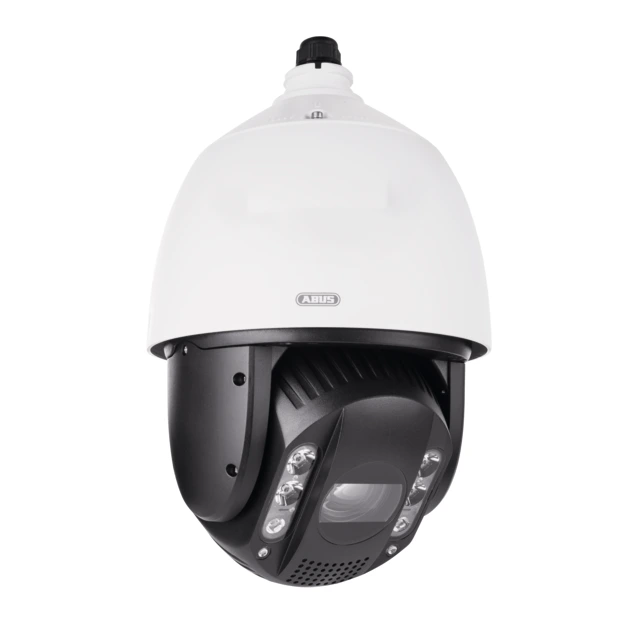

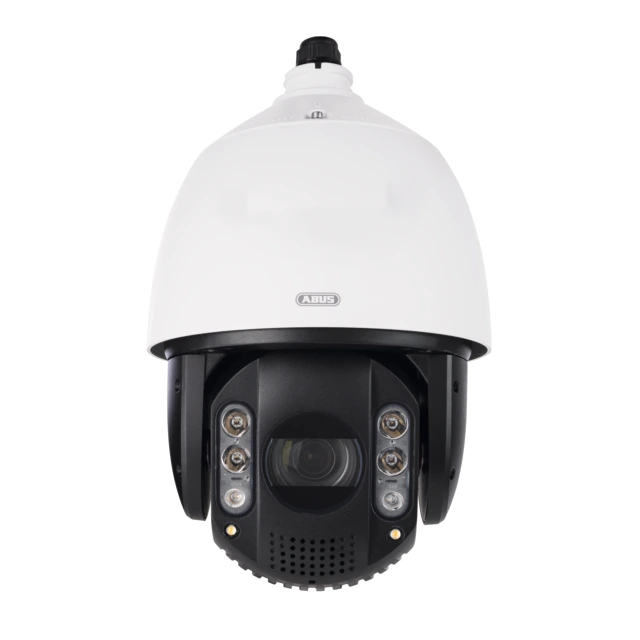

    IP PTZ Dome 4 MPx (32x)

    Description

    DETECT OBJECTS FROM A DISTANCE. KEEP 360° IN VIEW. IN ANY LIGHT
    The IP PTZ Dome provides video streams in 4 MPx resolution up to 25 fps. The weatherproof IP66 housing allows outdoor use, due to the integrated IR LEDs the camera can be used at day and night. Access to the camera is always convenient via the Link Station app.

    PTZ function: pan, tilt, zoom
    The precise control mechanism allows fast and accurate 360° control of the camera. The 32x optical autofocus motor zoom provides sharp detail even over long distances - people and objects are reliably detected. The ultra low-light technology and the high-performance WDR function capture such important details in dark but also in bright areas.

    Automated guard tour
    Predefined preset positions allow fast startup of individual tours. This allows the camera to independently carry out guard tours.

    Comfortable installation

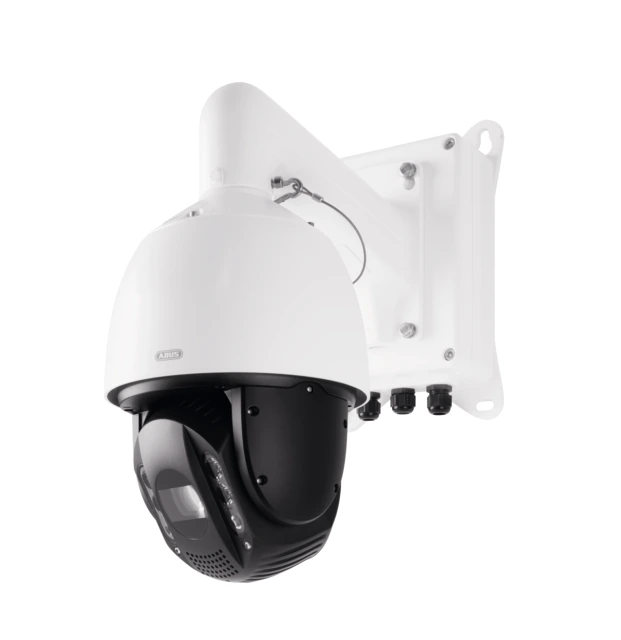

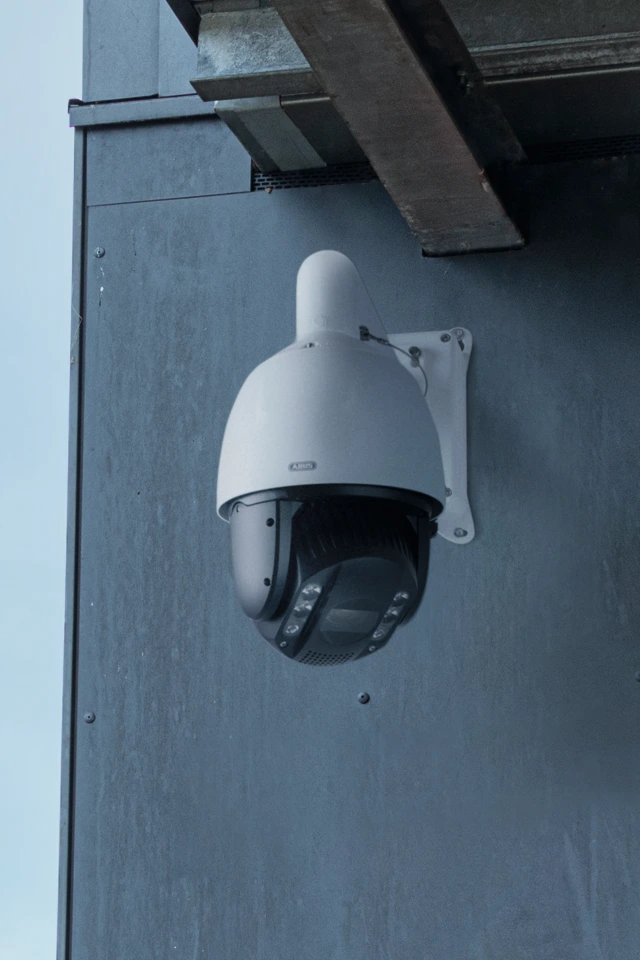

    The IP PTZ Dome is mounted on the ceiling or on the wall. We recommend the installation box TVAC31241 for wall mounting and the PoE Injector TVAC25005 for powering via High-PoE (60W). The free “ABUS IP Installer” software is available for simple setup in the network. The software finds the camera quickly and easily within the network and supports during the installation process.

    Note: The camera does not come with a power supply, as it can be powered via PoE.

    The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Network PTZ Dome Camera

    Product advantages

    • 4 MPx Resolution: 2,560 x 1,440 @ 25 fps
    • 32x optical zoom: Tele-motor zoom lens (focal length 5.9-189 mm for 51-2.6° viewing angle) for monitoring large areas up to 3 km away
    • Intelligent object detection and precise motion detection with fully automatic differentiation between people/vehicles and disruptive influences (branches, light, etc.)
    • PTZ function: Automatic panning/tilting (360°/105°) and zooming to keep an eye on a detected, moving object (auto-tracking, object tracking), or manual control via app, recorder, PC (ABUS CMS)
    • Electronic image stabilizer (EIS) for clear, precise scenes with a lot of movement/vibration of the camera (e.g. wind, truck traffic); dynamic privacy zones for top data protection (masking automatically adjusts to zoom factor and direction of view)
    • IR LEDs for clear image results in the dark (up to 200 m); Ultra Low-Light Performance for top results in low light
    • 120 dB WDR function to compensate for image contrasts, strong backlight, etc.
    • Alarm camera function: flashlight and acoustic alarm output (warning tone/voice announcement via integrated loudspeaker) for local alarm or addressing the perpetrator
    • Weatherproof housing (IP66) including Micro SD card slot for internal data storage
    • Supports H.264, H.265, MJPEG (incl. dynamic GOP); Power supply: 24 V AC & PoE (802.3bt)

    Downloads

    General downloads:

    Declarations of conformity:

    Additional information:

    Software:
    Firmware:

    Auxiliary programs:

    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

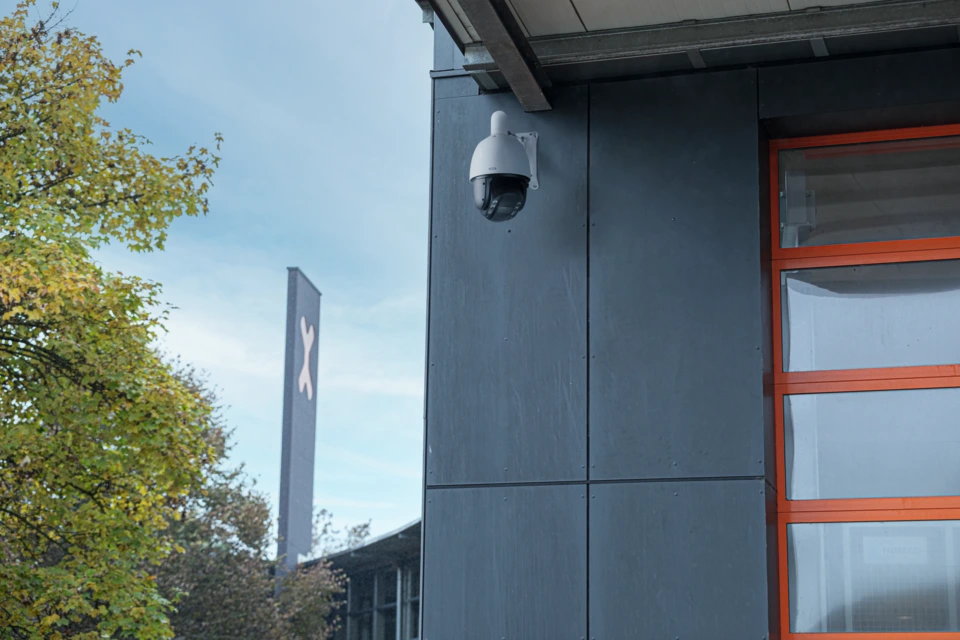

    Network Dome Kamera
    Network Dome Kamera
    Specifications
    AC power supply: 24 (+/-10 %) V
    Alarm generation: E-Mail, FTP, Relais, App Push, Flash
    Alarm input (NO/NC): 2
    Alarm output: 1
    Aperture at minimum illumination (color): F1.5
    Application purpose: Area monitoring (PTZ)
    Article program: Professional
    Audio: Integrated: Loudspeaker; Connectable: Microphone, Loudspeaker
    Backlight compensation: WDR
    Camera type: PTZ
    Colour: white
    Compatible with ABUS Link Station: Yes
    Compatible with Comfion: Yes
    Compatible with Secoris: No
    Compatible with Secvest: No
    Compatible with wAppLoxx: No
    Compatible with wAppLoxx Pro: No
    Connections: 1 x RJ45, 1 x AC, 1 x audio input, 1 x audio output, 2 x alarm input, 1 x alarm output
    Construction type of device: PTZ
    Current consumption: 1,750 mA
    Day/night switching: ICR / Color/BW
    Depth: 185 mm
    Diameter: 220 mm
    Digital zoom: 16x
    Dimensions: (H x D) 363 x 220 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1 - 1/30000
    Encryption: HTTPS
    Focal length: 5,9 - 189 mm
    Gross weight: 5 kg
    Height: 363 mm
    Horizontal viewing angle: 2,6 – 50,8 °
    ICR day/night function: Yes
    IR LEDs: Yes
    IR range (up to): 200 m
    Image integration: Yes
    Image optimization: WDR, 3D DNR, EIS Electr. Image Stabilizer
    Image sensor: 1/1.8" Progressive Scan CMOS
    Lens: Motorised zoom, autofocus
    Loudspeaker: Yes
    Max. Air humidity: 90 %
    Max. Max. speed: 160°/Sek. (Pan), 120°/Sek. (Tilt)
    Max. Operating temperature: 65 °C
    Max. Resolution @ frame rate: 2560 x 1440 @ 25 fps
    Microphone: Yes
    Min. operating temperature: -30 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.005 lx
    Minimum lighting (B/W): 0.001 lx
    Motion detection: Yes
    Net weight: 3.6 kg
    Network bandwidth Video: 32 kBit/s – 16 MBit/s
    Network camera protocols: TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, ABUS Server, NTP, RTSP, DHCP, SNMP, QoS, 802.1X
    Network connection: RJ45
    Network connection LAN: RJ45
    Noise suppression: 3D-DNR
    Number of presets: 300
    Number of streams: 3
    Number of tours: 8
    Number of users: 32
    Optical zoom: 32x
    Other functions: Smart Tracking, Object classification human/vehicle
    PSTI conformity given: Yes
    PSTI conformity needed: Yes
    Pan/tilt range: 360°/-15°~90°
    PoE Standard: IEEE 802.3bt
    Power consumption: 42 W
    Privacy zones: 24
    Product group: Camera
    Protection class IK: 10
    Protection class IP: 66
    Radio functions: Smart Tracking
    Radio networked: No
    Resolution: 4 MP
    Resolution modes: Stream 1: 2.560 x 1.440 @ 25 fps, Stream 2: 704 x 576 @ 25 fps, Stream 3: 1.920 x 1.080 @ 25 fps
    Storage medium: Optional microSD card (max. 256 GB)
    Supported browsers: Chrome/Edge (Plugin), Edge (Compatible Mode)
    Vertical angle of view: 1,5 – 29,4 °
    Video Content Analysis (VCA): Tripwire, Intrusion Detection, Region Enter, Region Exit
    Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
    Video motion detector included: Yes
    Video system: IP
    WEEE group: 09
    White balance: ATW, manual
    width: 185 mm
