New

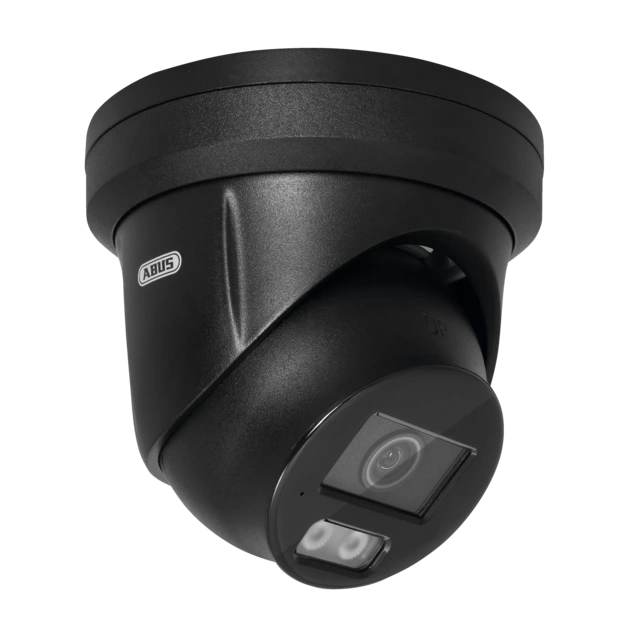

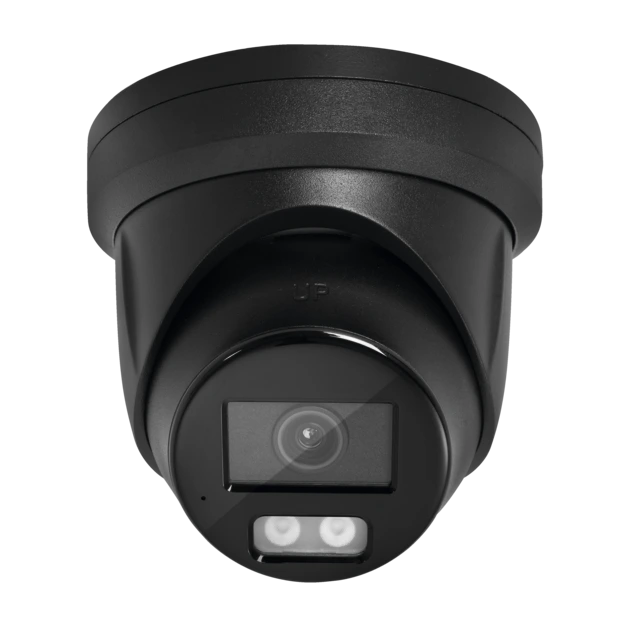

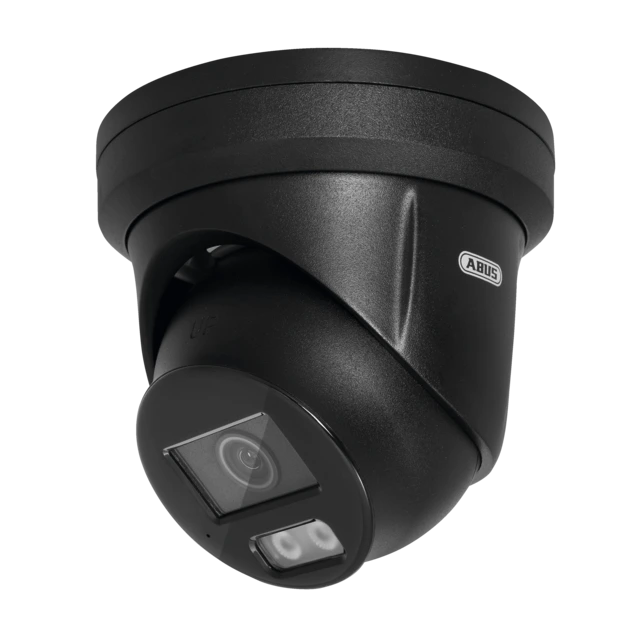

IP Spherical Dome 4 MPx Black (2.8 mm, IR/WL)

Wide-awake night watchman: Colour images in the dark thanks to special lens and WL LEDs. Smart object detection for precise alarm, switching between colour night vision and IR and quick event search

Description

IPCA54612A

COMPACT 4 MPX 24/7 SURVEILLANCE CAMERA

The IP spherical dome delivers the best surveillance images in 4 MPx resolution as a full colour day/night camera. The weatherproof IP67 housing is designed for outdoor use. External white-light LEDs provide clear images day and night. The camera can be accessed from the mobile app at any time.

Top surveillance in the dark

> The infrared LEDs enable detailed black/white night vision. Intelligent object detection can be used to switch to colour night vision when an event occurs. The Gecko series delivers clear colour images in total darkness thanks to full colour day/night technology – rich in detail for conclusive evidence. The slightest residual light is effectively amplified by the special lens and the extra light-sensitive image sensor. The white-light LEDs provide finely dosed extra light for the image sensor.

Best overview

The IP dome overlooks a horiz. viewing angle of 104°.

Autom. Object recognition

The security camera distinguishes relevant movements (people, vehicles) from disturbances (branches, light, etc.) - and thus minimises unnecessary motion alarms.

Recording and compatibility

Easy installation

The camera is mounted on the ceiling or wall (wall bracket/Insta. box available). The free “ABUS IP Installer” software is available for integration into a network.

Notes: Without power supply unit, because power is supplied by PoE.

The effective LED range varies depending on the location.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners

Product advantages

4 MPx resolution (2,688 x 1,520 @ 25 fps) for crisp surveillance images
2.8 mm fixed lens for a good overview (104° viewing angle)
Detailed colour images in the dark thanks to full-colour day/night technology; effectively amplifies even minimal ambient light using a special lens and highly light-sensitive image sensor
Field of view is illuminated by white-light LEDs (up to 30 m range) for accurate colour images in total darkness (e.g. indoors); finely metered lighting for the light-sensitive image sensor (barely visible to the human eye)
Integrated infrared LEDs for detailed black/white night vision and intelligent switching between IR and colour night vision (Gecko)
Intelligent object recognition (human & vehicle): Video content analysis with fully automatic differentiation between people/vehicles and disturbances (branches, light, etc.)
Robust, weatherproof housing (IP67), colour: black
Supports H.264, H.265, MJPEG (incl. Dynamic GOP)
microSD card slot for internal data storage, encrypted for high data security (optional)
12 V DC & PoE (802.3af)

Downloads

General downloads:

Additional information:

Overview Video IP Mounts

Software:
Auxiliary programs:

ABUS Export Player

Installation software:

ABUS IP Tool

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Additional functions:	White light range up to 30 m
Alarming:	Email, NAS, FTP, App Push
Aperture at minimum illumination (colour):	F1.0
Audio:	Integrated: Microphone
Backlight compensation:	WDR, BLC, HLC
Battery - GRS type:	ML414H-IV01E
Camera type:	Dome
Colour:	black
Compatible with:	ABUS NVR/DVR, ABUS Link Station App, ABUS CMS
Compatible with ABUS Link Station:	Yes
Compatible with Comfion:	Yes
Compatible with Secoris:	Yes
Compatible with Secvest:	Yes
Compatible with wAppLoxx:	Yes
Compatible with wAppLoxx Pro:	Yes
Connections:	1 x RJ45, 1 x DC
DC voltage supply:	12 (+/-25 %) V
Day/night switching:	ICR/colour/S/W, VCA-controlled between IR and white light
Design:	Dome
Diameter:	138 mm
Digital zoom:	Yes
Dimensions:	(LxWxH) 138x138x130 mm
Dynamic range (WDR):	120 dB
Electronic shutter:	1/12 - 1/100000 s
Encryption:	HTTPS, TLS 1.1/1.2/1.3
Focal length:	2,8 mm
Frame rate:	1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25 fps
Functions:	Sabotage monitoring, region of interest
Gross weight:	1,1 kg
Height:	130 mm
Horizontal viewing angle:	110 °
Housing material:	Metal
ICR day/night function:	Yes
IP protection class:	67
IR LEDs:	Yes
IR range (up to):	30 m
Image enhancement:	WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart Event mode)
Image integration:	No
Image sensor:	1/1.8" Progressive Scan CMOS
LAN network access:	RJ45 10M/100M self-adaptive

Language of instructions:	DE, UK, FR, NL, DK, IT
Lens:	Fix
Loudspeaker:	No
Max. humidity:	95 %
Max. operating temperature:	60 °C
Max. resolution @ frame rate:	2688 x 1520 @ 25 fps
Microphone:	Yes
Min. operating temperature:	-30 °C
Minimum illumination (IR):	0 lx
Minimum illumination (colour):	0,0005 lx
Motion detection:	max. 4 zones (with object detection), max. 8 zones (without object detection)
Net weight:	0,8 kg
Network camera protocols:	IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, IGMP, Bonjour, PPPoE, SNMP
Noise reduction:	3D DNR
Number of IR LEDs:	2
Number of streams:	3
Number of users:	32
OSD language:	DE, UK, FR, NL, DK, IT
Other functions:	Object recognition person/vehicle
PSTI conformity given:	Yes
PSTI conformity required:	Yes
Pixels (effective):	2688(H) x 1520(V) pixel
PoE standard:	IEEE 802.3af
Power consumption:	600 mA
Private zones:	4
Product security updates at least until:	2026-09-01
Resolution:	4 MP
Resolution modes:	Stream 1: 2688 x 1520 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1920 x 1080 @ 10 fps (only with VCA off)
Storage medium:	Optional microSD card (max. 512 GB)
Supported browsers:	Google Chrome, MS Edge, Mozilla Firefox, IE11
Technology:	IP
Vertical viewing angle:	57 °
Video Content Analysis (VCA):	Human & vehicle object detection for tripwire detection, intrusion detection, area entry, area exit
Video compression:	Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265
Video network bandwidth:	32 kBit/s - 8 MBit/s
Video system:	IP
White balance:	AWB, manual
White-light LEDs:	2
White-light range (up to):	30 m
