Wired NC Opening Detector (white)

Description

FU7350W

The opening detector is a magnetic contact for protecting doors and windows. Unauthorised opening is detected and reported to the alarm center. The opening detector consists of a magnetic contact (reed) and a magnet. These are fitted parallel, in front of, or at right angles to each other at a maximum distance of 13 mm apart. The electric circuit of this NC opening detector is normally closed (NC). If the distance between the reed and the magnet increases, the circuit is broken and an alarm reported. The optimum installation location is the middle of the door or window frame. It can also be fitted to the bottom of the window frame if a particular window with a magnetic contact is to be tilted open. The detector is suitable for both flush and surface-mounted installation. The opening detector is available in white and brown.

Product advantages

For reliable protection of windows and doors (perimeter protection)
Magnetic contact suitable for wall mounting and flush mounting
Opening detector consisting of magnetic contact and magnet

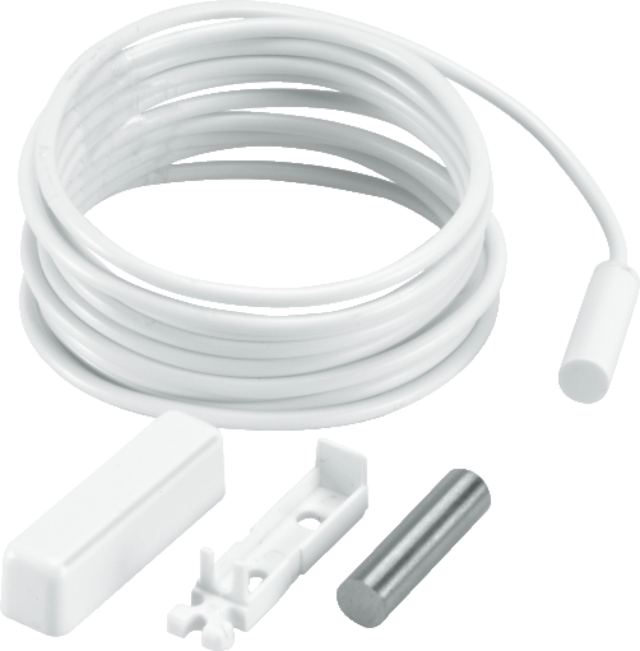

Incl. 2 m cable (2-wire), mounting enclosure, shims and fixing screws
NC switching contact

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Cable length:	2 m
Cable type:	2-core
Colour:	white
Connections:	NC, max. contact capacity 100 V/5 W/0.05 A
Dimensions:	(WxHxD) 11x12x48 mm
External field protection:	No
Height:	12 mm
Housing material:	ABS
Installation location:	Integration / surface mounting
Installation type:	Surface mounting/recessed mounting

Length:	48 mm
Max. operating temperature:	50 °C
Min. operating temperature:	-10 °C
PSTI conformity required:	No
Sensor type:	Read contact
Type of detection:	Magnetic field measurement
VdS class:	none
Width:	11 mm
