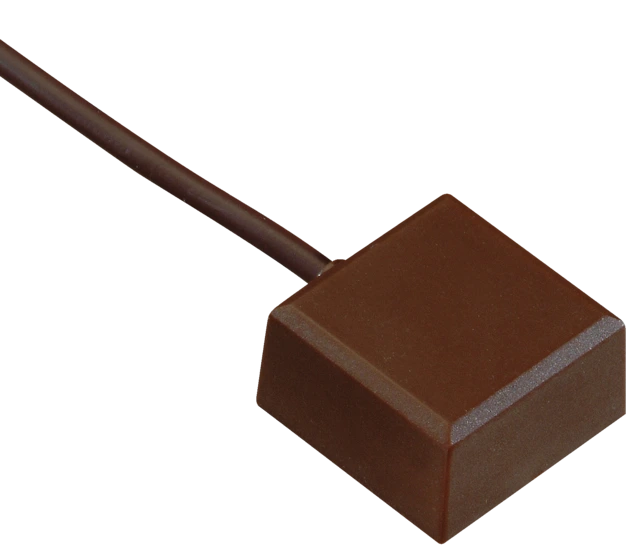

Potential-free Glass Breakage Detector (brown)

Potential-free Glass Breakage Detector (brown)


Use the passive glass breakage detector to monitor individual window panes. The detector is fixed to the window pane to be protected. The ultrasound signals resulting from glass breakage are detected and reported to the alarm center. The passive glass breakage detector is fixed between 20 and 50 mm from the window frame. Important: The detector should be fixed in such a way that you notice immediately if there is no contact to the pane. The cable should not be in danger of being damaged when the window is opened and closed. If fixed in a corner of the window, the passive glass breakage detector monitors an area of up to 4m². Its maximum monitoring radius is 2 meters. The passive glass breakage detector works with an integrated piezo element. It reacts to the sound frequency caused by breaking glass. In the event of an alarm, a CMOS relay is opened. The passive glass breakage detector is potential-free, i.e. no voltage supply is required. This makes the detector ideal for wireless systems. The passive glass breakage detector is available in white (FU7300W) and brown (FU7300B).

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.


Product advantages

  • No operating voltage necessary
  • Ideal for use with wireless opening detectors FUMK50000B/W and FUMK50010B/W
  • Monitoring area: 2 m radius
  • Suitable for mechatronics components with connection clamp



We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
AC voltage supply: Not required V
Cable length: 2 m
Cable type: 2-core
Colour: *Unnamed (Identifier: Braun)
Colour options: white, brown
Compatible with: Secoris, Secvest, Terxon
Connections: NC switch contact max. switching voltage 15 V DC / max. switching current: 15 mA
DC voltage supply: Not required V
Detector coverage area (m2): 4 m²
Dimensions: (WxHxD) 18x18x9 mm
Height: 18 mm
Housing material: ABS
IP protection class: 65
Installation location: On glass areas
Length: 9 mm
Max. operating temperature: 55 °C
Net weight: 0,04 kg
Sensor type: Piezo sensor
Type of detection: Audible
VdS class: none
Width: 18 mm
