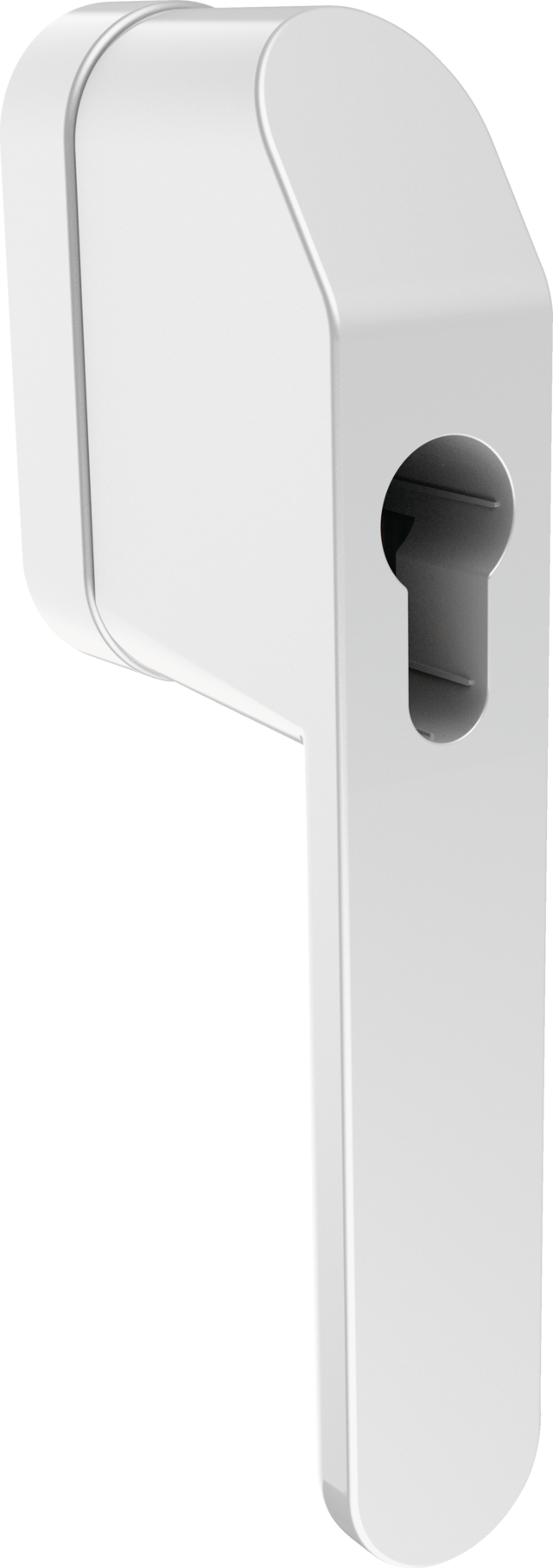

FG500 Half cylinder white without cylinder
New

FG500 HZ

With the lockable window handle for profile half cylinders, you increase protection against break-ins and make access via windows more difficult. Opening is only possible with a key – this also protects against children falling out of windows.

  • Security Level 5/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
All variants for FG500 HZ
Description
Our lockable window handle for profile half cylinders offers you the perfect combination of burglary protection and child safety. It is suitable for all inward-opening windows and easily replaces the existing window handle.
Tested and certified in accordance with DIN 18267, the handle provides protection against twisting or tearing off with a pressure resistance of 200Nm. In addition, the lockable function prevents children from opening the windows unintentionally – significantly reducing the risk of accidents. The profile half cylinder only needs to be pressed in briefly to lock the FG500 HZ, but the key is always required to open it.
This window handle can be combined keyed alike with other profile half cylinders (10/30). This makes it ideal for use in private or public key systems and offers the option of operating several windows and doors with a single key – a feature that is practical in facilities such as nurseries, for example. With the FG500 HZ, you ensure that only authorised persons can open the window with the key.
Installation is quick and easy: the FG500 HZ is installed with a square bolt, which is adjustable and therefore suitable for different window profiles, and the supplied screws.
The FG500 HZ is available in silver and white variants.
  • Made in Germany
Awards & Partners
Awards & Partners

Technologies

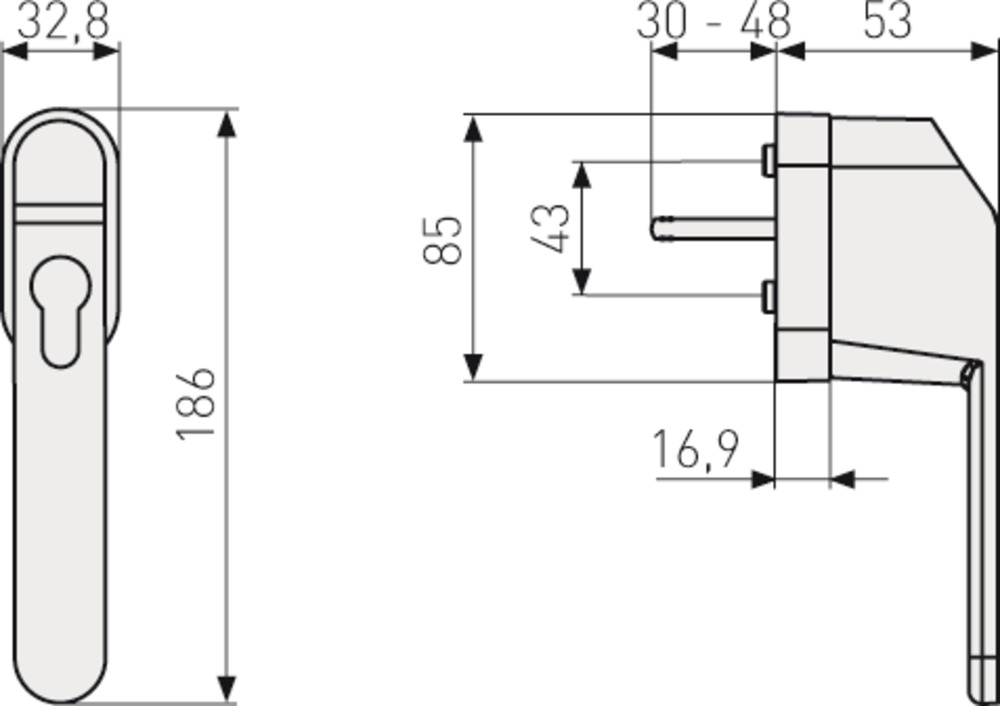

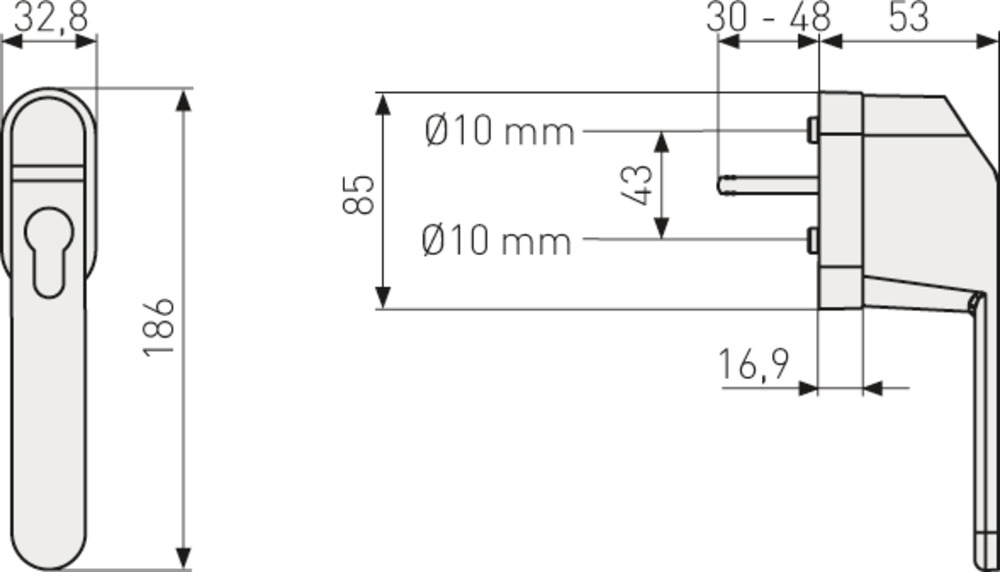

  • Individually adjustable, secured square bolt, 30 - 48 mm in length
  • Square bolt 7 mm, screw distance 43 mm
  • In accordance with DIN 18267 class 2
  • 200Nm resistance against twisting or tearing off
  • Low-wear fourfold bolted locking mechanism

Operation and use

  • Can be used on standard commercially available inward-opening windows in place of the existing window handle
  • Suitable for profile half cylinders with adjustable cam
  • Window handle locking via the profile half cylinder, opening with key
  • Simple installation of the profile half cylinder
  • Ideally suited for key systems
  • Also suitable as a child safety lock

Variants

  • Colours: silver, white

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
door guard: No
Weight: 800 g
Design:
colour: white
Security Level Home Security: 5
