Secoris keypad reader with RFID reader (Mifare Desfire) IP54

Outdoors: Operate, arm and disarm the Secoris intruder alarm system easily using an RFID chip key or by entering a PIN code. Keypad reader can replace an external arming device (EAD).

Description

BUBE60100

OPERATE YOUR ALARM SYSTEM FROM THE OUTSIDE.

The outdoor keypad reader for secure operation of the Secoris intrusion alarm system.

Arm/disarm intruder alarm system from outside.

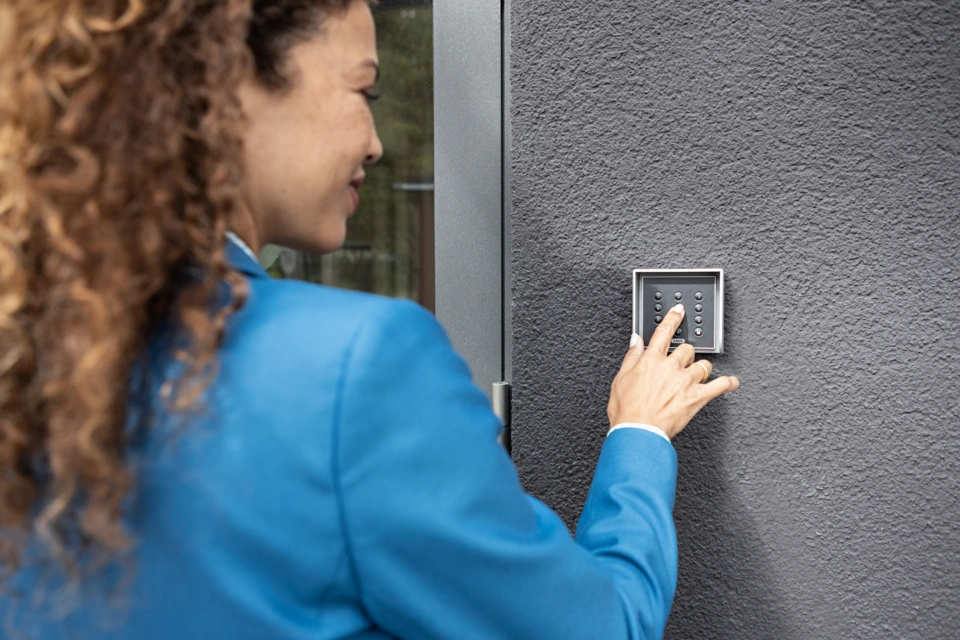

The robust keypad reader is mounted outdoors to arm and disarm the Secoris intruder alarm system from outside by using a chip key (RFID transponder) or by entering the PIN code on the keypad. The Secoris control panel is connected via the BUS control panel (item no. BUBE60030) indoors.

Easy installation at the entrance

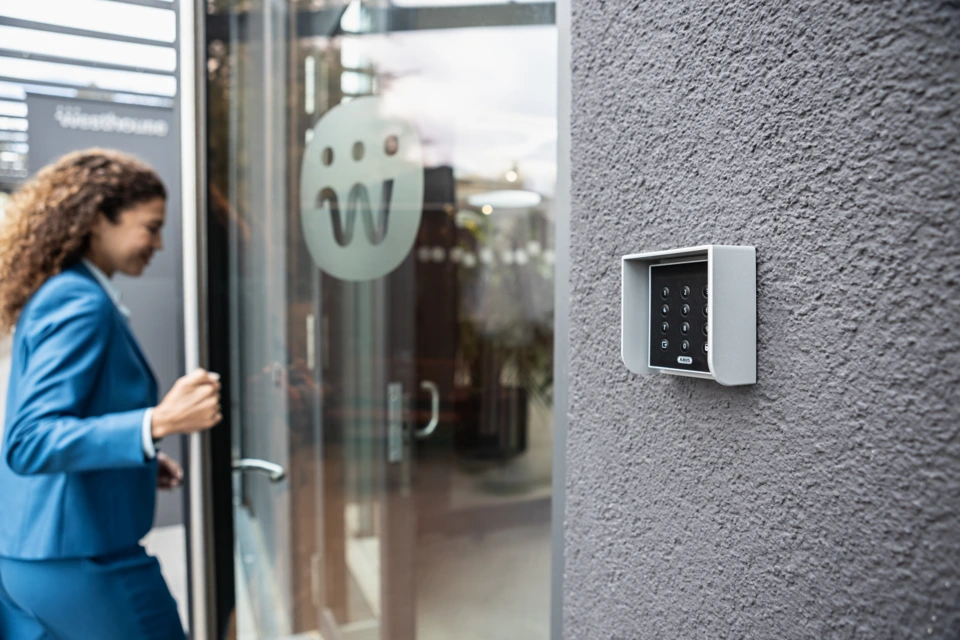

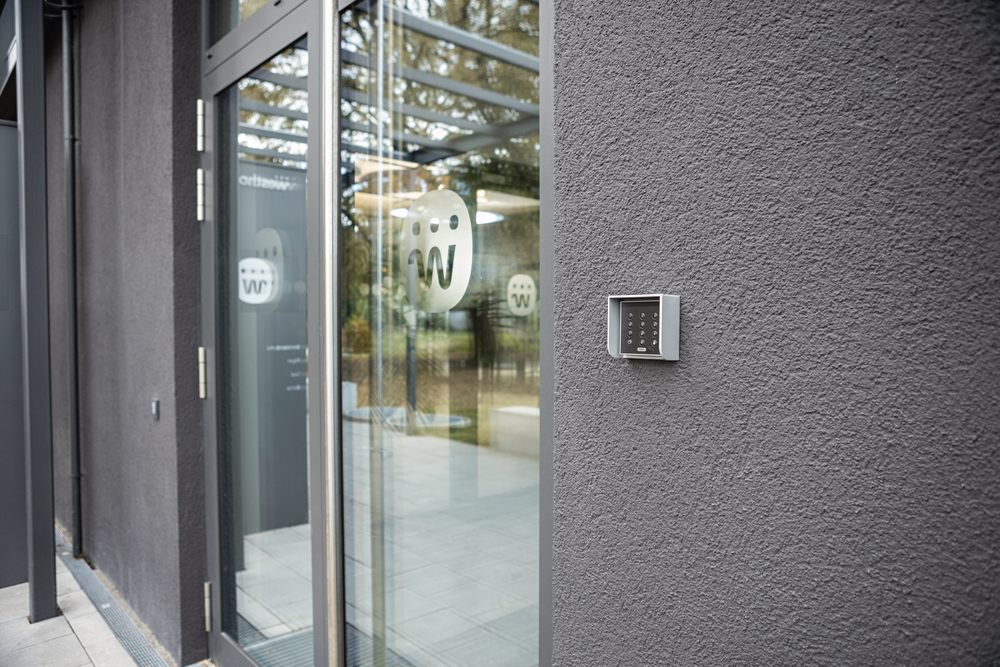

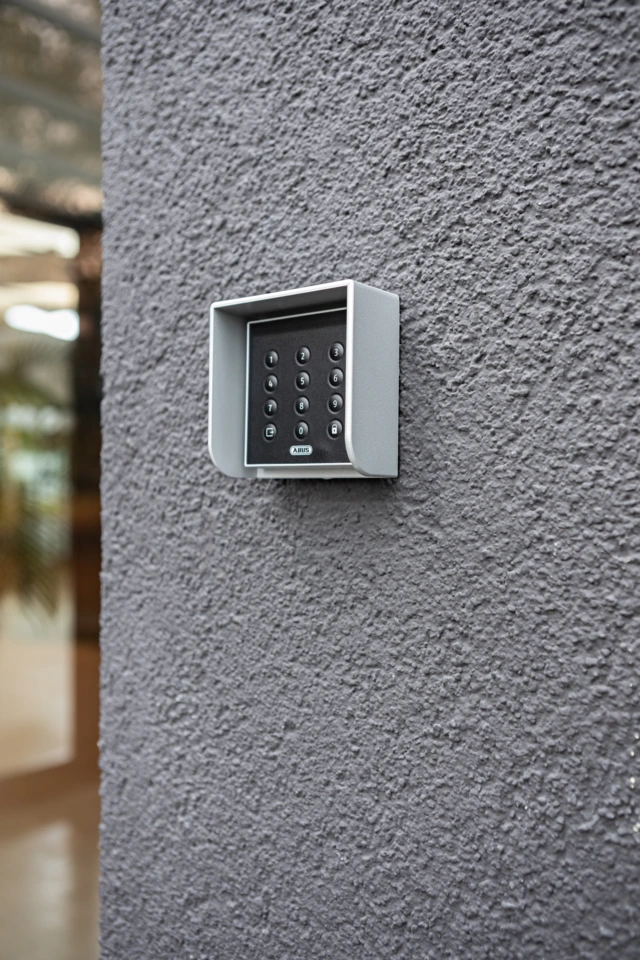

The compact, weatherproof IP54 housing is mounted quickly and easily using a modular system, either on the façade (exposed) or recessed in the wall (flush-concealed). The keypad reader is also supplied with power via the BUS control unit.

Status display & loudspeaker

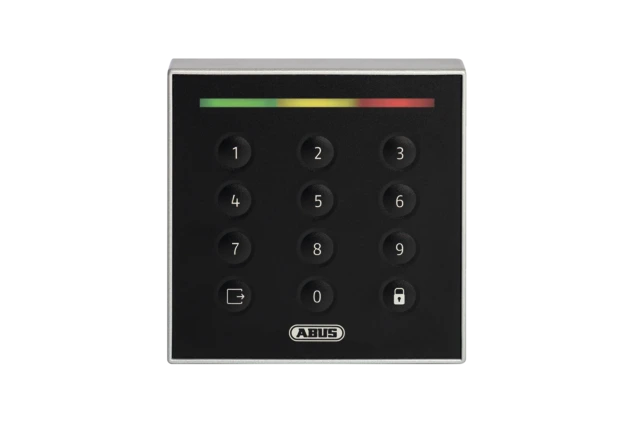

The system status is easy to read on the coloured LED display and signalled acoustically.

Fits any building

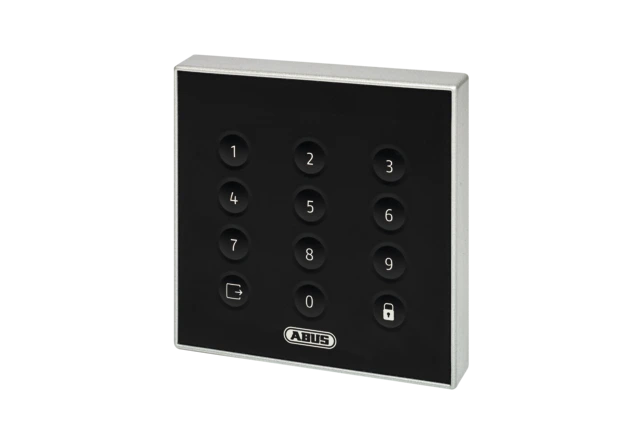

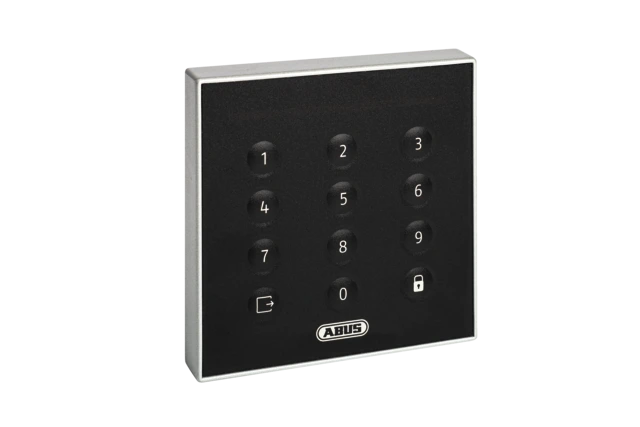

The compact keypad reader is hardly bigger than a button for a light, is a neutral black and fits on almost any façade.

High security standards

Depending on the transponder (Mifare Desfire EV1), the RFID radio transmission is readout-protected. There is a highly secure, encrypted connection (OSDP, AES128) between the outdoor keypad reader and the indoor operating unit (EN grade 3).

Product advantages

Control panel with keypad and RFID reader / proximity reader (Mifare Desfire) for outdoor use
For conveniently operating (arming/disarming) the intruder alarm system from outside the building (IP54)
Arm/disarm (activate/deactivate) the system using a contactless RFID transponder (chip key) or by entering a PIN code
High-quality design with scratch-resistant surface and convenience keypad, fits flexibly and discreetly into any façade thanks to its compact design (at 81x81 mm, almost no bigger than a light or bell push button)
Readout-protected RFID communication between transponder and keypad reader with high security standard (Mifare Desfire EV1) possible; also compatible with Mifare Classic
Immediate, clear feedback / the system status is indicated by coloured status LED and clear signal tones
Outdoor keypad reader acts as an extension for the indoor control panel to which it is connected (data/signal transmission, power supply)
Tamper-proof connection to the indoor operating unit (OSDP security standard: secured connection, highly encrypted with AES128), system logic not accessible from outside
Flexible mounting on or in the façade (exposed/concealed), simple installation/cabling
IP54 housing for outdoor use

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Certifications:	compliant to EN 50131-1
Colour:	Anthracite / silver
Connections:	RS485-BUS (OSDP) to be connected to BUBE60020
DC voltage supply:	8 - 30 V
Depth:	13,3 mm
Dimensions:	(WxHxD) 81 x 81 x 13,3 (flush-mount) or 42,1 (surface-mount) mm
Gross weight:	0,104 kg
Height:	81 mm
Housing material:	plastic
IP protection class:	54

Installation location:	flush-mounted (optional surface-mounted incl. Item: AZZU10080)
Max. operating temperature:	60 °C
Min. operating temperature:	-25 °C
Net weight:	0,082 kg
Power consumption:	140 mA
Reader type:	Mifare DESfire EV1/EV2, Mifare Classic (optional)
Sabotage monitoring:	Yes
Status display:	Yes
Width:	81 mm
