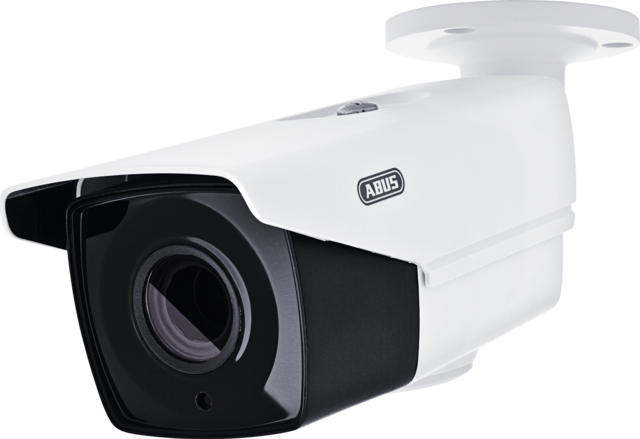

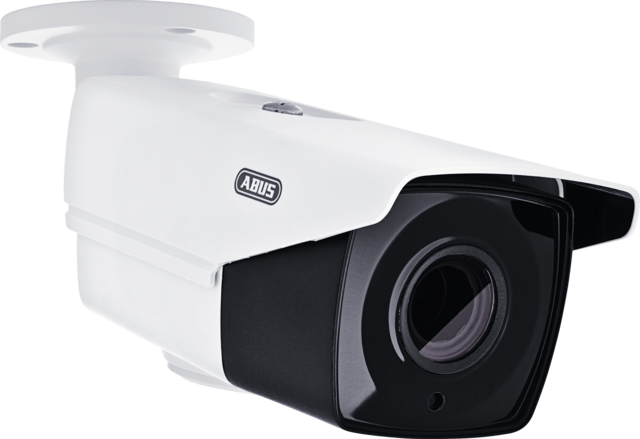

    Analog HD Tube 2 MPx (1080p, 2.8 mm - 12 mm)

    Clear full HD images via analogue cable. Flexible 24/7 surveillance of commercial properties with True WDR and motorised zoom. Ideal for renewing analogue systems thanks to maximum compatibility (4-in-1 video output).

    Description


    ABUS Analogue HD: clear images via coaxial cable
    The Analogue HD Tube 2 MPx camera is ideal for surveillance (CCTV) of extensive areas indoors and outdoors. Its high-quality image sensor delivers razor-sharp, smooth and detailed images. Its powerful True WDR function ensures uniform illumination of the surveillance area (foreground and background) in high-contrast lighting situations (e.g. backlighting).

    24/7 indoor and outdoor surveillance
    The automatic day/night switching of the modern IR LED technology ensures good image illumination in changing light conditions. The IP67 protection class makes the Analogue HD Tube robust in the face of wind and weather.

    Easy installation: Motorised zoom, wide range of holders
    The camera can be focused remotely via recorder and motorised zoom lens by just one person. The large selection of brackets offers flexibility for every installation location.

    Analogue HD technology: ideal for inexpensive retrofitting
    The use of existing cabling enables quick and easy retrofitting. Simply swap cameras and recorders and the "old" surveillance system becomes state of the art. Coaxial cables or 2-wire lines that have already been laid can continue to be used. Supported video standards: HD-TVI, HD-CVI, AHD and CBVS/FBAS.

    Note: The effective IR range depends on where the camera is used or installed.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • 2 MPx resolution: 1920 x 1080 @ 30 fps
    • True WDR effectively compensates for light/dark contrasts
    • Easy installation and focusing via remote access with the motorised zoom lens (2.7 – 13.5 mm)
    • Powerful IR LED technology for improved illumination up to 40 m at night
    • Weatherproof (IP67) for outdoor use
    • 4-in-1 video output (switchable TVI / AHD / CVI / CVBS)
    • Perfect for retrofitting: Transmission using conventional and existing CCTV infrastructure, such as coaxial or 2-wire cables
    • Cable length of up to 500 m possible without loss

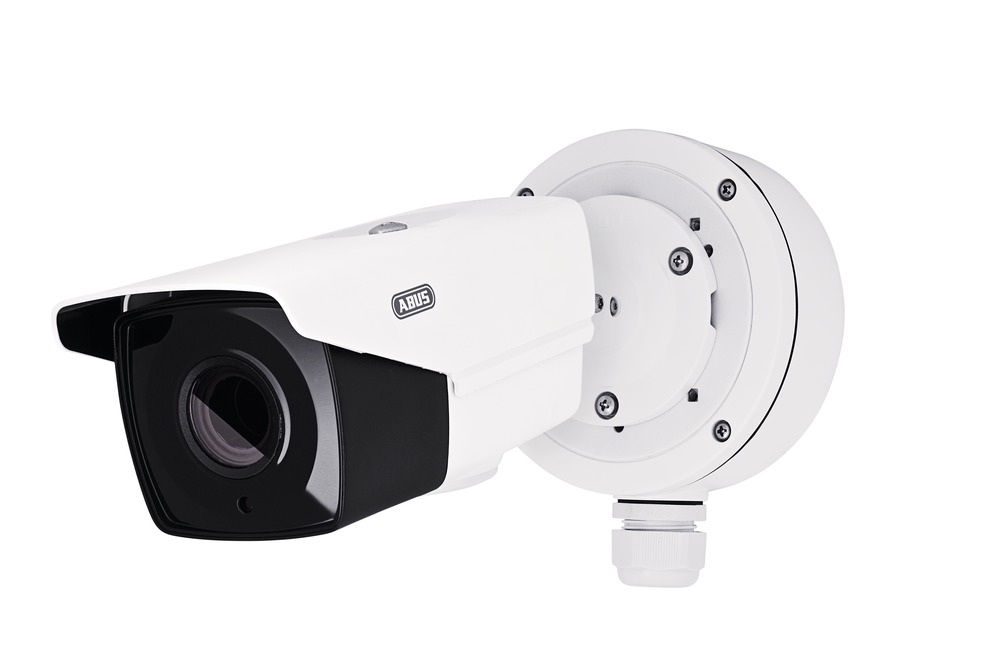

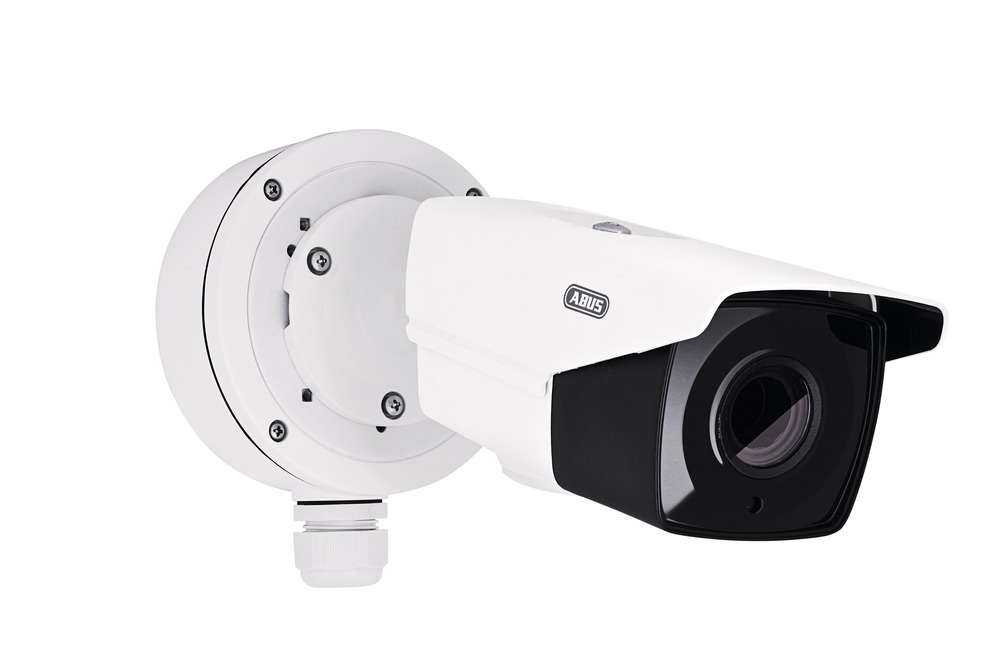

    • Wide variety of holders for straightforward, cost-efficient installation

    Downloads

    General downloads:

    Additional information:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Analogue Tube Camera
    Analogue Tube Camera
    Analogue Tube Camera
    Analogue Tube Camera
    Specifications
    AC power supply: 24 V +/-25 % V
    Amplifier control: AGC, 4 level
    Aperture at minimum illumination (color): 1.2
    Application purpose: General surveillance
    Backlight compensation: True WDR
    Camera outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS)
    Camera type: Tube
    Colour: white
    Compatible with Secvest: No
    Compatible with wAppLoxx: No
    Connections: 1 x BNC (HD-TVI), 1 x BNC (FBAS), 1 x DC/AC (2-Pin)
    Construction type of device: Tube
    Current consumption: 750 mA
    DC power supply: 12 V +/-25 % V
    Day/night switching: Electromechanical IR cut filter
    Digital zoom: Yes
    Dimensions: (LxWxH) 270x92x89 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/50 – 1/50000 s
    Focal length: 2.8 – 12 mm
    Height: 89 mm
    Horizontal viewing angle: 32.1 – 103.0 °
    Housing material: Metal
    IR LEDs: Yes
    IR range (up to): 40 m
    Image integration: 2x - 16x
    Image optimization: WDR, BLC, ATW, DNR
    Image sensor: 1/3" Progressive Scan CMOS
    Length: 270 mm
    Lens: Motor-Zoom, Autofocus
    Lens control: AI
    Lens mount: 14 mm
    Max. Air humidity: 90 %
    Max. Operating temperature: 60 °C
    Max. Resolution @ frame rate: 1080p @ 25 frames/s (50Hz)/1080p @ 30 frames/s (60Hz)
    Microphone: No
    Min. operating temperature: -40 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.1 lx
    Minimum lighting (B/W): 0.01 lx
    Net weight: 0.79 kg
    Noise suppression: 3D DNR
    Optical zoom: 4.2 x
    PSTI conformity needed: No
    Pixels (effective): 1920 x 1080
    Power consumption: 9 W
    Privacy zones: 8
    Product group: Camera
    Protection class IP: 67
    Radio functions: Motion Detection, Tripwire Detection and Intrusion Detection via DVR
    Resolution: 2MPx
    Resolution modes: 1920 x 1080
    Video channels HD-TVI: 1
    Video system: HD-TVI
    WEEE group: 09
    White balance: ATW, manual
    width: 92 mm
