32-Channel Network Video Recorder (NVR)

The ABUS NVR records 32 video streams steadily and in consistent quality. Operation is user-friendly and as a scalable recording solution, the NVR can be integrated into any project.

Description

Stream, operate and record up to 32 cameras
Setting up the cameras in the recorder is quick and safe thanks to the intuitive installation wizard. The clear menu allows for easy and quick programming. All ABUS cameras are integrated by protocol. The front flap on the recorder also makes hard drive installation effortless and time-saving.

Free choice of operation
The local menu for the live view is clearly laid out and self-explanatory. The recorder can also be accessed via a web browser, ABUS CMS software or app.

ABUS Link Station
The ABUS NVRs support the ABUS Link Station service. This allows for easy setup in the app. The NVR can be accessed from the Internet without the need for complex port forwarding. The service also offers a solution if only one IPv6 Internet address is available at the location.

Efficiency in everyday life
Fast and secure access control via the connectable ABUS license plate recognition camera. A lot of time can be saved in the event of an incident: The integrated object recognition, face recognition with single image capture or people search based on a facial image enable structured and efficient searching.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners
This product is compatible with the ABUS Link Station App.
This product is compatible with the ABUS Link Station App.
Awards & Partners

Product advantages

  • Live view and recording from up to 32 IP cameras @ 8 MPx (4K)
  • High-performance network data throughput with up to 576 Mbit/s (320 Mbit/s in / 256 Mbit/s out)
  • Simple local operation on the device, via web browser, ABUS CMS software or app
  • VCA function for precise detection and differentiation of people and vehicles in real time
  • Manual or controlled recording according to schedule, motion detection, alarm input or VCA
  • Recording on up to 8 SATA hard drives
  • Face recognition and detection with single image capture for efficient event search in the video stream
  • Search for people for rapid clarification in the event of an incident with facial image
  • Effortless and time-saving installation of the hard drives via the flap on the front

Downloads

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
AC voltage supply: 100 V
AHD video channels: 0
Alarm inputs (NO/NC): 16
Alarming: Acoustic warning signal, OSD signal, email, CMS, alarm output, app push
Analogue video channels: 0
Audio: Line In: 1 x Cinch (2.0 V s-s, 1000 Ω) – for network transmission only, Audio Out: 2 x Cinch (1000 Ω)
Audio compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 / PCM
Battery - GRS type: CR1220
Battery - quantity: 1
Compatible with ABUS Link Station: Yes
Compatible with Secoris: No
Compatible with wAppLoxx Pro: No

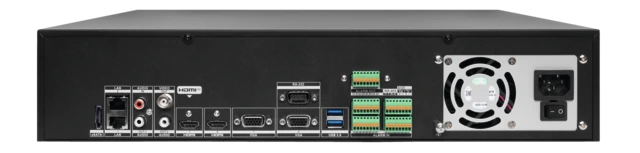

Connections: 2 x HDMI, 2 x VGA, 2 x RJ45 LAN, 1 x audio input (Cinch), 2 x audio output (Cinch), 2 x USB 3.0, 1 x USB 2.0, 1 x BNC output, 1 x DC input, 16 x alarm input, 9 x alarm output, 1 x RS-485, 1 x eSATA
Control: USB mouse, IP network via Internet browser/ABUS CMS
DDNS: Yes
Dimensions: 450 x 465 x 95 mm
Event memory: Yes
Gross weight: 9,5 kg
HD-CVI video channels: 0
HD-SDI video channels: 0
HD-TVI video channels: 0
HDMI Out: Yes
Height: 95 mm
Housing material: metal
Hybrid-capable: No
IP video channels: 32
Installation type: Table, 19 inch rack (Note: fan integrated in recorder)
Length: 465 mm
Loi Sarkozy compliant (only valid for FR): Yes
Max. humidity: 90 %
Max. operating temperature: 55 °C
Min. display resolution: 1024 x 768 Pixel
Min. operating temperature: -10 °C
Mobile access: ABUS Link Station Lite / Pro (Apple iOS & Android)
Monitor outputs: 2 x VGA, 2 x HDMI
Multi-monitor function: Yes
NTP: Yes
Net weight: 6,5 kg
Network access: 2 x RJ45 10/100 /1000 Mbps
Network cameras: ABUS network cameras, 3rd party (abus.com), RTSP, Open Network Video
Network functions: Live view, playback, data export, settings
Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, ABUS Server, NTP, RTSP, SMTP, SNMP, HTTP, HTTPS
Number of HDDs: 8
Number of channels: 32
Number of users: 32
OSD language: DE, EN, FR, NL, DK, IT, ES, SE, PL
Other functions: 32 channel motion detection or 4 channel VCA or 4 channel face detection, 8 channel face comparison, VCA (intrusion detection, tripwire, enter region, leave region)
PSTI conformity given: Yes
PSTI conformity required: Yes
PTZ control: Over IP network
Performance decoding (local live view & playback): AI in NVR off: max. 64 MPx, AI over NVR: max. 40 MPx
Power consumption: 10.000 mA
Power consumption incl. HDD: 70 W
Pre/post alarm memory: Yes (pre-alarm depends on resolution and bitrate, post-alarm (5 - 600 sec.)
Product security updates at least until: 2026-08-01
RAID: Yes (Raid 0, 1, 5, 6, 10)
RS-485 interface: Yes
Recording modes: Manual, Schedule, Motion Detection, Alarm Input, VCA
Recording resolution @ frame rate per camera: 32 MPx, 24 MPx, 12 MPx, 8 MPx, 6 MPx, 5 MPx, 4 MPx, 3 MPx, 1080p, 720p, VGA @ 25 fps
Relay output: 9 (load capacity: 12 V DC/1 A)
Resolution HDMI output: 4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60 Hz, 1024x768/60 Hz
Resolution VGA output: 1920x1080p/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Search modes: Event, Date & Time, Smart Search, VCA, Face
Simultaneous network access: 128 camera connections
Storage: 1 x USB 2.0, 2 x USB 3.0
Storage medium: 8 x SATA HDD, 1 x eSATA (up to 16 TB per HDD)
Technology: IP
Total frame rate: 800 fps
Total network throughput (input/output): 576 MBit/s (320 MBits/256 MBits)
Total video channels: 32
User levels: 3
Video Content Analysis (VCA): Yes
Video compression: H.264, H.265 (incl. Dynamic GOP)
Views: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 32 / 36
Web server: Yes
Width: 450 mm
