    Door cylinder D10PS

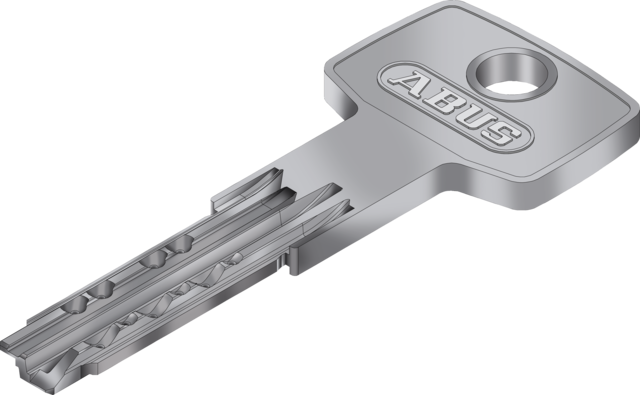

    Key

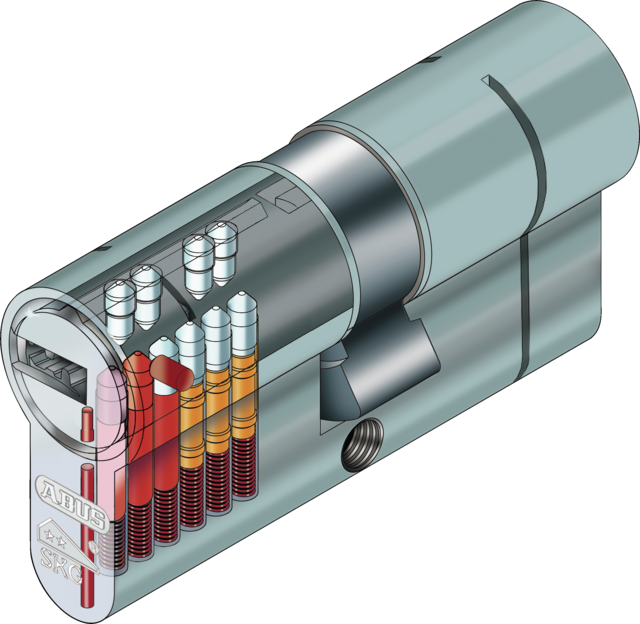

    Schematic representation

    D10PS

    • Security Level 7/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
    All variants for D10PS

    Technologies

    • Manufactured according to DIN EN 1303, DIN18252, ISO 9001:2015
    • With emergency function: can be locked from both sides, even if the key is in the lock inside (does not apply to half cylinders, as these can only be locked from the outside)
    • Pre-snap feature (predetermined breaking point)
    • 10 locking elements in 2 independent rows of pins
    • Anti-drill protection by hardened steel pins
    • Anti-picking pins
    • Dimple / Reversible key, no sharp edges and can be inserted either way up
    • Code Card: additional cylinders and spare keys can be produced according to their respective code number
    • with 5 coded keys
    • ABUS Global Protection Standard (GPS) 7

    Operation and use

    • Main entrance doors, apartment doors

    Variants

    • Finishes: Nickel Pearl, high-quality matt nickel-plated surface (NP), matt brass finish (MM)
    • Double, half and knob cylinders

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications

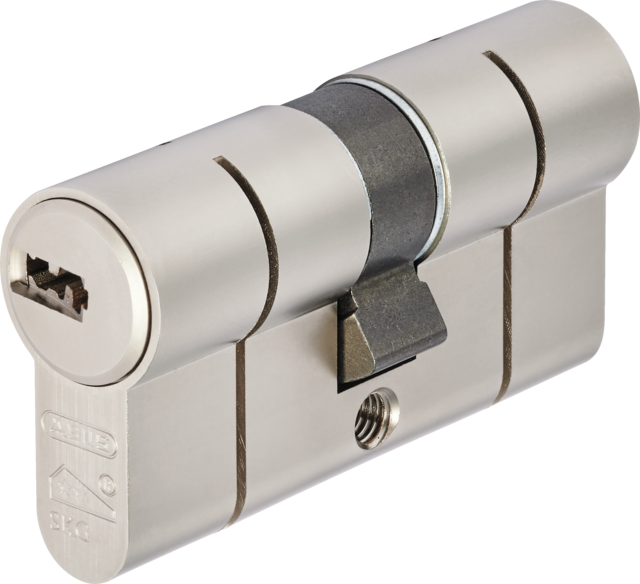

    type of cylinder: Double cylinder
    colour: nickel pearl
    emergency feature: Yes
    fire resistance doors: No

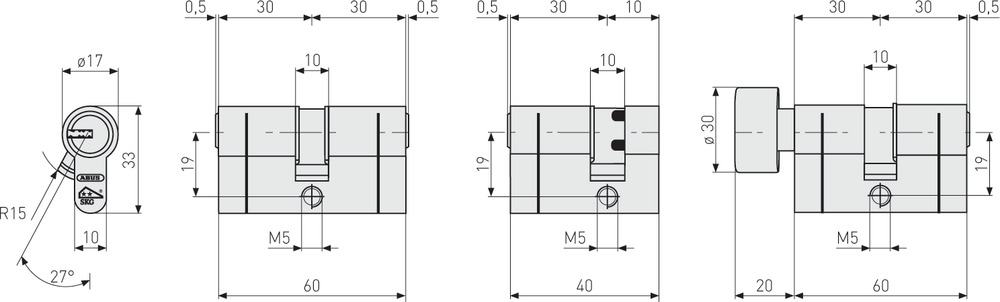

    Design: Technical drawing
    Technical drawing
    Security card: No
    reversable key: Yes
    Drill protection: Yes
    Security Level Home Security: 7
