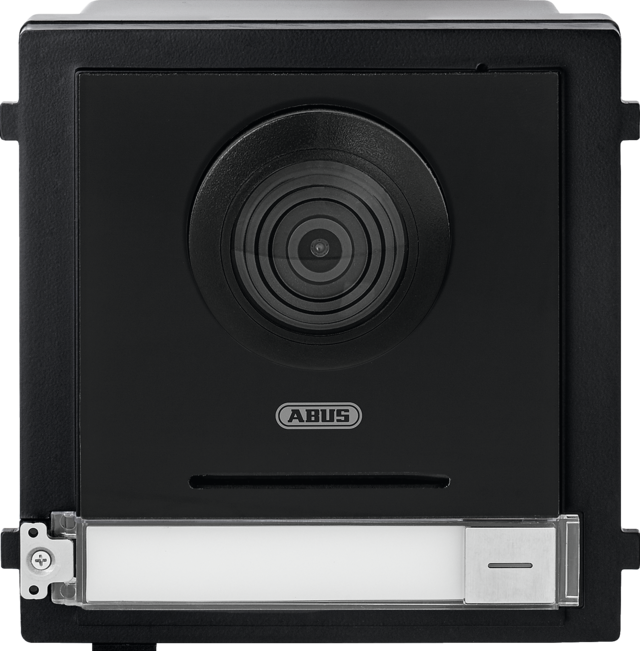

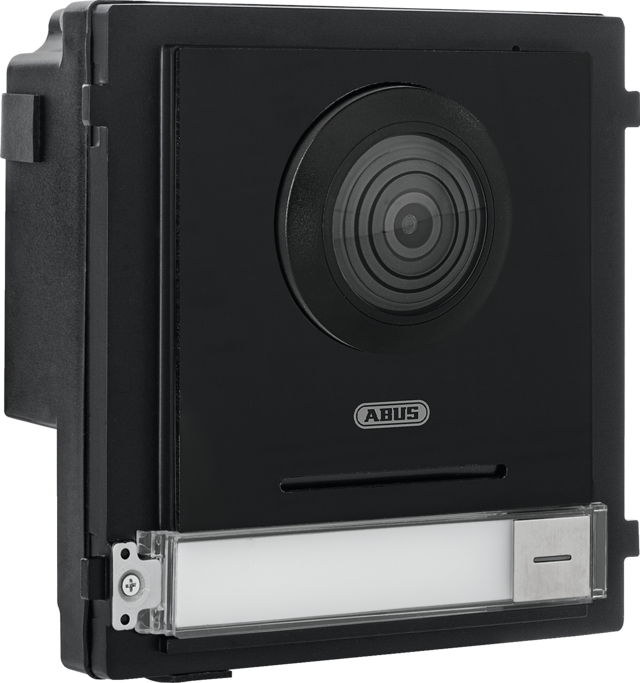

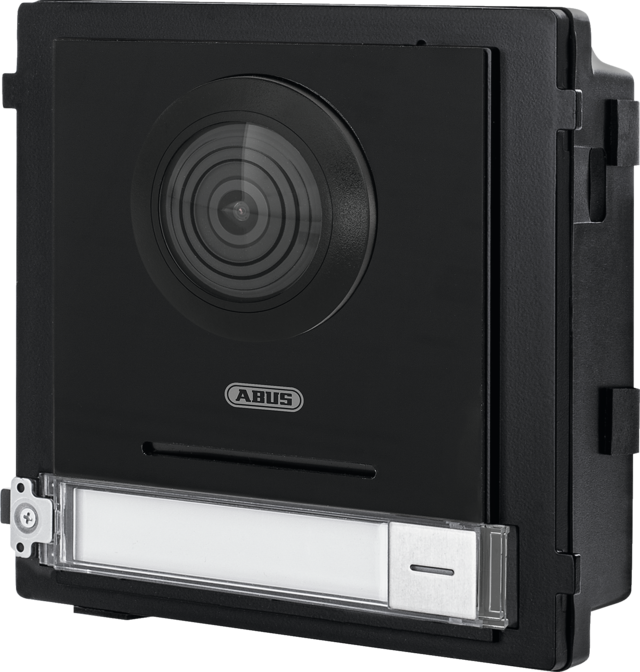

    Moduvis Door Intercom System Video Module
    Moduvis Door Intercom System Video Module

    2-wire video module for door intercom

    Description


    See people in front of the door, speak to them, open the door. Easy to install, modularly adaptable to any building and the individual requirements of users.

    The optimum video intercom system
    The video module is the central unit of the ModuVis system. With camera, microphone and loudspeaker for intercom function and bell button, it forms the basic configuration for an intercom station with 1 bell. It transmits speech clearly, distinctly and without distortion. The integrated 2-megapixel camera provides an overview of the entrance area when the doorbell is rung – day and night thanks to IR LEDs. An electronic door opener (door buzzer) is connected to the relay input/output.

    Convenient operation: monitor or app
    The user operates the ModuVis system (video module, other modules) on the 7" or 10” monitor or on the smartphone/tablet via the ABUS Link Station app.

    2-wire installation
    Communication between the 2-wire video module TVHS21010, monitor and other modules takes place via a 2-wire distributor (TVHS21310). IP/PoE variant: see TVHS20001.

    Totally modular, extensive expansion capability
    A clear advantage: Depending on the number of flats and local requirements, additional modules can be simply added to the system. Up to 49 bells are possible – and one monitor is integrated per party. Added security: up to 16 IP cameras can be integrated for video surveillance. Whichever variant of video module and monitor (2-wire or IP/PoE/Wi-Fi) is selected, the systems are compatible with each other.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Video Module for Door Intercom System

    Product advantages

    • 2-wire video module for ModuVis door intercom system as basic configuration for one intercom station (1 bell), can be expanded to up to 49 bells with additional modules
    • Push alarm to mobile device via ABUS Link Station app
    • Audio, video and voltage via 2-wire connection
    • Further relay inputs/outputs e.g. door opener (door buzzer)
    • Weather-protected with IP65, can be flexibly installed using a mounting frame (surface-/flush-mounted)

    Downloads

    General downloads:

    Declarations of conformity:

    Additional information:

    Software:
    Firmware:

    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Video Module for Door Intercom System
    Video Module for Door Intercom System
    Specifications
    Alarm output: 2 (2A@30VDC / 0.5A@125AC)
    Alarm output (NO/NC): 4
    Audio: 2-Way Audio
    Colour: black
    Connectable devices: TVHS20020, TVHS20030, TVHS20040, TVHS20340, TVHS30330
    Connections: 1 x 2-Pin, 4 x alarm input, 2 x alarm output
    DC power supply: over TVHS21310 V
    Dimensions: 98 × 99.8 × 43.9 mm
    Frame rate: 25 fps
    Height: 99.8 mm
    Horizontal viewing angle: 145 °
    IR LEDs: Yes
    Image optimization: BLC, DNR, WDR
    Length: 43.9 mm
    Lens: Fix
    Max. Air humidity: 0.95 %
    Max. Operating temperature: 60 °C
    Max. Resolution @ frame rate: 1.920 x 1.080 @ 25 fps
    Microphone: Yes
    Min. operating temperature: -40 °C
    Net weight: 0.4 kg
    Network camera protocols: TCP/IP, RTSP
    PSTI conformity given: Yes
    PSTI conformity needed: Yes
    Power consumption: 10 W
    Product group: Video
    Protection class IP: 65
    Resolution: 2 MP
    Resolution modes: Stream 1: 1.920 x 1.080 @ 25 fps, Stream 2: 720 x 480 @ 25 fps
    Tamper monitoring: Yes
    Vertical angle of view: 82 °
    Video compression: Stream 1: H.264, Stream 2: H.264
    WEEE group: 09
    width: 98 mm
