    Touch Monitor for Door Intercom System
    Touch Monitor for Door Intercom System

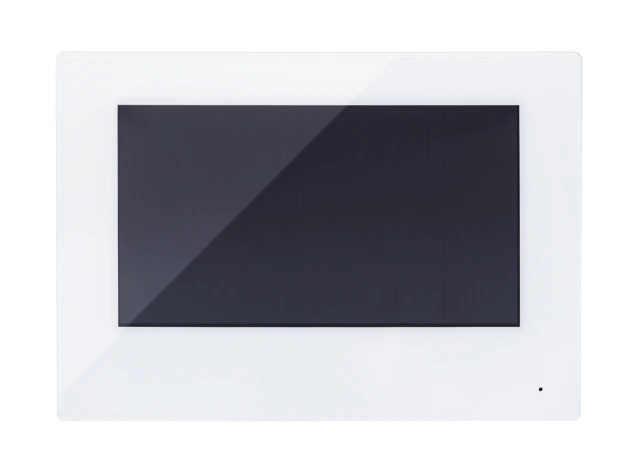

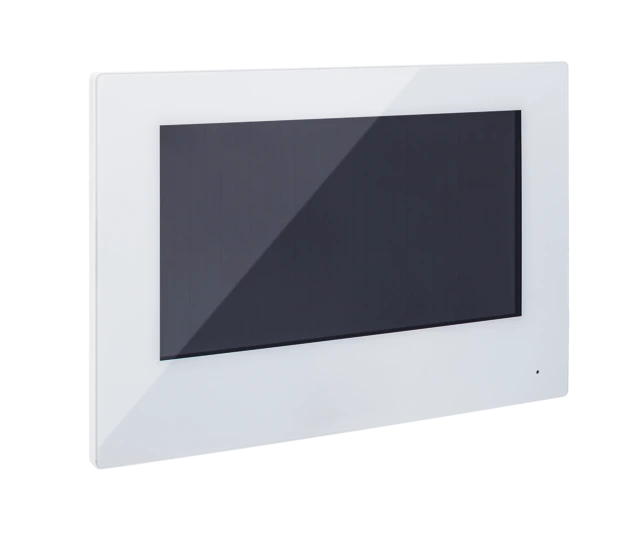

    7" Touch Monitor white, 2-wire for door intercom

    Description

    TOTAL MODULAR: THE VIDEO INTERCOM SYSTEM

    See people in front of the door, talk to them, open the door. Easy to install, modularly adaptable to any building - and easy to operate on the monitor.

    See everything, intercom, just open the door

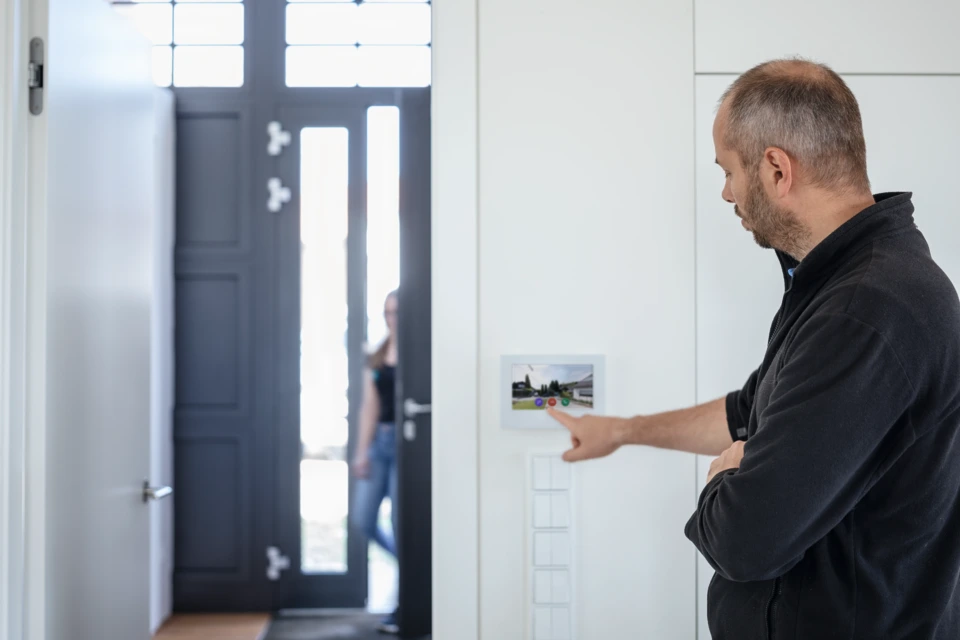

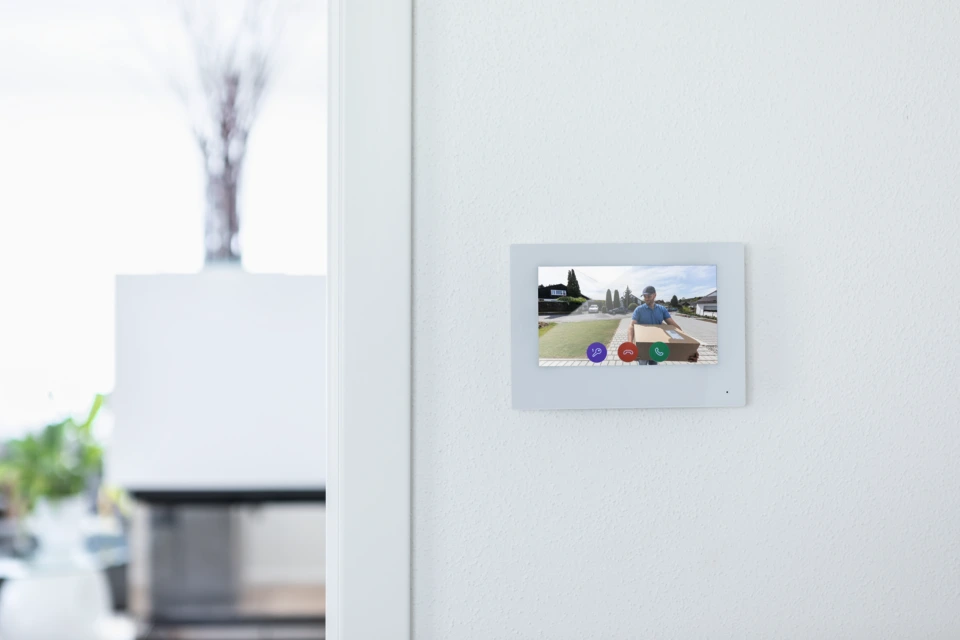

    The 7 touch monitor is the indoor station for operating the ModuVis door intercom. It displays the live pictures of the video module (and other cameras) and allows intercom in high speech quality. The door is opened by touch - via the door opener (door buzzer) connected to the video module. The monitor has an internal memory for recording scenes.

    Operating convenience local & on the road: via monitor & App
    Operation is either via the stationary touch monitor or mobile on the smartphone/tablet using ABUS Link Station App.

    2-wire installation
    Communication between the 2-wire monitor, video module and other modules is via a 2-wire distributor (converter unit). IP/PoE/WLAN variant: see TVHS20200.

    Totally modular, extensively expandable
    A clear advantage: Depending on requirements, the ModuVis system can be used to create up to 49 flats - with one monitor per flat. The added security: Up to 16 IP cameras can be integrated for video surveillance and displayed on the monitor. Whichever variant of monitor and video module (2-wire or IP/PoE/WLAN) is selected - the systems are compatible with each other.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Touch Monitor for Door Intercom System

    Product advantages

    • Indoor station for the FaceXess/ModuVis door intercom system
    • Simple operation and communication in very good voice and picture quality within the door intercom system
    • Live image display of the video module or of up to 16 network cameras (IP/WLAN)
    • Intercom and react (e.g. opening the door) when someone rings the bell
    • Recording on internal memory (expandable with MicroSD card)
    • Save and display pictures of missed people who rang the bell.
    • Connection for already existing door gong
    • Relay output for door opener of the flat floor door
    • Digital input for floor bell push button
    • Including wall bracket (mounting plate)

    Downloads

    General downloads:

    Declarations of conformity:

    Additional information:

    Software:
    Firmware:

    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Touch Monitor for Door Intercom System
    Touch Monitor for Door Intercom System
    Touch Monitor for Door Intercom System
    Touch Monitor for Door Intercom System
    Touch Monitor for Door Intercom System
    Touch Monitor for Door Intercom System
    Specifications
    Alarm output: 2 (2A@30VDC / 0.5A@125AC)
    Audio: Built-in microphone and speaker
    Colour: white
    Compatible with ABUS Link Station: Yes
    Connections: 1 x DC/Audio/Video, 1 x switching input, 2 x alarm output
    DC power supply: over TVHS21310 V
    Dimensions: 200 x 140 x 15 mm
    Display surface: Touch-Screen
    Display type: 7" Touchscreen Monitor
    Height: 140 mm
    Length: 15 mm
    Max. Air humidity: 90 %
    Max. Operating temperature: 55 °C
    Microphone: Yes
    Min. operating temperature: -10 °C
    Mobile access: Yes
    Net weight: 0.345 kg
    Network camera protocols: TCP/IP, RTSP
    PSTI conformity given: Yes
    PSTI conformity needed: Yes
    Power consumption: 6 W
    Product group: Video
    Resolution live view: 1.024 x 600 Pixel
    Screen diagonal: 7 in
    Storage medium: microSD card, 32 GB (option)
    WEEE group: 09
    width: 200 mm
