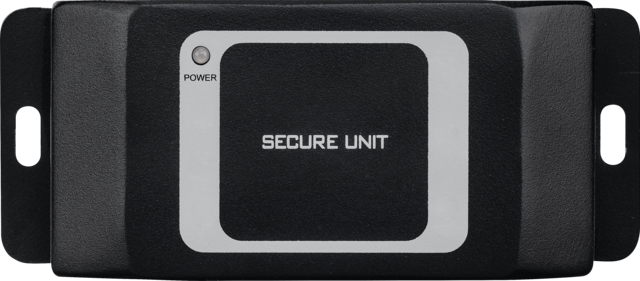

Security module


The security module is used as an additional manipulation protection for the ABUS door station to prevent any unauthorized opening of the door in the case of forceful door station tampering. Additionally, electronic locking cylinders or exit buttons can be integrated via the security module.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Security module for the ABUS door station
  • Manipulation protection for the door station
  • Interface for electric locks


We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Alarm output (NO/NC): Door Relay (2A 30VDC / 0.5A 125AC)
Connectible devices: TVHS20000, TVHS20010, TVHS20000S, TVHS20010S
Connections: 1 x RS-485
DC voltage supply: 12 V
Depth: 25 mm
Dimensions: (W x H x D) 115 x 48 x 25 mm
Height: 48 mm
Housing material: Metal
Inputs: 1 x Exit Button, 1 x Lock, 1 x Door Magnetic, 1 x Alarm Out
Installation type: wall mounting
Language of instructions: DE, GB, FR, NL, DK, IT
Language packing: DE, GB, FR, NL, DK, IT
Length: 25 mm
Max. humidity: 90 %
Max. operating temperature: 55 °C
Min. operating temperature: -30 °C
Net weight: 0,145 kg
Width: 115 mm
