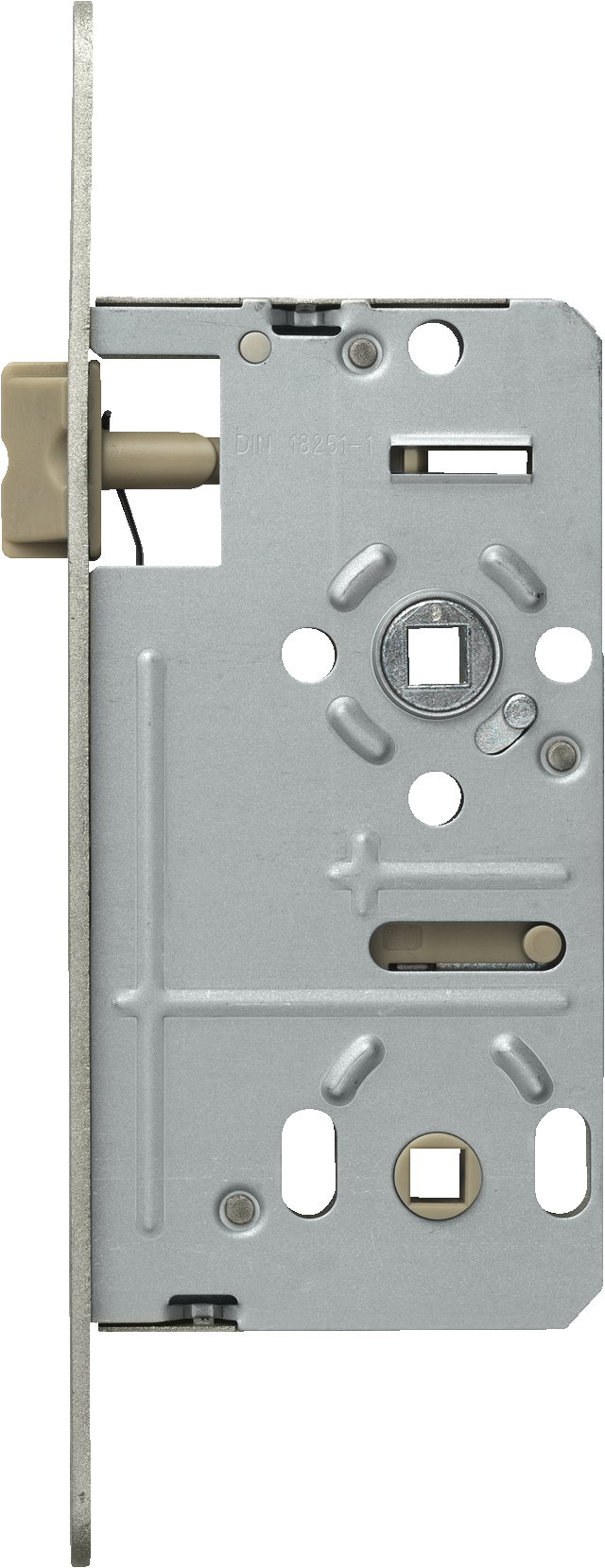

Mortice lock ES Bad universal S

ES BB universal

  • Security Level 3/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more securitySecurity Level 3/15 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
All variants for ES BB universal

Technologies

  • Universal DIN R / DIN L usability by easily adjusting the latch
  • Suitable for door cylinders according to DIN EN1303
  • High wear resistance through the use of high-quality materials
  • PZ: bolt and latch made of metal
  • BB and bathroom: bolt and latch made of high-quality plastic

Operation and use

  • The ESK PZ2 universal mortice lock features universal DIN R / L usability and a stable design.
  • Only the latch is actuated when the door is pulled shut
  • The bolt is activated when the door cylinder is locked
  • Forend 20 x 235 mm (round)
  • Suitable for:
  • -Interior doors (72 mm distance)
  • -Apartment entrance doors (72 mm distance)
  • -Bathroom and WC doors (78 mm distance)

Variants

  • Forend colour: silver

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
colour: silver
Distance measure: 78 mm
Depth lock case: 80 mm
Width forend: 20 mm
Lock control: free - occupied WC
Opening direction: left/right
Security Level Home Security: 3

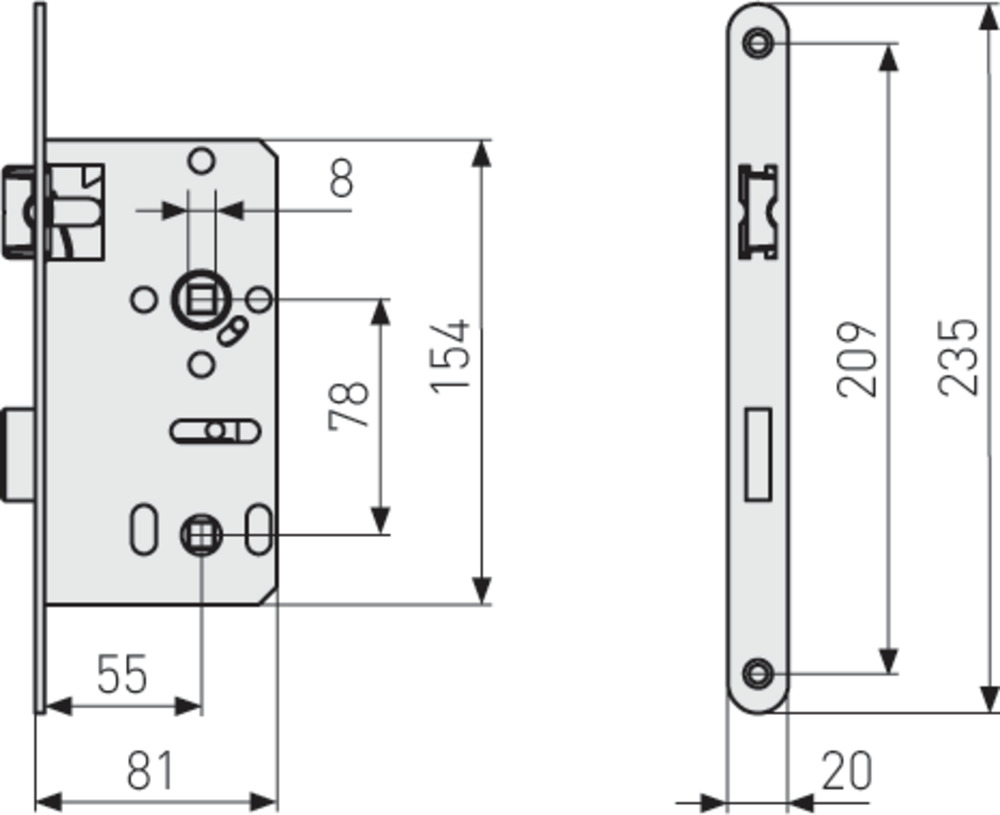

Design: Technical drawing
Technical drawing
Backset: 55 mm
Height lock case: 155 mm
Length forend: 235 mm
Forend shape: round
Door type: Bathroom door
Weight: 362 g
