HLZS814 round

Feel safe at home: With this door fitting you protect your house entrance and flat doors against burglars. The robust door hardware stands out especially against attempts to pull off the cylinder.

All variants for HLZS814 round

Description

HLZS814 round FEEL SECURE AT HOME

House front doors and flat doors become more secure with this door fitting.

Inadequately secured doors make your home an easy target for burglars. Common security vulnerability: Door cylinders that stick out too far and can be easily unscrewed. Secure your doors with a reliable door fitting. Make your butt and rebated doors more secure with this door hardware. It consists of several layers of steel and can withstand a tensile load of 2.5 tonnes. It excels especially against pulling off the cylinder. Extra long steel cams with hardened and tempered special M6 screws also increase protection against impact. A steel insert in the outer handle reliably prevents tearing. A secure complete package with VdS and DIN certificate for house front doors (HLZS) with a thickness of 52 to 72 millimetres and flat front doors (KLZS) with a thickness of 37 to 47 millimetres.

Awards & Partners

Test seal Gesamtverband der deutschen Versicherungswirtschaft – Cologne, Germany

Technologies

Certified according to DIN EN 1906 SK 2 and DIN 18 257 ES 1 ZA, VdS approved
Maximum resistance due to the layer construction: several bottom plates for maximum protection
High impact resistance: extra long steel cams, complete with tempered special screws (3 x M6)
An additional steel inset provides extra strong leverage/tear-off resistance
Integrated pulling protection with cylinder cover plus freely rotating special steel disc
Grip plate adjustable to DIN left and right doors
spacing: 92 mm, square bolt: 10 mm
U-lever shape

Operation and use

For main entrance doors (HLZS) and apartment doors (KLZS)
Suitable for rebated and flush doors, left and right opening
Grip plate outside, handle inside
Suitable for door thicknesses of 52 - 72 mm
Mounting material for deviating door thicknesses can be supplied

Variants

Finishes: F1 (alu anodized), F2 (silver anodized), stainless steel, brass, white
Alternatively available as a handle/handle set

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

colour:	F1: Aluminum Nature
Cylinder protrusion:	10-18 mm
Beidseitig Drücker:	No
pulling protection:	Yes
Weight:	1507 g

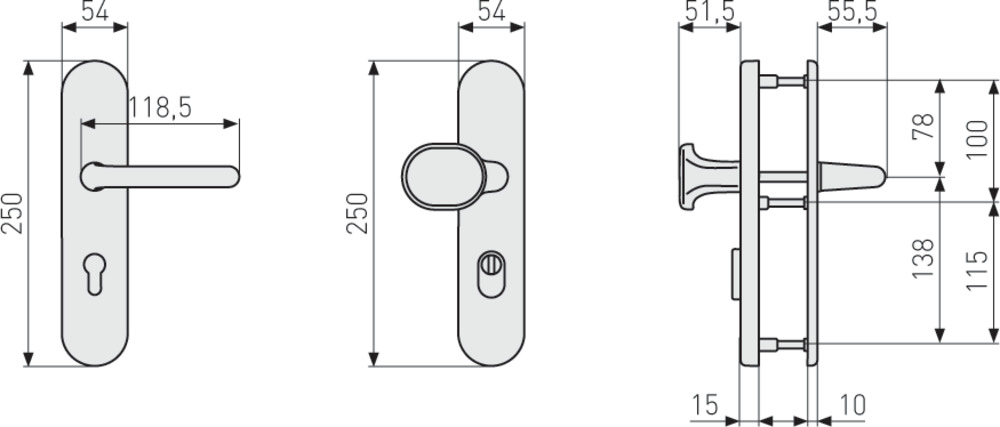

Design:	Technical drawing

Distance measure:	92 mm
Interchangeable fitting:	Yes
Door fitting for fire doors:	No
Door type:	Entry door
Security Level Home Security:	8
